Installation Time
(approx) 30 Minutes
Difficulty Level:
Simple installation for anyone.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Aeromotive VaporWorx Intelligent Relay Control (Universal; Some Adaptation May Be Required)
Item CC42219
Our Price
$127.30 each
Military, Medical & First Responders
$6.37 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Feature-Rich Upgrade to Relay-Controlled Fuel Pump
- Controls Negative Trigger Side of Standard Automotive Relay
- Uses Engine Tachometer Signal to Sense When to Operate
- Three-Second Initial Key-On Prime Cycle
- Energizes Fuel Pump Relay for Three Seconds at Key-On
- De-Energizes Fuel Pump Relay If Tachometer Signal Not Sensed
- Accident Safety Shuts Fuel Pump If Engine Shuts Down
- Manual Override Available by Grounding Wiring Harness Violet Wire
- Output Available to Control VaporWorx PWM Control System
- Compact Size Fits Almost Anywhere
- XLPE Wire and Sealed Delphi GT150 Connector Included
- Made in USA with UL94 Rated Components and Assembled by VaporWorx
- Fits Universal; Some Adaptation May Be Required
Description
Intelligent Fuel Pump Control. The Aeromotive VaporWorx Intelligent Relay Control is a safety and convenience device designed to intelligently manage electric fuel pumps in automotive systems. It operates by using the engine's tachometer signal as a trigger instead of simply the ignition switch, preventing uncontrolled fuel pumping when the engine is off, enhancing safety and performance, especially in carbureted or non-ECM controlled fuel pump setups. It benefits installations lacking modern ECM fuel system safeguards, including intercooler pump applications.
Construction and Appearance. This module features a compact and durable design measuring approximately 1-1/2" wide by 1-1/4" tall and deep, making it easy to fit into most engine compartments. It is constructed using UL94 rated components assembled in the USA by VaporWorx and comes equipped with 15 inches of XLPE insulated wiring for each circuit. Connectivity is ensured through a sealed genuine Delphi GT150 connector, with protective wire braid included for added longevity.
Installation. Installation is straightforward with no need for drilling, as it interfaces with the negative trigger side of a standard automotive relay. Its compact size facilitates mounting in constrained spaces while providing pre-wired connections for simpler integration into new or existing fuel pump relay systems.
Warranty. A one-year warranty from the date of purchase is provided, ensuring reliability and support for the product.
Application. This product fits universal applications and may require some adaptation depending on the specific vehicle or build. It is ideal for carburetor engines, non-ECM controlled electric fuel pumps, older Ford Racing Coyote crate engines lacking fuel system safety features, and air-to-liquid intercooler pump relay configurations.
Aeromotive 66705
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

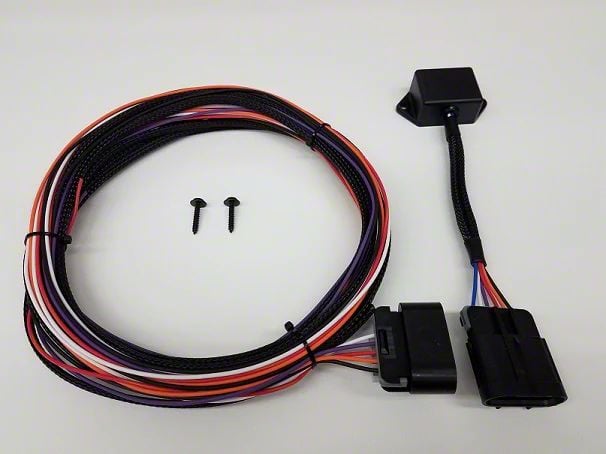

What's in the Box
- (1) Intelligent Relay Control Module
- (1) Pre-wired Delphi Sealed GT150 Connector
- (1) Fifteen Inches of Wire for Each Circuit
- (1) Wire Braid
