Aeromotive Stealth A1000 Race Fuel System with LS3 Fuel Rails (03-13 Corvette C5 & C6)Find parts that fit my vehicle
Item CV8348
Our Price
$2,747.51
Military, Medical & First Responders
$137.38 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Rated for EFI engines producing up to 1,000 flywheel hp forced induction or 1,300 flywheel hp naturally aspirated
- For Corvettes equipped with LS3 engine and/or equivalent intake
- Includes HD fuel pump wiring kit for limited duty racing applications
- Not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications
- Includes Stealth A1000 fuel pump designed to fit inside stock OEM Corvette tank and integrate with stock fuel-level sending unit and jet-siphon transfer pump
- Comes with 40-micron high flow filter, one-piece CNC Y-block, billet high-flow fuel rails, billet EFI pressure regulator, and high flow Orb port fittings
- Fuel pump electrical supply provided including HD fuel pump wiring kit for primarily racing with limited street driving
- Fuel lines and hose ends sold separately

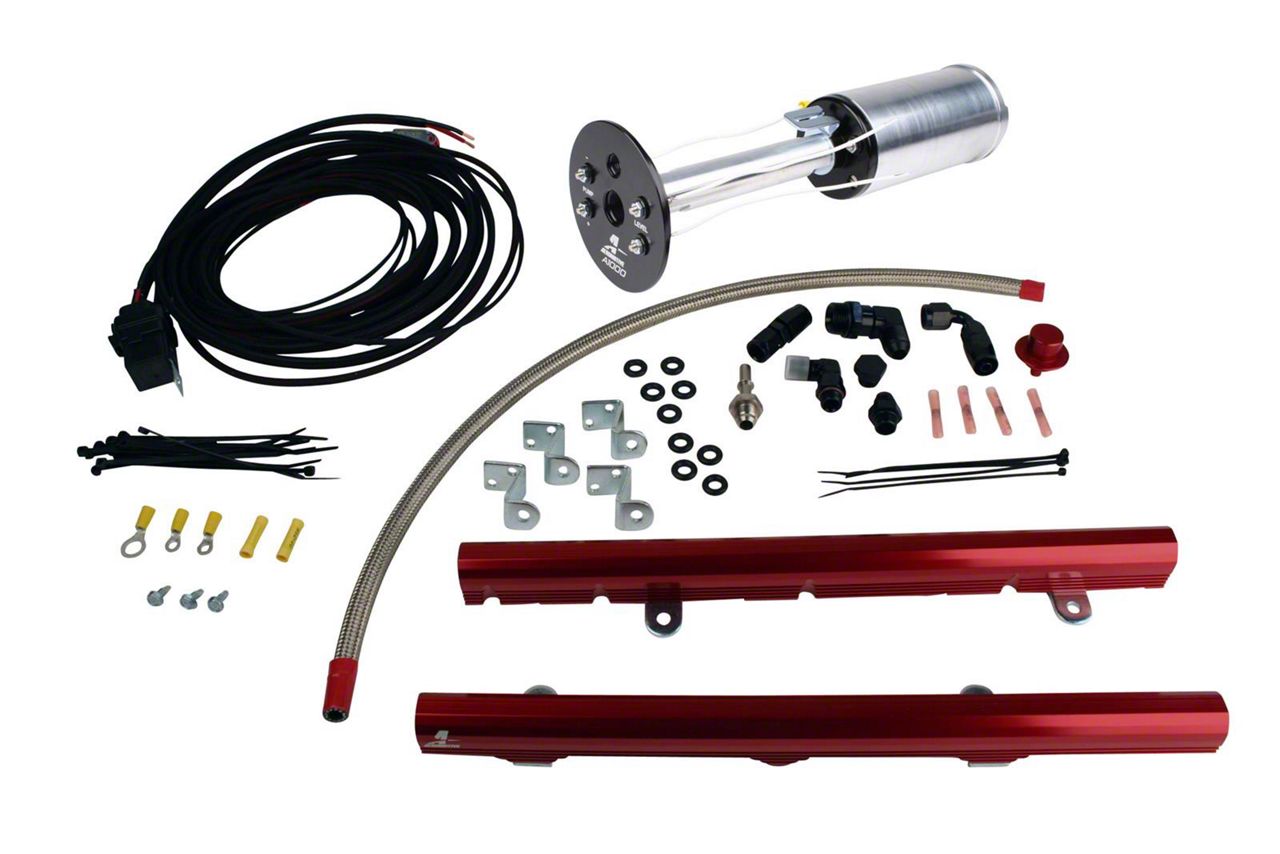

- Contains fuel rails, fuel pressure regulator, fuel pump assembly, fuel pump wiring kit, filter bracket, filter assembly, one-way check valve, various union and fittings, Y-block, and Orb-10 O-ring
- Fits 2003–2013 Corvette C5 & C6 models
Description
High-Performance Fuel System. The Aeromotive Stealth A1000 Race Fuel System with LS3 Fuel Rails is engineered to deliver reliable, high-capacity fuel delivery for Corvette engines producing up to 1,000 flywheel horsepower with forced induction or 1,300 horsepower naturally aspirated. Designed for track-focused builds, this system provides robust components that fit seamlessly within the OEM fuel tank and interface to ensure consistent and efficient fuel supply, which is crucial for maintaining engine performance and reliability under racing conditions.
Construction and Appearance. Constructed with precision-machined billet aluminum components—including billet high-flow fuel rails, a one-piece CNC-machined Y-block, and billet EFI pressure regulator—this system offers both durability and a high-quality finish. The stealth fuel pump resides within the OEM tank, integrating with existing fuel-level senders and transfer pumps to maintain a clean, factory-like appearance and optimized fuel flow. High-flow Orb port fittings and a 40-micron high-flow fuel filter complete the assembly, ensuring contaminant-free fuel delivery.
Installation. Installation is moderately difficult and designed to integrate directly with the OEM Corvette fuel tank without requiring drilling or significant modification. Detailed instructions are provided to facilitate a race-ready upgrade compatible with your vehicle’s existing hardware.
Warranty. This product carries a one-year limited warranty against defects in material or workmanship when purchased from authorized sellers.
Application. This race fuel system is specifically tailored for 2003 to 2013 Corvette models equipped with the LS3 engine or equivalent intake, covering the C5 and C6 platform years.
Aeromotive 17176
