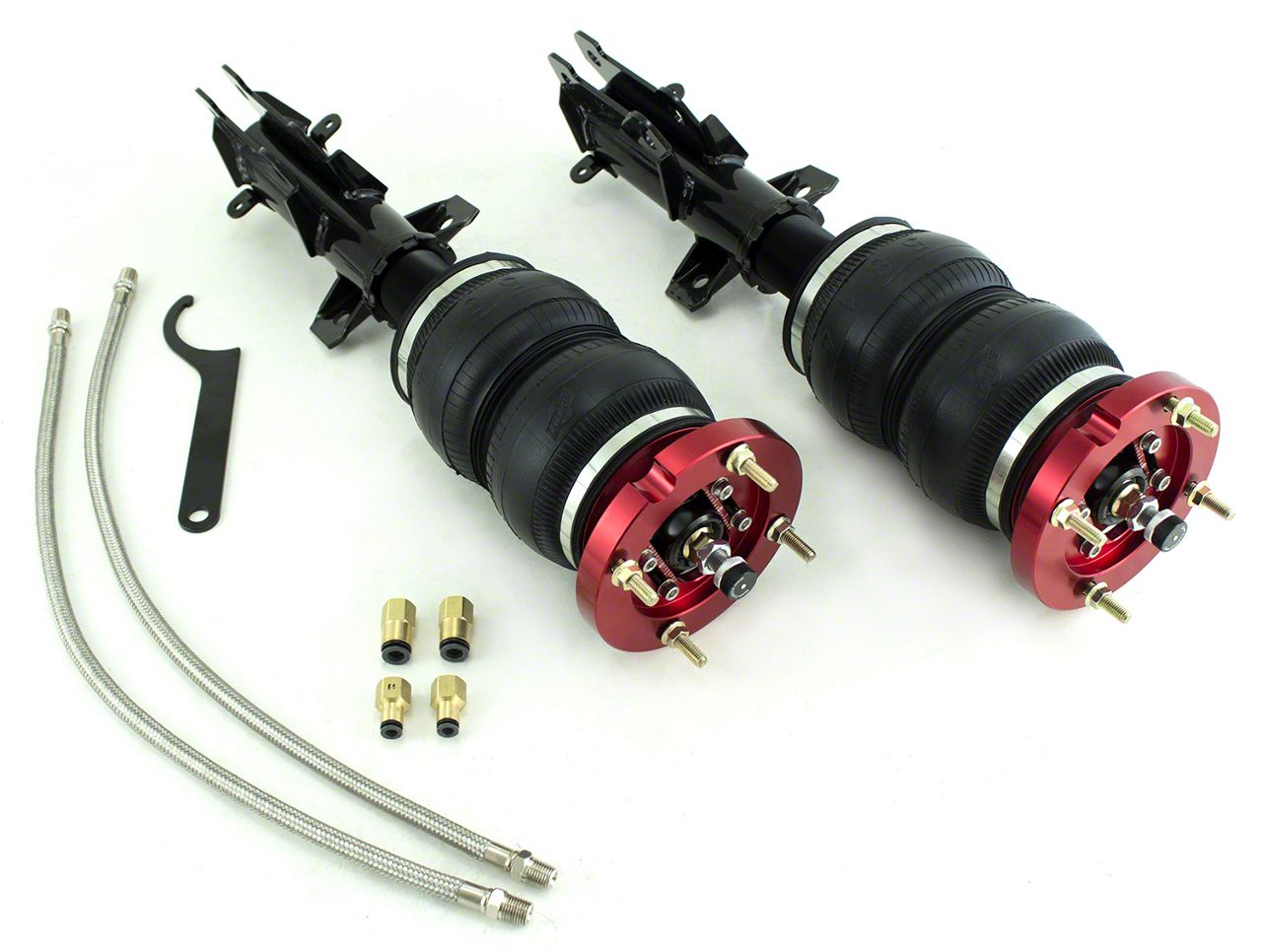

Air Lift 3H Complete Air Suspension Kit; 1/4-Inch Lines (05-14 Mustang)Find parts that fit my vehicle
Item 406900
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Air Suspension System With Digital Controller
- High-Performance 3H Height and Pressure Adjustable Air Suspension
- With 4.75-Inch Front and 4.20-Inch Rear Estimated Drops
- Facilitates Controlled and Smooth Ground Dynamics
- High-Performance Monotube Struts and Shocks
- Double Bellows, Progressive Rate Front Air Springs
- Progressive Rate Sleeve Rear Air Springs
- Threaded, Adjustable Strut Mounts and Camber Plates
- With Braided Stainless Steel Leader Air Hoses
- Bolt-On Installation With Mechanical Expertise Required
- Two-Year Warranty for the Suspension Kit (Purchased After 9/3/2021), Lifetime Warranty for the Air Management System
- Designed for All 2005-2014 Ford Mustang Models
Description
Bolder Confidence and Reinforced Stance. Transform your Mustang by installing the Air Lift Performance 3H Complete Air Suspension Kit; 1/4-Inch Line. This air suspension package significantly boosts your muscle car’s capabilities with controlled and smooth ground dynamics. It provides up to 4.75-inch front drop and 4.20-inch rear drop for reinforced stance, adjustable ride height, improved handling, and enhanced ride quality.
Optimum Damping Control. The monotube configuration of the struts and shocks, together with the precision-ground and triple chrome-plated piston rod facilitate superior damping capacity. The floating divider piston eliminates the mixing of the oil and nitrogen gas, thereby significantly reducing the shock fade. Additionally, with the 30 levels of damping adjustment, you can always find a setting to suit your preference, from soft to stiff for the ultimate response and roll control.
Excellent Suspension Control. The progressive rate air springs ensure that weight is properly distributed to all 4 tires for optimal braking and steering. They also significantly enhance the ride quality by absorbing road inputs, while maintaining high traction for better handling. Using these well-engineered components gives you the ability to adjust your ride height while keeping the lift capacity to return to stock height at the push of a button.
Innovative Air Management System. The all-new air management system from Air Lift Performance uses both height and pressure sensors to provide the most innovative air suspension control. It comes with 4 height sensors that give the system the ability to automatically adapt to changes in vehicle load. With the combination of pressure and height sensing technology, 3H can achieve the correct height without radical differences in pressure.
Digital Controller. The air management system comes with a 3H/3P digital controller with rubberized, responsive controllers and an easy-access USB connector. The integrated ECU manifold comes with a simple and streamlined wiring harness for an easy and clean install.
Professional Installation. This 3H Height and Pressure Adjustable Air Suspension Kit is intended for a bolt-on installation that requires mechanical expertise. The kit is fully-engineered to fit your vehicle with no modifications required.
Warranties. Air Lift Performance backs this 3H Height and Pressure Adjustable Air Suspension Kit with a 2-year limited warranty (if kit was purchased after 9/3/2021) that covers factory defects in workmanship and materials. The 3H Air Management System comes with a limited lifetime warranty. Some exclusions apply; please check the terms and conditions for full details.
Application. The Air Lift Performance 3H Complete Air Suspension Kit; 1/4-Inch Lines is intended for use on all 2005-2014 Ford Mustang models.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Pair Of Air-Over Shocks With 30-Level Damping Adjustment
- Braided Stainless Steel Leader Hoses
- Pair Of Progressive Rate, Tapered Sleeve Air Springs
- Quarter-Inch PTC Fittings
- 3H/3P Digital Controller
- Integrated Ecu + Manifold
- Advanced Electrical Wiring Harness
- Four Height Sensors With Wiring And Mounting Hardware
- Sixty Feet Of Quarter-Inch Air Line
- Auto-Draining Inline Water Filter
- All Wiring, Fuses, Hardware, Etc. Required For Installation
- Four-Gallon (5 Port) Lightweight Aluminum Air Tank In Raw Finish
- All Required Tank Fittings For Installation
- Viair 444C Air Compressor
- All Mounting Hardware
