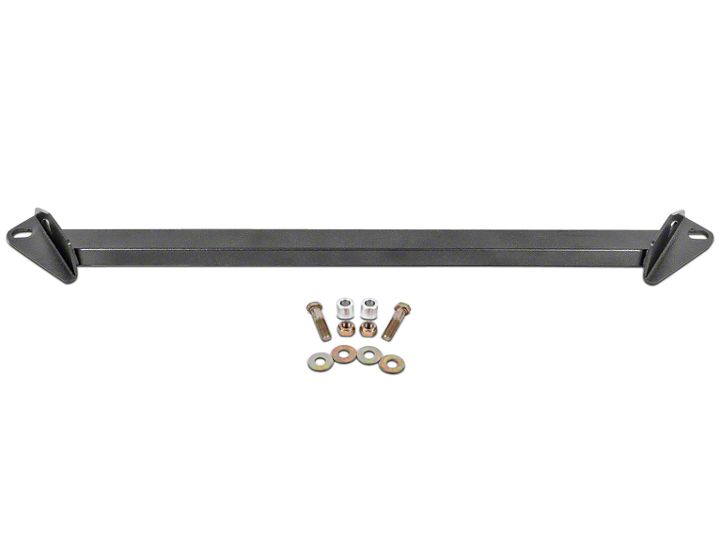

How to Install BMR 2-Point Front Subframe Chassis Brace - Hammertone on your Mustang

Tools Required
  • Sockets – 15/16”
  • Wrenches – 15/16”
  • Jack and jack stands
American Muscle
Shop Parts in this Guide

INSTALLATION:

1. Lift vehicle and support using jack stands under the frame rails.

2. Remove both front wheels and tires.

3. Insert the supplied spacers into the subframe  as shown in IMAGE 1. Using your finger or a  bent piece of wire, slide the spacer back to  the mounting hole taking care not to push it  too far.


4. Position the brace into place as shown in  IMAGE 2.

5. Place one of the provided 5/8” washers over  the 5/8” x 2.75” bolts. Insert the 5/8” bolts  (from the bottom) into the rear mounting  holes. Place another washer over the bolt then thread a lock nut onto the bolt. Duplicate for the  other side.


6. Tighten the front bolts first. Torque to 184 ft/lbs.

7. Tighten rear bolts to 100 ft/lbs using a 15/16” wrench and socket. (IMAGE 3)

8. Re-install wheels/tires and lower vehicle.
