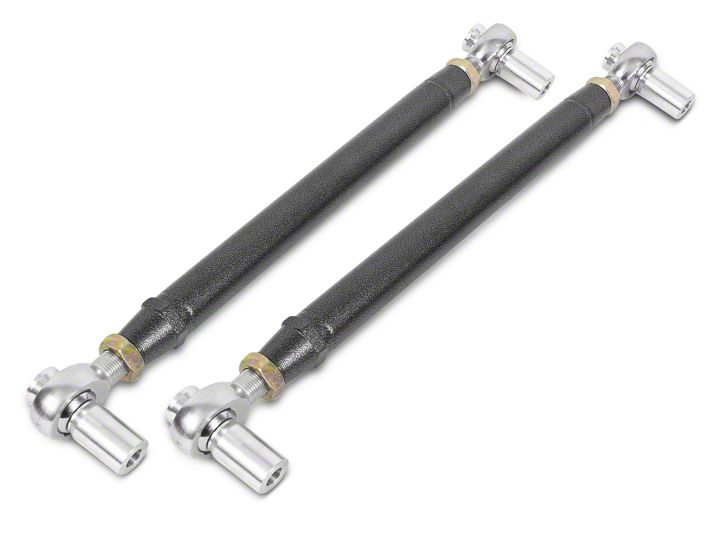

How to Install BMR Double Adjustable Rear Lower Control Arms - Rod Ends - Hammertone on your Mustang

Tools Required
  • Hydraulic jack and jack stands
  • Pry-bar
  • Sockets and wrenches – 13mm, 18mm, 21mm
View PDF Guide
American Muscle
Shop Parts in this Guide

INSTALLATION:

1. Lift vehicle and support with jack stands under the  frame rails.

2. For ease of access, remove both rear wheels/tires.

3. As shown in IMAGE 1, some exhausts may block accessibility to the lower control arm bolts in the frame rail. If this is the case, remove the exhaust.

4. Support the rear end with the jack, then remove the lower control arms one side at a time using an  18mm wrench and socket.

5. Adjust the BMR control  arms to the stock length  then install them with the  offset inward. Tighten the  mounting bolts to 83  ft/lbs.

6. Tighten jam-nuts using 1- 1/16” and 1-1/4”  wrenches.

7. Re-install exhaust, if  necessary.

8. Re-install wheels/tires  then lower vehicle.
