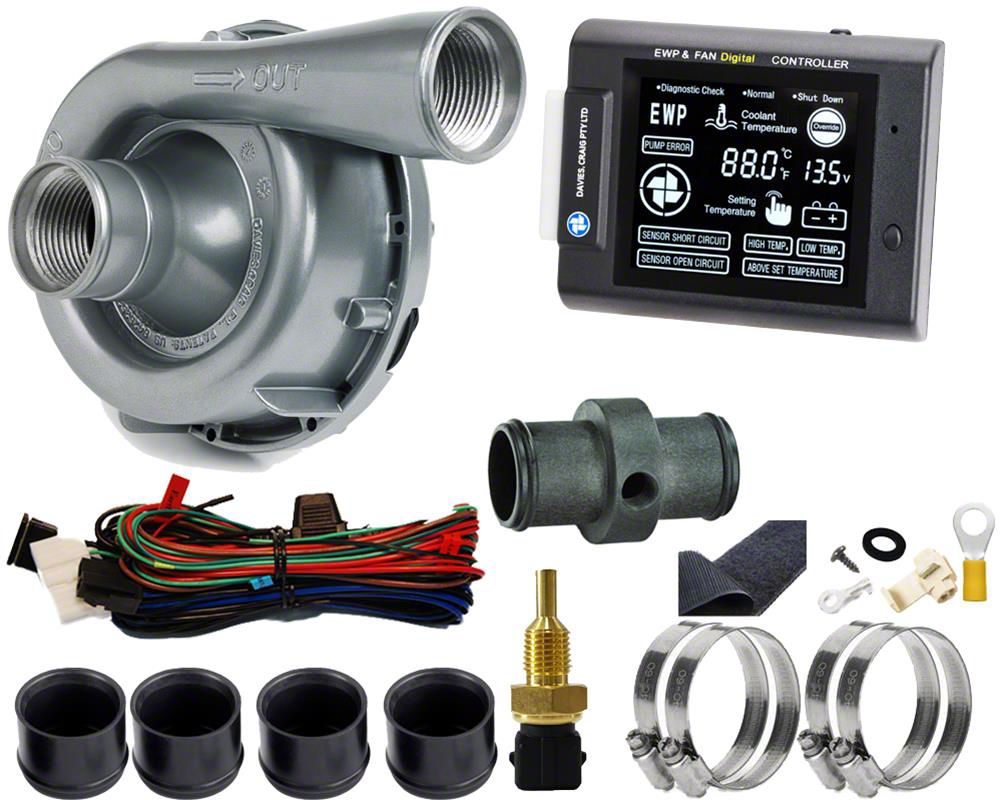

Davies Craig EWP150 Alloy Remote Electric Water Pump and Controller Combo Kit; 24-Volt (Universal; Some Adaptation May Be Required)
Item CC23258
Our Price
$509.99
Military, Medical & First Responders
$25.50 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Ewp150 Alloy 24 Volt Included _x000D_
- Ewp/Fan Digital Controller and Mounting Plate plus Bracket Included _x000D_
- Sensor Thermal - Coolant Temperature with ¼ Inch NPT Thread Included _x000D_
- Adaptor Nylon In Line 38mm with Two 1/4 Inch NPT Fittings Included _x000D_
- 1/4 Inch NPT Nylon Bung Included _x000D_
- Wiring Harness Included _x000D_
- Four Hose Clamps Included _x000D_
- One Self Tap Screw 8x3/8 BZ Included _x000D_
- One Blue 6mm Ring Terminal Included _x000D_
- Operating Voltage from 20V DC to 27V DC _x000D_
- Maximum Current Draw 5.5 Amps at 24V DC _x000D_
- Maximum Flow Rate of 162 Liters per Minute (42.8 US Gallons per Minute) at 24V DC _x000D_
- Operating Temperature Range from -40°C to 120°C _x000D_
- Clockwise Centrifugal Pump Design with Volute Chamber _x000D_
- Pump Weight is 1170 Grams (2.6 Lb) _x000D_
- Aluminium Powder Coated Pump Material _x000D_
- Burst Pressure Rated at 500 KPa (72.5 Psi) _x000D_
- Ceramic Face Seal _x000D_
- Not Self Priming _x000D_
- Fits Hose Sizes from 35 mm to 51 mm (1.38 to 2 Inches) _x000D_
- Inlet and Outlet Use -16AN ORB Fittings _x000D_
- Push-On Fitting Sizes are 38 mm without Sleeve, 44 mm with 3 mm Sleeve, and 51 mm with 6 mm Sleeve _x000D_
- Controller Voltage Range from 12V DC to 29V DC _x000D_
- LCD Display Size Approximately 64.6 mm by 55.6 mm _x000D_
- Controller Maximum Current 12 Amps _x000D_
- Warning Alarm for High and Low Temperature, Sensor Errors, Pump Errors, and Voltage Issues _x000D_
- Temperature Settings from 40°C to 110°C in Single Degree Increments _x000D_
- Memory Holds Set and Targeted Temperature _x000D_
- Fan Cut-In Temperature 3°C Above Target Temperature _x000D_
- Controller is PCB Based with Microprocessor _x000D_
- Sensor Type Thermistor in Housing _x000D_
- Controller Overrun Shutdown Occurs 10°C Below Set Temperature or After Three Minutes _x000D_
- Controller Weight is 100 Grams (3.5 Oz) _x000D_
- Pump Dimensions are Approximately 98 mm Length, 95 mm Width, 25 mm Depth _x000D_
- Includes Multiple Indicators for Temperature, Power, Pump, Fan, High and Low Temperature, Voltage, and Above Set Temperature with Alarm _x000D_
- Fits Universal; Some Adaptation May Be Required, Especially for Hose Modification and Mounting Requirements _x000D_
Description
Advanced Cooling Solution. The Davies Craig EWP150 Alloy Remote Electric Water Pump and Controller Combo Kit; 24-Volt is engineered to enhance engine cooling efficiency by remotely pumping coolant using a high-performance electric water pump. It is designed for high horsepower, turbocharged, supercharged, and highly stressed engines that generate excessive heat, ensuring optimal temperature regulation and engine longevity.
_x000D__x000D_Construction and Appearance. The pump features a durable powder-coated aluminium alloy housing and a ceramic face seal for longevity and reliability, with a compact and robust centrifugal pump design. The controller uses a printed circuit board with a microprocessor and a clear LCD screen for precise temperature monitoring and control, housed in a sturdy assembly with included mounting hardware.
_x000D__x000D_Installation. Installation requires moderate mechanical skills involving some hose modifications and secure mounting to prevent vibration. The kit includes all necessary fittings, brackets, and wiring for a complete do-it-yourself installation.
_x000D__x000D_Application. Fits universal; some adaptation may be required including modifications to radiator hoses and mounting approaches depending on vehicle configurations.
_x000D_Davies Craig DC-8971
