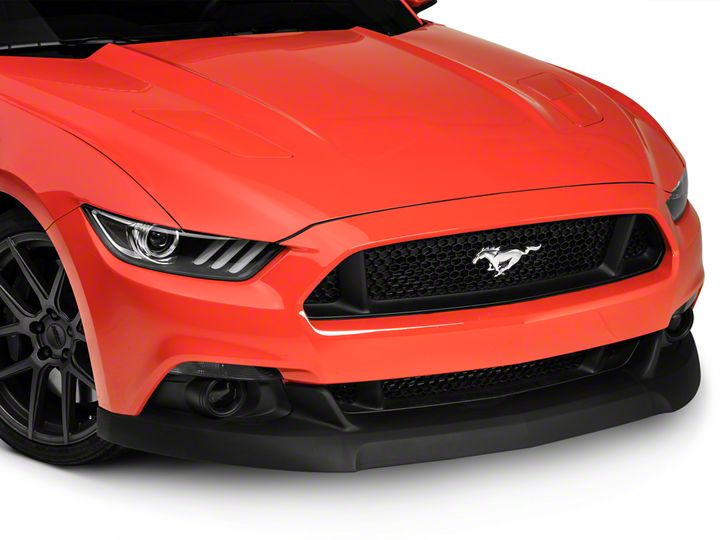

How to Install CDC Outlaw Chin Spoiler (15-17 GT, EcoBoost, V6) on your Ford Mustang

Installation Time

1 hours

Tools Required
  • Panel Removal (fork tool)
  • Razor Knife/Blade
American Muscle
Shop Parts in this Guide

*vehicles with Performance Pack Chin also need supplemental hardware kit #1511-6509-01


TEST FIT BEFORE PAINTING!!!


NOTE: This product is Injection Molded UV stable TPO. Install as is or if you prefer to paint to match, we recommend a Professional Automotive Paint Facility. Standard Fascia paint processes should be used. We recommend that a FLEX AGENT be added to the paint as well.


Note: READ instructions before starting installation!


Components:        CDC Part #

  • 1 - Outlaw Chin Spoiler  1511-2300-01
  • 1 – Roll 3M ¼” & ½” Acrylic foam tape 950035
  • 2 - Alcohol Packs 950006
  • 2 – Adhesion Promoter Packs 950007
  • 2 – Scrivets 181700


Tools Required:


Panel Removal (fork tool)

Razor knife/blade

Installation Procedure

1. Prepare the front Fascia. Clean the surfaces shown in the pictures using the
provided
Alcohol Packs and allow time to dry. Apply the provided Adhesion
Promoter
to the same areas and allow time to dry



2. Install the provided 3M Acrylic Foam Tape as shown in pictures below. Note:
Apply tape about 1/8” away from fog light bezels and lower grille. Press tape firmly
to activate the adhesive.
Important: Create “pull tabs” with the red backing as
shown.



3. Remove factory retainers from wheel liner area, place aside as these will be reused
to attach the Chin Spoiler.
NOTE: You may or may not be able to reuse these
fasteners to secure your Outlaw Chin, depending which fastener was used during
the assembly. We have
included (2) Scrivets for your convenience, if needed.


4. Prepare the Tape areas on the back side of the Chin Spoiler as shown. Clean with
provided Alcohol Pack
, allow to dry. Apply the provided Adhesion Promoter and
allow to dry



5. Apply the ¼” 3M Acrylic Foam Tape as shown, leaving “pull tabs” with the red
backing



6. Install Chin Spoiler. Place Chin Spoiler on the Fascia, making sure the “pull tabs”
are all accessible. Peel red backing and press Chin Spoiler firmly to activate
adhesive.




7. Reinstall the factory retainers removed in step #3, or use the provided Scrivets.


Thank you for choosing Classic Design Concepts for your restyling needs. If you have any questions or concerns regarding installation, please contact T[email protected]
or call 866-624-7997.
