Centerforce Mustang DYAD XDS Cerametallic Twin Disc Clutch Kit with Flywheel; 26 Spline 415115705 (11-17 Mustang GT; 12-13 Mustang BOSS 302; 07-14 Mustang GT500)

Name: Centerforce DYAD XDS Cerametallic Twin Disc Clutch Kit with Flywheel; 26-Spline (11-17 Mustang GT; 12-13 Mustang BOSS 302; 07-14 Mustang GT500)
Brand: Centerforce
SKU: 426331
Price: 1889.95 USD
Availability: OutOfStock

Product Information

Features, Description, Q&A, Specs & Installation

Features & Specs

10.4 Inch Diameter (264.2mm)
1-1/8 Inch By 26 Spline Input Shaft
Holds Up To 1600 Ft/Lbs Of Torque
Weighs 48.45 Lbs
Sprung Hub Disc With Cerametallic Paddle/Button Style Friction Material
164 Tooth Ring Gear
8 Bolt Crank
0 Oz Counter Balance

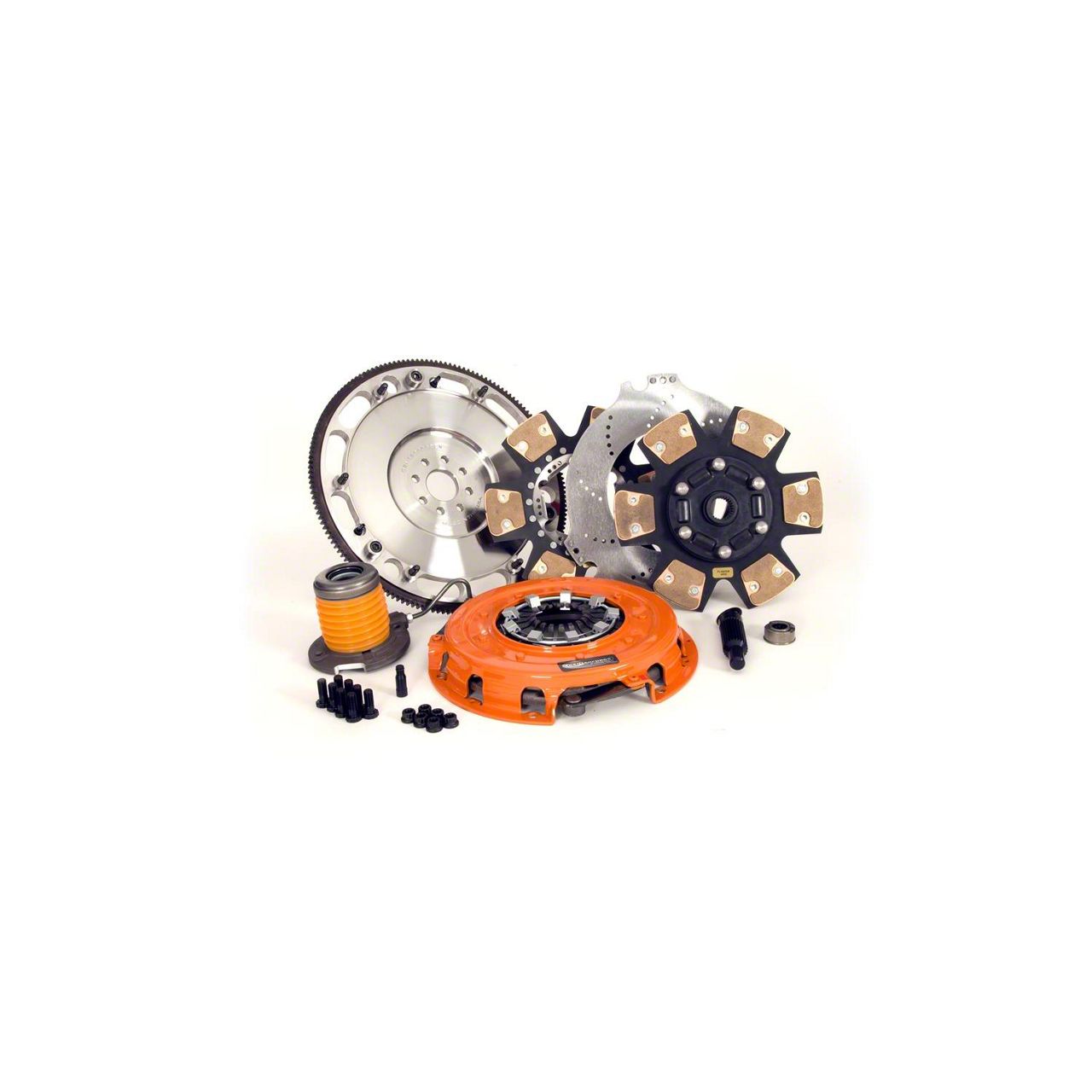

Includes Cover, Discs, Floater, Flywheel, Hardware, Pilot Bushing, Slave, Shim, And Alignment Tool
Sprung Solid Disc Type With 6 Paddle Design
Billet Steel Flywheel And Nodular Iron Pressure Plate
Flywheel Crank Bolt Size M10 X 1.00 X 25 Mm
Installed Height 2.960 Inches
Flywheel Crank Flange Register 1.750 Inches
Light Pedal Effort With Patented Ball Bearing Pressure Plate
Centrifugal Weight System For Superior Clamp Load
Match Balanced And Ready For Installation Using Included ARP Fasteners
Manufactured And Assembled In The USA
Fits 11-17 Mustang GT; 12-13 Mustang BOSS 302; 07-14 Mustang GT500

Brand

Centerforce

Clutch Usage

OEM Style/Street

Clutch Disc Material

Cerametallic

Clutch Flywheel Included

Yes

Clutch Flywheel Material

Steel

Description

HIGH-PERFORMANCE CLUTCH KIT. The Centerforce DYAD XDS Cerametallic Twin Disc Clutch Kit with Flywheel; 26-Spline is engineered to provide smooth engagement, light pedal effort, and exceptional holding capacity up to 1600 ft/lbs of torque. Designed for high-torque and performance applications, this kit efficiently transmits power from the engine to the transmission, ensuring reliable and responsive clutch operation essential for performance and race-inspired vehicles.

CONSTRUCTION AND APPEARANCE. Featuring a billet steel flywheel and a nodular iron pressure plate built for durability and strength, this clutch kit uses cerametallic paddle/button style friction material on the discs. The 6-paddle sprung hub design offers superior grip and engagement control. A patented centrifugal weight system combined with a ball bearing actuated pressure plate enhances clamp load and reduces pedal effort. Every component is precision-balanced and finished, proudly manufactured and assembled in the USA.

INSTALLATION. Installation is straightforward and includes all necessary hardware, pilot bushing, and an alignment tool. No drilling or additional modifications are required, making it suitable for skilled enthusiasts and professional installers.

APPLICATION. This clutch kit fits 2011–2017 Mustang GT, 2012–2013 Mustang BOSS 302, and 2007–2014 Mustang GT500 models, offering a tailored solution to handle increased torque and demanding driving conditions.

Centerforce 415115705
