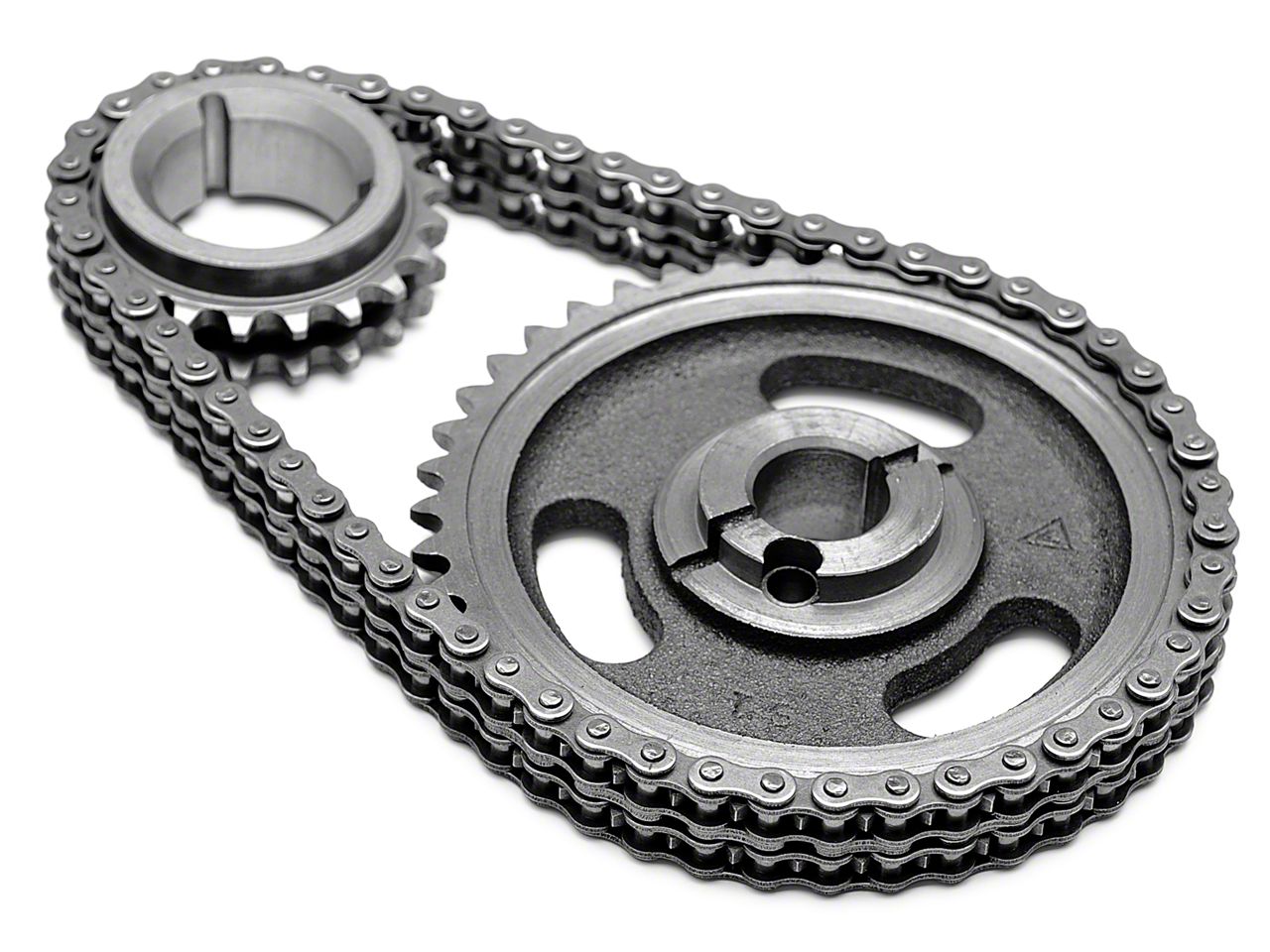

Comp Cams Magnum Double Roller Timing Chain Set (85-92 5.0L, 5.8L Mustang)Find parts that fit my vehicle
Item 30144
$0.00
19 Reviews
5 Answers
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Ideal for Mild Street Applications
- Heavy-Duty
- 3 Keyway Crank Sprocket
- Full Double Roller Chain
- Cast Iron Gear, Steel Sprocket
- Sold as a Set
- Fits 1985-1992 5.0L or 5.8L V8 Mustangs
Description
Ideal For The Street. A Comp Cams Magnum double roller timing set is ideal for street and strip Mustangs that see daily commuting.
3 Keyway. Made from billet steel the crank sprocket features a three key-way giving three choices of cam timing plus an additional four degree incremental adjust ability of advanced/retarded settings.
Superior Quality. Featuring an induction hardened cast iron camshaft gear and billet steel crank sprocket, this Comp Cams kit includes a heavy-duty, heat-treated true double roller timing chain for reliability.
Application. This Comp Cams Magnum Timing Chain Set is specifically designed for 1985-1992 5.0L or 5.8L V8 equipped Mustangs. Built after 3/22/84
3 Keyway. Made from billet steel the crank sprocket features a three key-way giving three choices of cam timing plus an additional four degree incremental adjust ability of advanced/retarded settings.
Superior Quality. Featuring an induction hardened cast iron camshaft gear and billet steel crank sprocket, this Comp Cams kit includes a heavy-duty, heat-treated true double roller timing chain for reliability.
Application. This Comp Cams Magnum Timing Chain Set is specifically designed for 1985-1992 5.0L or 5.8L V8 equipped Mustangs. Built after 3/22/84
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Crank Sprocket
- (1) Camshaft Gear
- (1) Timing Chain
Tech Specs
- Chain Style - Double roller
- Max Advance/Retard at Camshaft - 2 degree
- Max Advance/Retard at Crankshaft - 4 degree
- Thrust Bearing Included - No
- Cam Material - Steel
- Crank Material - Steel
