Davies Craig Mechanical Thermatic Electric Fan Switch Combo (Universal; Some Adaptation May Be Required)
Item CV9413
Our Price
$94.99
Military, Medical & First Responders
$4.75 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- This Product Combines Part Numbers 0401 & 0409 Into A Convenient And Economical Value Pack
- Can Be Used With Thermatic Electric Fans & Electric Water Pumps (EWP®)
- Mechanical Switch Senses Coolant Temperature After It Passes Through The Engine Block Prior To Entering The Radiator
- Fitted Directly Into The Radiator Hose Via The Adaptor
- Adjustable From 40° To 100°C (104° To 212°F)
- Kit Includes Everything Needed For A Watertight And Effective Installation
- Inline Sensor Adaptor Fits Into Engine’s Top Radiator Hose
- Adaptor Ends Hose Fitting Size Is 35mm
- Use Of 3mm Adaptor Sleeve (Included) Can Increase Size To 38mm
- 6mm Adaptor Sleeve (Optional) Can Increase Size To 41-42mm
- No Need To Squeeze The Probe Between Radiator Inlet And Hose
- Adaptor Kit Allows Easy Fitting Directly Into Radiator Hose
- Installation Involves Removing About 17mm (2/3”) Of Radiator Hose And Securing Hose Clamps

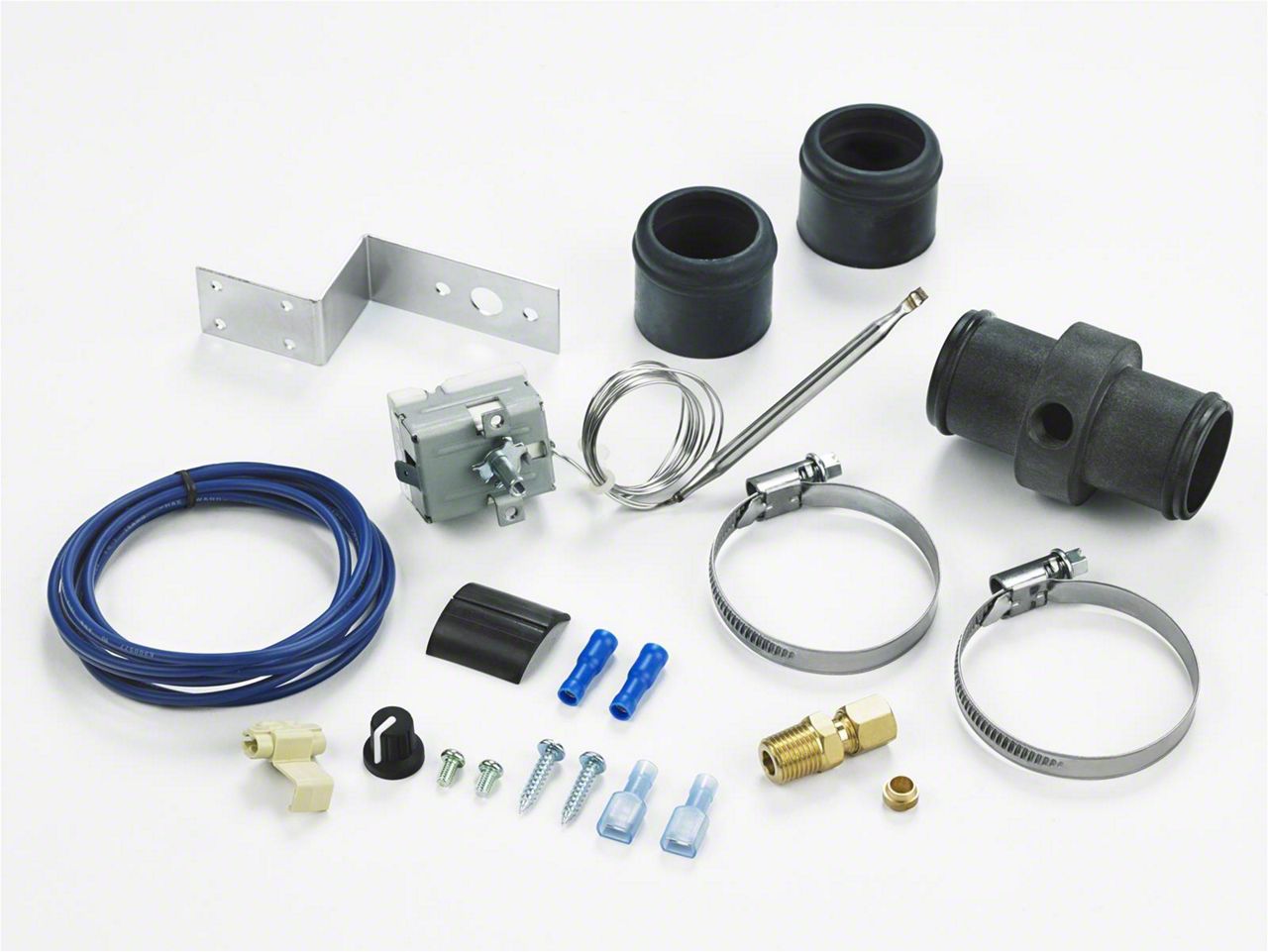

- Kit Contains Thermal Switch & Accessories, 3M White Scotch Lock, Knob For Switch, Rubber Sleeves, Brass Olive, Compression Fitting, Hose Clamps, Inline Adaptor, And Instructions
- Switch Controls Pump On/Off At Set Temperature Without Speed Variation
- Recommended Digital Controller For Speed Control Of Electric Water Pumps
- Mechanical Thermal Fan Switch Adjustable From 40° To 100°C
- Switch Mounted Near Radiator, Stainless Steel Probe Inside Radiator Hose
- Switch Connects To Ignition Circuit For Operation And Fan Relay Enables Thermal And Air Conditioning Operation
- Temperature Sensor Adaptor Kit Enables Easy Installation Without Squeezing Probe
- Includes Rubber Sleeves To Fit Radiator Hose Sizes From 32mm To 40mm
- Suits All Sensors With ¼” Or 6mm Outside Diameter And Gauge Senders With ¼” BSPT Thread
- Relays Required To Operate Fan, Not Included In Kit (Various Options For 12 & 24 Volt Fans, Single And Dual Configurations)
- Fits Universal; Some Adaptation May Be Required
Description
Mechanical Thermal Switch Combo. The Davies Craig Mechanical Thermatic Electric Fan Switch Combo combines temperature sensing and control into a practical value pack. It monitors coolant temperature via a probe inserted in the radiator hose and controls electric fans or water pumps by activating them at a preset temperature, ensuring optimal engine cooling performance.
Construction and Appearance. The kit includes a mechanical thermal switch with a stainless steel probe, robust adaptor components, rubber sleeves, brass olives, and hose clamps. These materials combine to provide durability and a watertight seal, with the switch finished in a functional, corrosion-resistant design suitable for engine bay environments.
Installation. Installation is straightforward, requiring no drilling or complex tools. The adaptor fits into the radiator hose after a short section is removed, making it simple to install with minimal mechanical experience.
Application. Designed to fit most radiator hoses with an inline sensor adaptor accommodating hose sizes from 32mm to 42mm through included or optional sleeves. Universal fitment requires some adaptation depending on hose size and configuration.
