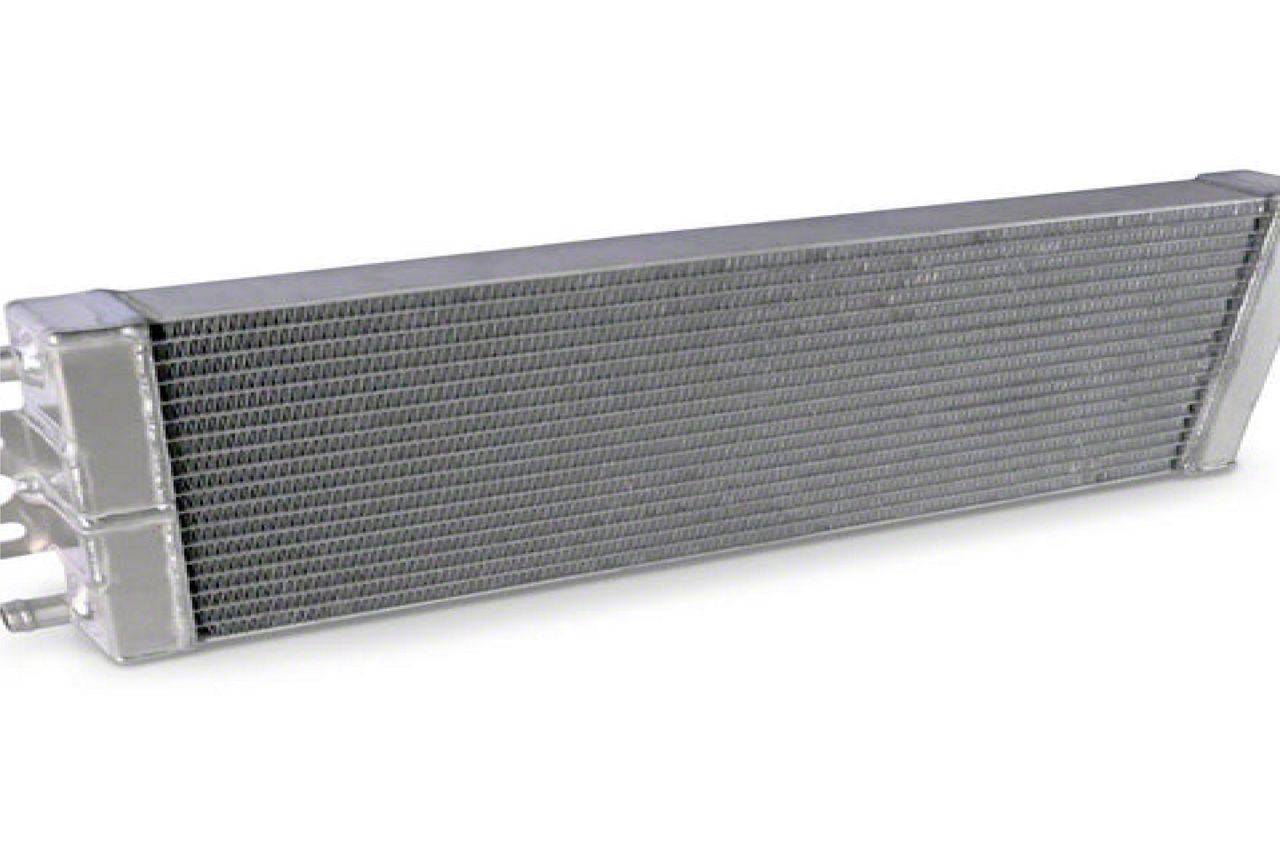

DeWitts Corvette Auxiliary Radiator 32-C7AUX (14-19 Corvette C7)

Name: DeWitts Auxiliary Radiator (14-19 Corvette C7)
Brand: DeWitts
SKU: CV9957
Price: 593.99 USD
Availability: InStock

Product Information

Features, Description, Q&A, Specs & Installation

Features

Bolt-On Secondary DeWitts Radiator Cooling Solution
Fits Manual Transmission Applications Only
Fabricated End Tanks Fully Welded To Core Without Gaskets Or Epoxy
Serpentine Cooling Fins Deliver Optimum Airflow Across Core Tubes For Effective Cooling
Single Row Core Design With 1.5-Inch-Wide Core Tubes For Maximum Cooling Efficiency
Includes Custom Sized Radiator, Mounting Hardware, And Precut Hoses With Fittings
Mounts Horizontally Beneath Factory Radiator And Requires Trimming Of Plastic Belly Pan
Hose Connections Are Made Between Radiator And Engine Oil Cooler
Extra System Capacity Helps Prevent Coolant Faults And Limp Mode Activation From The PCM
Auxiliary Cooling Module Is Ideal For Extended RPM Use In Racing And High-Performance Environments
Includes Detailed, Full-Color Instructions For Easy Installation
Radiator Style: Double Pass
Radiator Flow Direction: Crossflow
Material Type: Aluminum
Inlet Location: Driver Side End Tank
Outlet Location: Driver Side End Tank
Row Quantity: 1
Tube Size: 1.5 Inches
Core Width: 17.5 Inches
Core Height: 7 Inches
Overall Width: 20 Inches
Core Thickness: 1.5 Inches
Overall Thickness: 2.25 Inches
Overall Height: 7 Inches
Cap Included: No
Finish: Natural
Inlet Size: 5/8 Inch
Outlet Size: 5/8 Inch
Cooler Thread Size: Not Applicable
Fits 14-19 Corvette C7 Manual Transmission Models Only

Description

High-Performance Cooling Solution. The DeWitts Auxiliary Radiator provides additional cooling capacity for the 2014-2019 Corvette C7, helping to prevent overheating during intense driving conditions such as track use or extended high RPM operation. It complements the factory cooling system by reducing the risk of coolant faults and limp mode activation, ensuring sustained engine performance.

Construction and Appearance. Constructed from durable aluminum, this radiator features fabricated, fully welded end tanks that eliminate the need for gaskets or epoxy, enhancing long-term reliability. The single-row core includes 1.5-inch wide serpentine cooling fins to maximize airflow and heat transfer, finished naturally to combine functionality and lightweight design.

Installation. Installation is straightforward with the included full-color instructions, precut hoses, and mounting hardware. The radiator mounts horizontally beneath the factory unit, requiring trimming of the plastic belly pan to fit securely. Basic hand tools are sufficient for installation.

Application. Specifically engineered for manual transmission applications in the 2014-2019 Corvette C7 models, this auxiliary radiator is not compatible with automatic transmission versions.

DeWitts 32-C7AUX
