Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Edelbrock Pro-Flo 4 EFI Kit for Gen IV LS7 Engines (10-24 Camaro)Find parts that fit my vehicle
Item CC5993
Coupon Added
Our Price
$2,639.95 kit
Coupon
Military, Medical & First Responders
$132.00 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Fuel Injection System
- Application Specific for Chevrolet Gen IV LS7 6.2L
- Traditional 4150-Style Kit
- Gasket or Seal Included
- Kit Includes Wiring Harness
- Fuel Pressure Port Size 1/8-27 NPT
- Bore Diameter 1.75 Inch
- Fuel Injector Type 42 Lb/Hr
- Maximum Horsepower Rating 675
- 24 Month Warranty Included
- Hazardous Materials Warning Applies
- Installation Requires High-Pressure EFI Fuel Delivery System
- Finished In Satin
- Fits 10-24 Camaro
Description
Sequential Injection System. The Edelbrock Pro-Flo 4 EFI Kit for Gen IV LS7 Engines is a high-performance sequential multi-port fuel injection system designed to optimize fuel delivery for maximum efficiency and horsepower. It precisely meters fuel to each cylinder using injectors located in the intake manifold runners, improving atomization and distribution. This kit is ideal for advanced engine builds requiring improved throttle response and power output.
Construction and Appearance. The system features a Super Victor single-plane intake manifold constructed for high flow with a larger plenum and taller LS7-specific intake runners designed for rectangular-port heads. The components include preassembled high-flow injectors, fuel rails, and a 4150-flange throttle body. The assembly is finished with a durable satin texture that combines performance with an attractive appearance suitable for engine bays.
Installation. Installation requires a high-pressure EFI fuel delivery system sold separately. The kit includes all necessary sensors, wiring harnesses, and an Android-based tuning tablet to facilitate setup and tuning.
Warranty. This product includes a 24-month warranty against manufacturing defects.
Application. This kit fits the 10-24 Camaro model specifically and is designed for the Chevrolet Small-Block Gen IV LS7 engine. It is optimized for high-horsepower applications and engine configurations requiring precise fuel management.
Edelbrock 36170
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

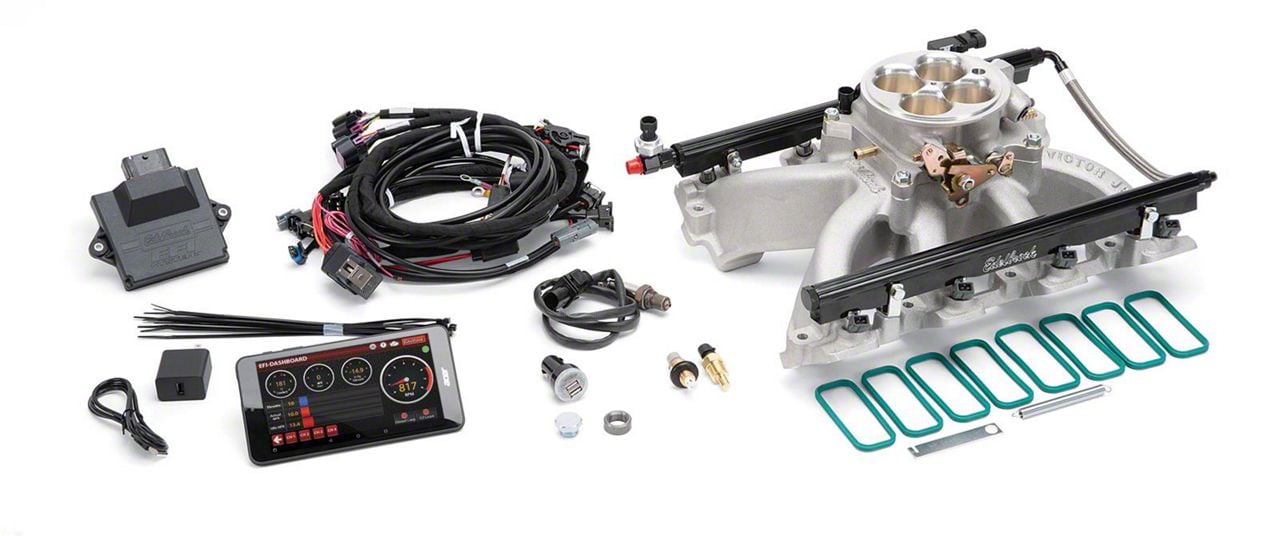

What's in the Box
- (1) Pro-flo 4 Manifold Assembly
- (1) Oxygen Sensor
- (1) Pro-flo 4 Ecu
- (1) Injector/sensor Harness
- (1) Main Engine Harness
- (1) Sensor, Mat
- (1) 58x Coil Harness
- (1) 24x Coil Harness
- Installation Hardware
