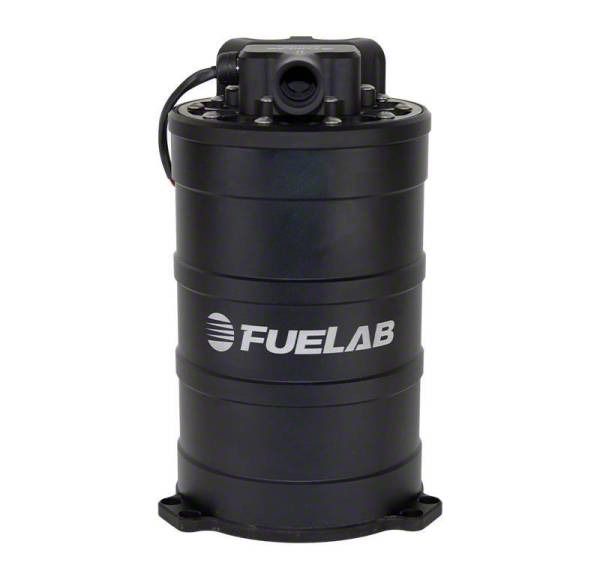

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item CC47726
Our Price
$1,773.00
Military, Medical & First Responders
$88.65 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- H/E Series 235mm Tall Fuel Surge Tank System for up to 1500 HP with Brushless Twin Screw Pump, Speed Controllable
- Limited Lifetime Warranty
- 2.1L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump, Rated at 625 lph
- Allows High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
- 235mm Tall
- Fuel Surge Tank Rated Volume: 2.1 L
- Includes Single Twin Screw DC Brushless Fuel Pump
- Rated to Flow 625 lph at 45 psi, Maximum Pressure 125 psi
- Integrated Controller with PWM Speed Control
- Billet Aluminum and O-ring Construction with -8AN Fuel Ports
- Compatible with Pump Gasoline, Racing Gasoline, and E85
- Return Line Required to Return Excess Fuel Back to the Vehicle Fuel Tank
- Optional Fuel Surge Tank Upgrade Accessory Kits Sold Separately
- Backed by a Limited Lifetime Warranty
- Compatible with Most Aftermarket ECUs with PWM Output Frequency
- Supports PWM Frequencies from 100Hz to 5000Hz
- Universal Fitment; Some Adaptation May Be Required
Description
High-Performance Fuel Delivery. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for 1500 HP and 235mm tall, is engineered to provide a consistent and reliable fuel supply for high-horsepower applications. This system ensures continuous fuel availability, preventing fuel sloshing and starvation during aggressive driving or racing. It is essential for vehicles that require stable fuel pressure and flow without extensive modifications to the original fuel tank.
Construction and Appearance. Constructed from billet aluminum with precision O-ring seals, this surge tank delivers durability and corrosion resistance. Its compact 235mm height facilitates easy integration into various setups, while -8AN fuel ports provide secure, robust connections. The design emphasizes functionality and performance with a clean, durable finish.
Installation. Installation is straightforward for professional or experienced enthusiast mechanics familiar with fuel systems. While significant drilling is generally unnecessary, the use of a return line to the factory fuel tank is mandatory for proper operation.
Warranty. This product is covered by a limited lifetime warranty, guaranteeing long-term reliability and support.
Application. Universal fitment; however, some adaptation may be needed depending on the specific vehicle and setup.
Fuelab 61704
