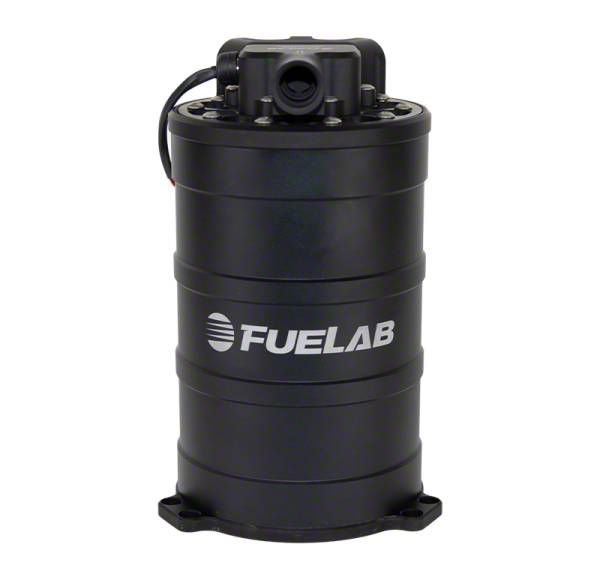

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item CC47723
Our Price
$1,616.00
Military, Medical & First Responders
$80.80 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System with 625 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.1L Fuel Surge Tank System with Speed-Controllable Twin Screw DC Brushless Fuel Pump Delivering 300 LPH _x000D_
- Allows High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 235mm Tall _x000D_
- FST Rated Volume: 2.1 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated to Flow 300 LPH at 45 PSI, 125 PSI Max _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports _x000D_
- Compatible with Pump and Racing Gasoline, as well as E85 _x000D_
- Return Line Required to Return Excess Fuel Back to the Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Sold Separately _x000D_
- Compatible with PWM Output Frequency from 100 Hz to 5000 Hz _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump rated for 625 HP and standing 235mm tall provides a reliable fuel delivery solution that ensures consistent fuel flow and prevents fuel starvation during high-performance driving. Designed to maintain a ready volume of fuel, it reduces the risk of sloshing and fuel starvation, making it ideal for racing and high-demand applications.
_x000D__x000D_Construction and Appearance. Crafted from billet aluminum with precision machining, this fuel surge tank features O-ring sealed construction and -8AN fuel ports for durability and leak resistance. The system includes a compact integrated controller with PWM speed control, housed within a sleek, 235mm tall aluminum body finished for resilient use in demanding environments.
_x000D__x000D_Installation. Installation is straightforward and designed to work with minimal modifications to existing fuel tanks and modules. No drilling or extensive fabrication is required, making it accessible for professional installers and enthusiasts alike.
_x000D__x000D_Warranty. This system carries a limited lifetime warranty, underscoring its reliability and quality.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
Fuelab 61701
