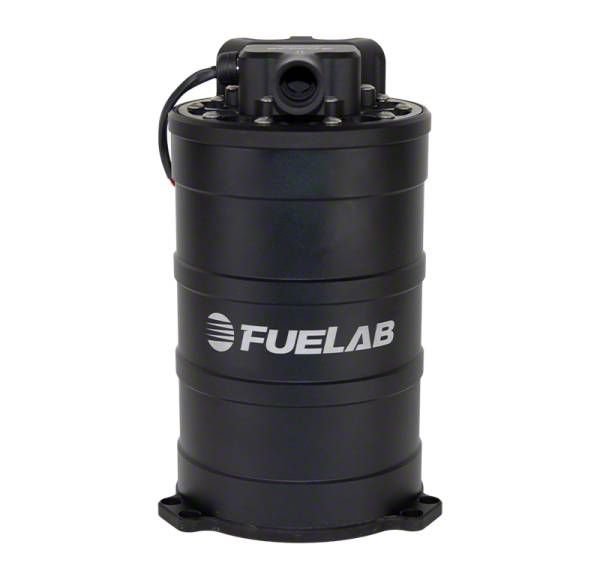

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item CC47724
Our Price
$1,668.00
Military, Medical & First Responders
$83.40 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System with 850 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.1L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump, 400LPH Flow Rate _x000D_
- Allows High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 235mm Tall _x000D_
- Rated Volume: 2.1 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated to Flow 400LPH at 45PSI, Maximum Pressure 125PSI _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum Construction with O-Ring Seals and -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required to Return Excess Fuel Back to Vehicle Fuel Tank _x000D_
- Optional Fuel Surge Tank Upgrade Accessory Kits Sold Separately _x000D_
- Pulse Width Modulation Compatibility Ranges from 100Hz to 5000Hz _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Surge Tank. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump (850 HP, 235mm Tall) provides a reliable fuel delivery solution for high-horsepower applications. It maintains a consistent supply of fuel by preventing fuel sloshing and ensuring a steady volume of fuel is always available for the engine, optimizing performance and preventing fuel starvation during extreme driving conditions.
_x000D__x000D_Construction and Appearance. This system features a billet aluminum housing with precision O-ring sealing for durability and leak-free operation. The finish is designed to withstand racing environments and is paired with -8AN fuel ports for secure and compatible connections. The compact and robust 235mm tall design allows for efficient packaging.
_x000D__x000D_Installation. Installation requires moderate mechanical skill and minimal modifications to the original equipment fuel tank or module. The system mounts via a SAE plate, making installation straightforward. A return fuel line is required to route excess fuel back to the vehicle's fuel tank.
_x000D__x000D_Warranty. The surge tank system is backed by a limited lifetime warranty, providing long-term protection and peace of mind.
_x000D__x000D_Application. This fuel surge tank system fits universal applications, though some adaptation may be needed to integrate it into specific vehicle setups.
Fuelab 61702
