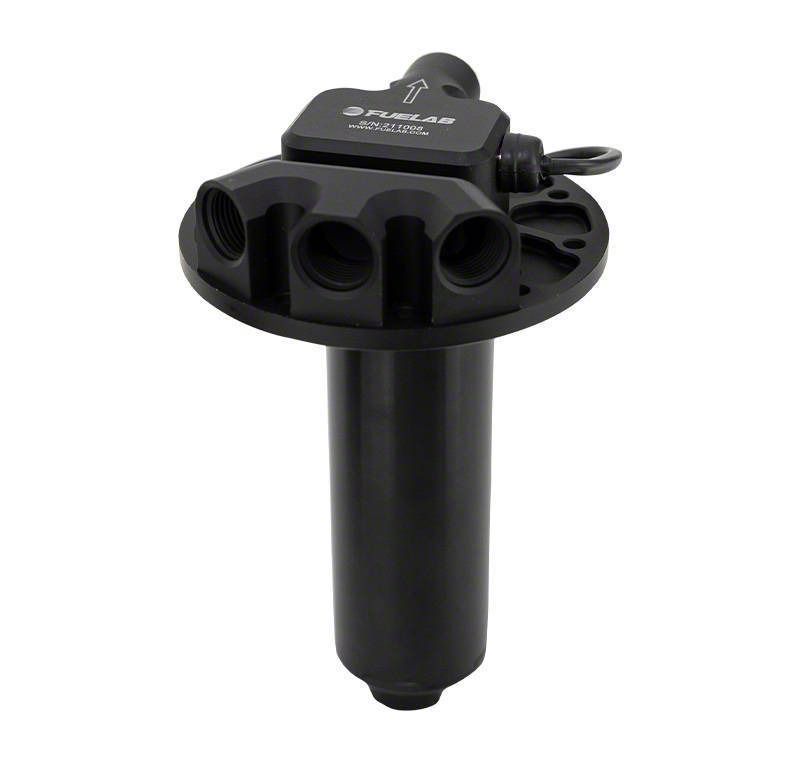

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1500 HP; 625 LPH (Universal; Some Adaptation May Be Required)
Item CC47767
Our Price
$1,416.00
Military, Medical & First Responders
$70.80 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 625 LPH @ 45 PSI, 125 PSI MAX Operating Pressure _x000D_
- Rated Up To 1500 HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism For Higher Efficiency _x000D_
- Reduced Current Draw And Noise Levels _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight, Super-Efficient DC Brushless Motor _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals _x000D_
- Compact Lightweight Design, Weighs Less Than 2.5lbs _x000D_
- Overall Length: 8 Inches; Pump Diameter: 2 Inches _x000D_
- Billet Aluminum Construction Anodized To MIL-A-8625 Type II Standards _x000D_
- Flange Mounted SAE 10-Bolt Pattern Ensures Easy Installation With Fuel Cells Or Fabricated Reservoirs _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Compatible With Pulse Width Modulation From 100Hz To 5000Hz _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL PUMP. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump is engineered to provide reliable and efficient fuel flow for high-horsepower applications up to 1500 HP. It supports precise fuel delivery at pressures reaching 125 PSI and is compatible with gasoline, diesel, methanol, and ethanol fuels.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Crafted from durable billet aluminum and finished with anodizing per MIL-A-8625 Type II for enhanced corrosion resistance and durability, this pump offers a lightweight and compact design. Weighing less than 2.5 pounds, with an 8-inch overall length and a 2-inch diameter, it is suitable for installations where space is limited.
_x000D__x000D_INSTALLATION. Featuring a flange-mounted SAE 10-bolt pattern, this pump is compatible with fabricated fuel cells and reservoirs, enabling straightforward installation with minimal adaptation. Its compact dimensions facilitate fitting into various applications without requiring extensive modifications.
_x000D__x000D_WARRANTY. This pump comes with a limited lifetime warranty, ensuring long-term reliability and customer support.
_x000D__x000D_APPLICATION. Designed for universal use; some adaptation may be necessary.
Fuelab 93904
