Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

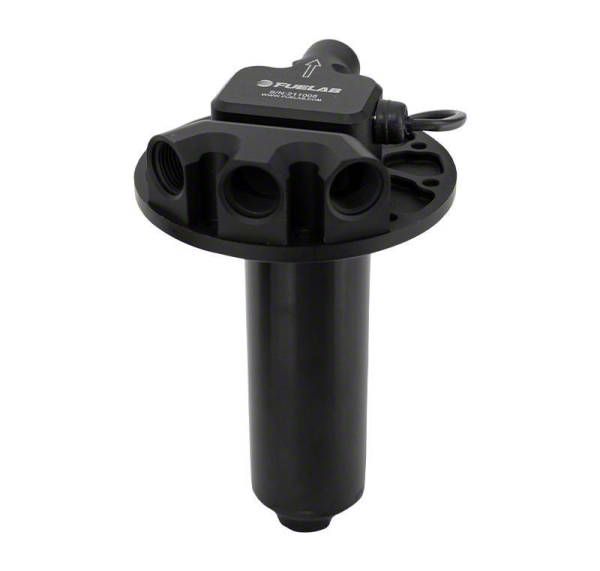

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item CC47765
Our Price
$1,311.00 each
Military, Medical & First Responders
$65.55 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 400 LPH @ 45 PSI, 125 PSI MAX _x000D_
- 13.5V Rated Up To 850 HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Max Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compact, Lightweight Design, Less Than 2.5 lbs _x000D_
- Overall Length 8”, Pump Diameter 2” _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Limited Lifetime Warranty _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH delivers high efficiency and reliability for fuel delivery in performance engines. Designed to support up to 850 horsepower, this pump ensures consistent fuel flow at high pressure, making it ideal for demanding automotive applications. It operates with gasoline, diesel, methanol, and ethanol, adding versatility and durability to any fuel system.
_x000D__x000D_Construction and Appearance. This pump features billet aluminum construction with anodizing per MIL-A-8625 Type II, providing a durable and corrosion-resistant finish. Its compact and lightweight design, weighing less than 2.5 pounds with an 8-inch overall length and 2-inch diameter, ensures easy integration while maintaining robust build quality.
_x000D__x000D_Installation. Installation is straightforward with a flange-mounted SAE 10-bolt pattern that fits most fuel cells and fabricated reservoirs. No special drilling is typically required, simplifying the setup process for most applications.
_x000D__x000D_Warranty. The pump is backed by a limited lifetime warranty, reflecting confidence in its build quality and long-term performance. Application. Fits universal applications; some adaptation may be required to suit specific vehicle configurations or fuel systems.
Fuelab 93902
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Screw Pump
