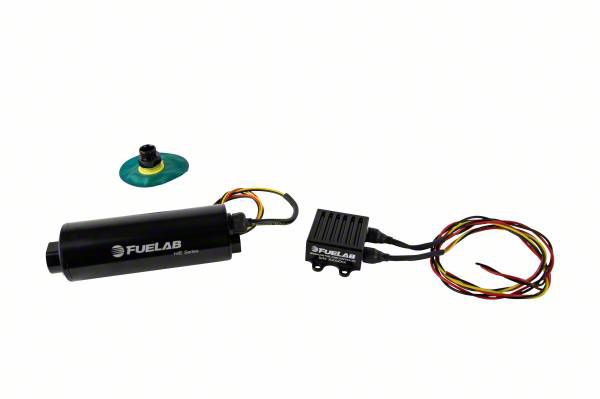

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)
Item CC47686
Our Price
$1,574.00
Military, Medical & First Responders
$78.70 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- In-Tank Fuel Pump Kit Contains 1100 Lph Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 Psi Max Operating Pressure _x000D_
- Supports Up to 2800 Hp at Continuous Speed for Naturally Aspirated Pump Gas Engines _x000D_
- Higher Efficiency Means Less Current Draw and Reduced Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance to Cavitation and Vapor Lock _x000D_
- Limited Lifetime Warranty _x000D_
- Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes to Wear Out or Corrode; Compatible with Low-Sulfur Diesel _x000D_
- Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compatible with 12 to 16 Volt Vehicle Electrical Systems _x000D_
- Model 72006 Pump Controller Included for Full Speed or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact, Lightweight Design Weighing Less Than 3 lbs _x000D_
- Billet Aluminum Construction with MIL-A-8625 Type II Anodized Finish _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8 AN Fittings _x000D_
- PWM Compatible from 100Hz to 5000Hz with Most Aftermarket ECUs _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Solution. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 1100 LPH offers a robust and versatile fuel delivery setup designed for demanding automotive applications. It features a twin screw brushless pump capable of supporting up to 2800 horsepower, ensuring consistent fuel flow for naturally aspirated engines running pump gas. This kit is compatible with a variety of fuels including gasoline, diesel, methanol, and ethanol, making it suitable for diverse engine configurations.
_x000D_Construction and Appearance. The pump has a compact, lightweight design employing billet aluminum construction finished with a MIL-A-8625 Type II anodized coating for enhanced durability. It incorporates fluorosilicone static seals rated for multi-fuel compatibility and uses rare earth Neodymium magnets in its brushless motor, providing increased efficiency and longevity with a clean, engineered appearance.
_x000D_Installation. Installation requires moderate mechanical knowledge. The kit includes a remote mount PWM controller compatible with 12 to 16-volt electrical systems and most aftermarket ECU PWM signals, allowing adaptable fuel flow control without the need for drilling.
_x000D_Warranty. This fuel pump kit is backed by a limited lifetime warranty, ensuring reliable operation and product support.
_x000D_Application. Fits universal applications; some adaptation may be required depending on specific vehicle setups.
Fuelab 20815
