Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item CC47685
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features

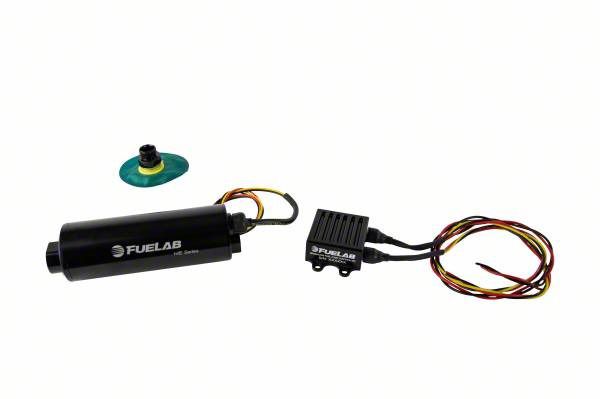

- In-Tank Fuel Pump Kit Contains 625LPH Twin Screw Brushless Pump, Remote Mount PWM Controller And 65 Micron Straining Filter
- Compatible With Gasoline, Diesel, Methanol, And Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- 1500HP Power Support At Continuous Speed Pump Gas, Naturally Aspirated
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation Vapor Lock
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode Low-Sulfur Diesel, No Problem
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
- 12 To 16 Volt Vehicle Electrical System Compatibility
- Includes Model 72004 Pump Controller For Full Speed, PWM Or 0-5V Input Speed Control
- Continuous Duty Motor Speed
- Compact, Lightweight Design Less Than 3Lbs
- Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Compatible With Most Aftermarket ECU's With PWM Output Frequency 100Hz To 5000Hz
- Fits Universal; Some Adaptation May Be Required
Description
Advanced Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 625 LPH is designed to provide high-efficiency fuel delivery for performance engines. This kit includes a potent 625 liters per hour twin screw pump that supports up to 1500 horsepower on pump gas and integrates a remote mount PWM controller for precise flow control. It is compatible with gasoline, diesel, methanol, and ethanol, ensuring versatility across multiple applications.
Construction and Appearance. The pump features a compact and lightweight billet aluminum housing with a durable anodized finish meeting MIL-A-8625 Type II standards. It incorporates high-quality fluorosilicone static seals for multi-fuel compatibility and a wet brushless motor design utilizing powerful neodymium rare-earth magnets to deliver minimal noise and reduced electrical draw.
Installation. Installation is straightforward for those familiar with fuel system upgrades, requiring no extensive modifications or drilling. The kit includes all necessary components, such as the 65-micron straining filter and controller, to facilitate seamless integration into existing fuel tanks.
Warranty. This fuel pump kit is backed by a limited lifetime warranty, underscoring its reliability and quality.
Application. Fits universal applications; some adaptation may be required to suit specific vehicle configurations.
Fuelab 20814
