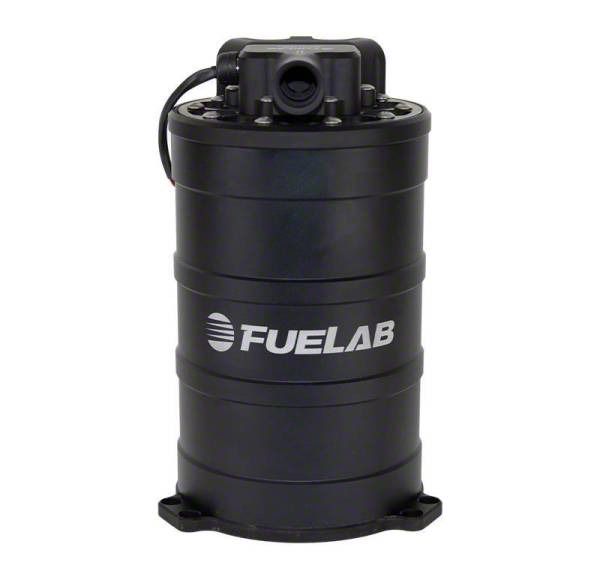

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item CV28838
Our Price
$1,773.00
Military, Medical & First Responders
$88.65 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- H/E Series 235mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump Speed Controllable
- Limited Lifetime Warranty
- 2.1L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump rated at 625 lph
- Allows High Fuel Flow Output with Minimal Modifications to the OEM Fuel Tank and Module
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
- 235mm Tall
- Fuel Surge Tank Rated Volume: 2.1L
- Includes Single Twin Screw DC Brushless Fuel Pump
- Rated to Flow 625 lph at 45 psi, Maximum 125 psi
- Integrated Controller with PWM Speed Control
- Billet Aluminum Construction with O-ring Sealing and -8AN Fuel Ports
- Compatible with Pump Gasoline, Racing Gasoline, and E85
- Return Line Required to Return Excess Fuel Back to the Vehicle Fuel Tank
- Optional Fuel Surge Tank Upgrade Accessory Kits Sold Separately
- Pulse Width Modulation Compatibility with Most Aftermarket ECUs Supporting PWM Output Frequency
- Compatible from 100 Hz to 5000 Hz PWM Frequency
- Universal Fit; Some Adaptation May Be Required
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 235mm Tall is engineered to provide consistent and reliable fuel supply for high-demand applications. Designed to eliminate fuel sloshing and maintain a ready fuel volume, it ensures optimal engine performance under any driving condition. This system is ideal for motorsport and high-horsepower street vehicles requiring superior fuel flow management.
CONSTRUCTION AND APPEARANCE. Crafted from billet aluminum with precision O-ring sealing and finished with robust -8AN fuel ports, this surge tank combines durability with a sleek, functional design. The integration of a brushless twin screw DC fuel pump and an advanced PWM speed controller offers high-level control and longevity.
INSTALLATION. Installation is straightforward for those familiar with fuel system upgrades and typically does not require drilling; it integrates with the existing fuel system with limited modifications. Basic fuel line and electrical connections are necessary to complete the setup securely.
WARRANTY. This fuel surge tank system is backed by a limited lifetime warranty, reflecting its quality and the manufacturer's commitment to customer satisfaction.
APPLICATION. Universal fit; some adaptation may be required depending on specific vehicle configurations and fuel system setups.
