Find Fuel Delivery & Injectors for your Corvette

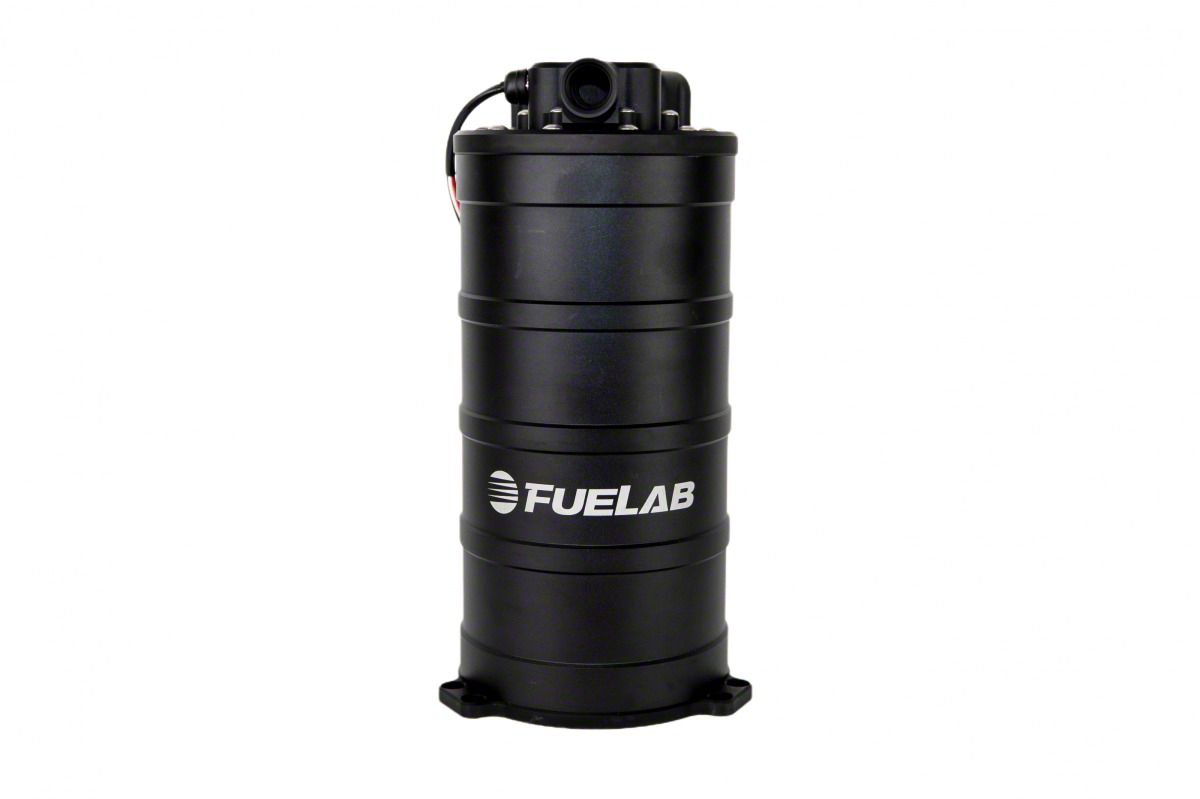

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)
Item CV28840
Our Price
$1,679.00
Military, Medical & First Responders
$83.95 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 290mm Tall Fuel Surge Tank System 850 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.7L Fuel Surge Tank System With Speed Controllable, Twin Screw DC Brushless Fuel Pump, 400lph _x000D_
- Allows For High Fuel Flow Output With Little Or No Modifications To The OE Fuel Tank And Module _x000D_
- Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel _x000D_
- 290mm Tall _x000D_
- FST Rated Volume: 2.7 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated To Flow 400lph At 45psi, 125psi Max _x000D_
- Integrated Controller With PWM Speed Control _x000D_
- Billet Aluminum And O-Ring Construction Using -8AN Fuel Ports _x000D_
- Compatible With Pump And Racing Gasoline, And E85 _x000D_
- Return Line Is Required, Returns Excess Fuel Back To The Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Sold Separately _x000D_
- Backed By A Limited Lifetime Warranty _x000D_
- Pulse Width Modulation Compatibility From 100Hz To 5000Hz _x000D_
- Compatible With Most Aftermarket ECU's With PWM Output Frequency _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall is engineered to provide consistent and high fuel flow output for performance applications. It maintains a constant supply of fuel to prevent sloshing and starvation during aggressive driving or racing conditions, enhancing engine reliability and performance.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This fuel surge tank features precision billet aluminum construction combined with O-ring sealed -8AN fuel ports for durability and leak resistance. The pump is integrated with a PWM speed controller offering smooth and adjustable fuel delivery, and the entire unit stands 290mm tall with a robust and professional finish suitable for demanding environments.
_x000D__x000D_INSTALLATION. Installation requires minor adaptation but is designed to work with most factory fuel tanks and systems with little to no major modifications. Professional or experienced installation is recommended to ensure proper integration of the required return line and electrical connections.
_x000D__x000D_WARRANTY. The system is backed by a limited lifetime warranty, providing long-term assurance of product quality and reliability. Application. Fits universal setups; some adaptation may be required to fit specific applications or vehicle layouts.
Fuelab 61712
