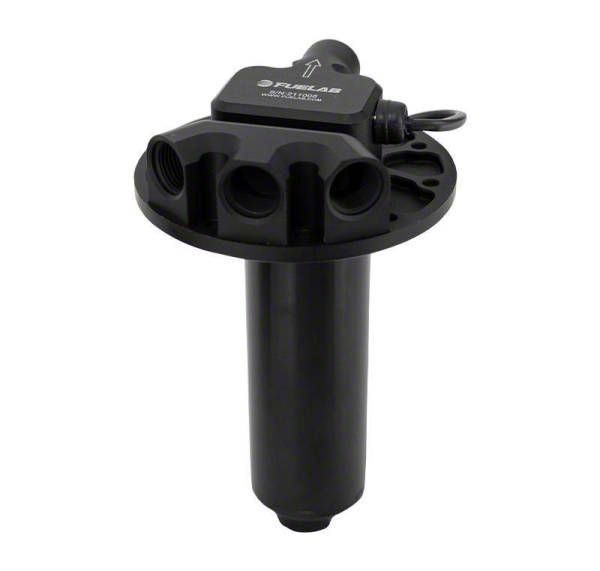

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1250 HP; 550 LPH (Universal; Some Adaptation May Be Required)
Item CV28878
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 550 LPH @ 45PSI, 125PSI MAX - 13.5V RATED UP TO 1250+HP Powerful and Versatile
- Compatible with Gasoline, Diesel, Methanol, and Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- Supports Power Requirements up to 1250+ HP
- Higher Efficiency Means Less Current Draw and Reduced Noise
- Superior Priming Capabilities
- Greater Resistance to Cavitation (Vapor Lock)
- Backed by a Limited Lifetime Warranty
- Compatible with 12 to 16 Volt Vehicle Electrical Systems
- Variable Duty Motor Speed
- Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes to Wear Out or Corrode (Low-Sulfur Diesel Compatible)
- Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out
- Compact, Lightweight Design Weighing Less Than 2.5 lbs; Overall Length 8”, Pump Diameter 2”
- Billet Aluminum Construction with Anodize per MIL-A-8625 Type II
- Flange Mounted SAE 10-Bolt Pattern for Easy Installation with Fabricated Fuel Cells or Reservoirs
- Long-Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard or Port Style -8AN Fittings
- Compatible with Most Aftermarket ECUs Featuring PWM Output
- Compatible with PWM Frequencies from 100Hz to 5000Hz
- Fits Universal Applications; Some Adaptation May Be Required
Description
HIGH-PERFORMANCE FUEL PUMP. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1250 HP; 550 LPH is a powerful and versatile fuel pump designed to support high horsepower applications up to 1250+. It delivers consistent fuel flow at pressures up to 125 PSI and a flow rate of 550 liters per hour, making it ideal for high-performance gasoline, diesel, methanol, and ethanol fuel systems.
CONSTRUCTION AND APPEARANCE. This pump features a compact and lightweight design, constructed from billet aluminum with a MIL-A-8625 Type II anodized finish for enhanced durability and corrosion resistance. It utilizes multi-fuel compatible fluorosilicone static seals and incorporates a flange-mounted SAE 10-bolt pattern for straightforward installation with fabricated fuel cells or reservoirs.
INSTALLATION. Designed for in-tank flange mounting, this pump provides straightforward installation using the supplied flange bolt pattern without the need for special drilling. Its compact size and compatibility with standard fittings simplify integration into most racing or high-performance fuel systems.
WARRANTY. This fuel pump is backed by a limited lifetime warranty, ensuring long-term reliability and support.
APPLICATION. Fits universal applications; some adaptation may be required.
Fuelab 93903
