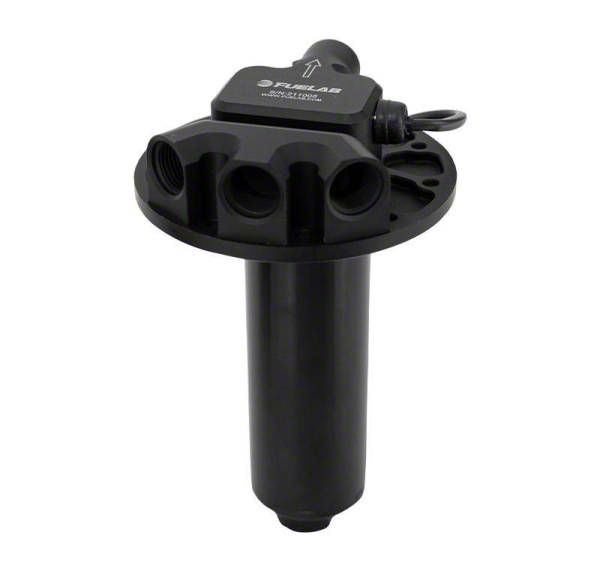

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 2800 HP; 1100 LPH (Universal; Some Adaptation May Be Required)
Item CV28880
Our Price
$1,626.00
Military, Medical & First Responders
$81.30 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 1100 Lph @ 45Psi, 125Psi Max Operating Pressure
- Rated 13.5V Up To 2800 Hp
- H/E Series 2800 Hp SAE Plate Mount Brushless Screw Pump
- Compatible with Gasoline, Diesel, Methanol, and Ethanol
- Twin Screw Rotor Pumping Mechanism for Superior Priming and Cavitation Resistance
- Higher Efficiency Results in Less Current Draw and Less Noise
- Backed by a Limited Lifetime Warranty
- 12 to 16 Volt Vehicle Electrical System Compatibility
- Variable Duty Motor Speed
- Lightweight, Super-Efficient DC Brushless Motor Minimizing Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes to Wear Out or Corrode
- Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out
- Compact and Lightweight Design, Less Than 2.5 lbs
- Overall Length: 8”, Pump Diameter: 2”
- Billet Aluminum Construction with MIL-A-8625 Type II Anodizing for Corrosion Resistance
- Flange Mounted SAE 10-Bolt Pattern for Easy Use with Fuel Cells or Fabricated Reservoirs
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard or Port Style -8AN Fittings
- Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100Hz to 5000Hz
- Universal Fit; Some Adaptation May Be Required
Description
HIGH-PERFORMANCE FUEL PUMP. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump delivers powerful and efficient fuel delivery for applications up to 2800 HP. Designed to provide up to 1100 liters per hour at 45 PSI, this pump ensures consistent fuel flow to support engine performance under demanding conditions. Its compatibility with multiple fuel types, including gasoline, diesel, methanol, and ethanol, makes it a versatile choice for various engine setups.
CONSTRUCTION AND APPEARANCE. Featuring a billet aluminum body with MIL-A-8625 Type II anodizing for corrosion resistance and durability, the pump’s compact and lightweight design (under 2.5 pounds) combined with an 8-inch length and 2-inch diameter facilitates easy integration within fuel cells or fabricated reservoirs. It uses an SAE 10-bolt flange mount pattern for secure installation.
INSTALLATION. Installation is straightforward with flange mounting and acceptance of standard or port-style -8AN fittings. No extensive modifications are typically required, making it suitable for custom fuel systems with basic mechanical skills.
WARRANTY. The pump is backed by a limited lifetime warranty, providing long-term reliability assurance.
APPLICATION. Designed for universal use with some adaptation depending on fuel system configuration. Ideal for high-performance gasoline, diesel, methanol, and ethanol applications.
Fuelab 93905
