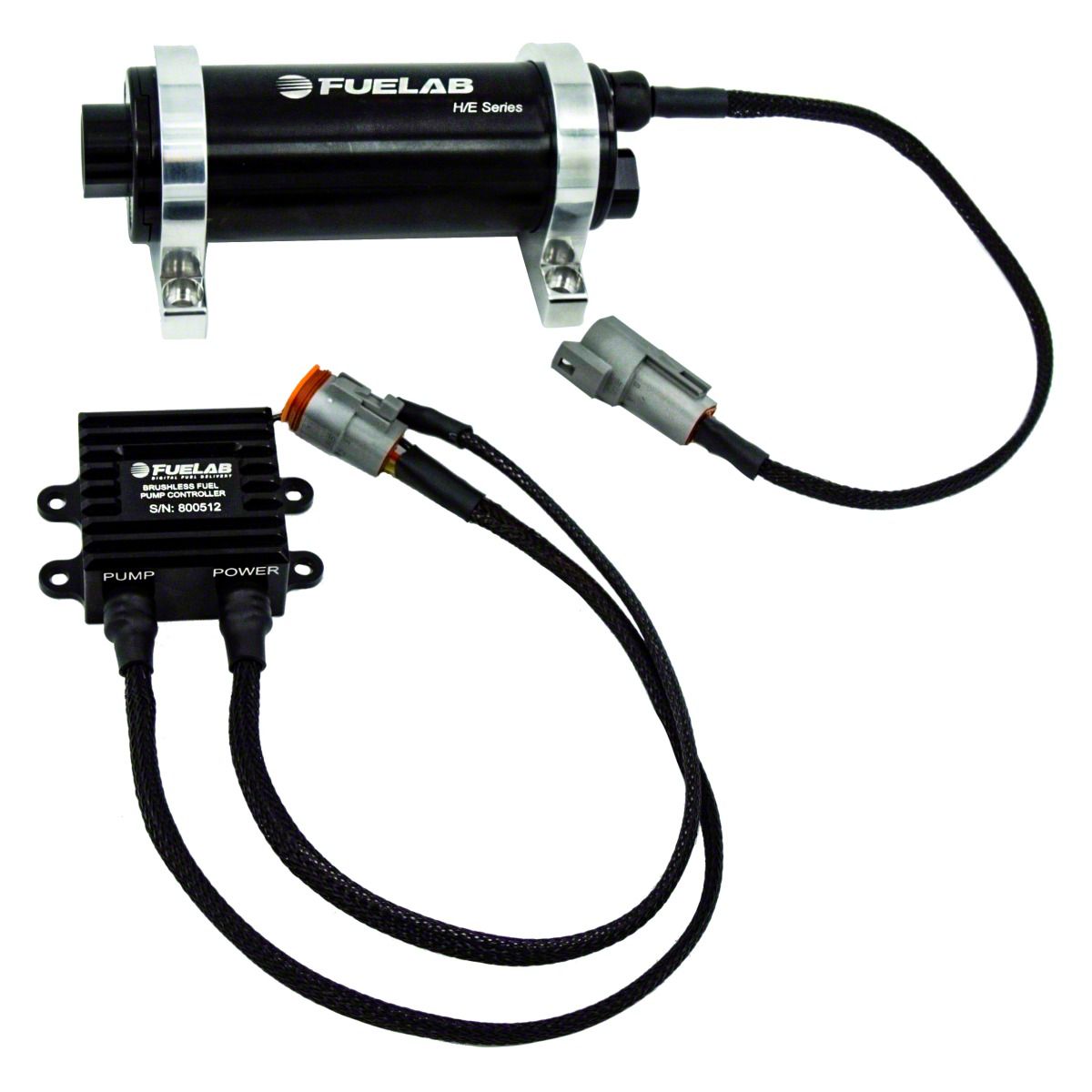

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)
Item CV28818
Our Price
$1,574.00
Military, Medical & First Responders
$78.70 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- High Efficiency EFI In Line Fuel Pump Rated Up To 2800HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump
- Limited Lifetime Warranty
- To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger
- 1100 LPH At 45PSI 125PSI Max Operating Pressure
- Compatible With Gasoline, Diesel, Methanol, And Ethanol
- Twin Screw Rotor Pumping Mechanism
- 2800HP Power Support At Continuous Speed
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation And Vapor Lock
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode, Low-Sulfur Diesel Compatible
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out
- Compatible With 12 To 16 Volt Vehicle Electrical Systems
- Model 72006 Pump Controller Included For Full Speed Or PWM Input Speed Control
- Continuous Duty Motor Operation
- Compact Lightweight Design Less Than 3lbs; Overall Length 7.13” Diameter 2.0”
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
- Includes Two Billet Aluminum Mounting Brackets
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Fits Universal Applications, Some Adaptation May Be Required
Description
High-Power Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump -8AN; 1100 LPH is engineered to deliver exceptional fuel flow and support up to 2800 horsepower. It ensures consistent fuel pressure and flow for high-performance street and strip applications, providing reliable engine operation under demanding conditions. This pump is compatible with multiple fuel types including gasoline, diesel, methanol, and ethanol, offering versatility for various setups.
Construction and Appearance. Featuring a compact, lightweight billet aluminum body with a MIL-A-8625 Type II anodized finish for corrosion resistance and durability, the pump weighs less than 3 pounds and measures 7.13 inches in length with a 2-inch diameter. It is equipped with two billet aluminum mounting brackets and long-life fluorosilicone static seals that enhance multi-fuel compatibility.
Installation. Installation is straightforward, aided by included mounting brackets and a compact design that allows flexible placement within engine bays or fuel systems without the need for drilling or extensive modification.
Warranty. This pump comes with a limited lifetime warranty, assuring quality and durability.
Application. Suitable for universal applications with some adaptation required. It is compatible with 12-16 volt electrical systems and designed for use with 595 Series Fuel Pressure Regulators with an orifice size of .328 inches or larger.
