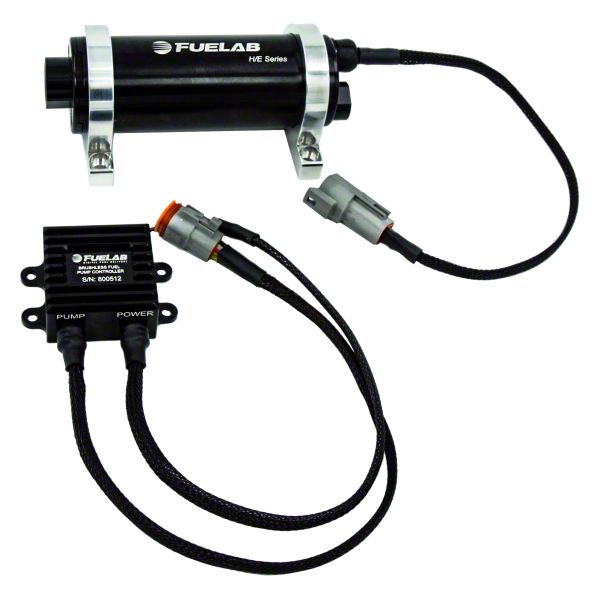

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)
Item CV28814
Our Price
$1,206.00
Military, Medical & First Responders
$60.30 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- High Efficiency EFI In-Line Fuel Pump Rated Up To 625HP For Street/Strip Applications with Twin Screw DC Brushless Driven Fuel Pump
- Limited Lifetime Warranty
- 300 LPH at 45 PSI, 125 PSI Maximum Operating Pressure
- 13.5V Power Requirements, Compatible With 12 to 16 Volt Vehicle Electrical Systems
- Compatible With Gasoline, Diesel, Methanol, and Ethanol
- Twin Screw Rotor Pumping Mechanism
- Continuous Duty Motor Speed
- Higher Efficiency Means Less Current Draw and Reduced Noise
- Superior Priming Capabilities with Greater Resistance to Cavitation and Vapor Lock
- Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes to Wear Out or Corrode—Low-Sulfur Diesel Compatible
- Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out
- Includes Model 72004 Pump Controller for Full Speed or PWM Input Speed Control
- Compact, Lightweight Design—Less Than 3 lbs, Overall Length 7.13", Diameter 2.0"
- Billet Aluminum Construction with Anodize Per MIL-A-8625 Type II
- Includes Two Billet Aluminum Mounting Brackets
- Long-Life Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard or Port Style -8AN Fittings
- Fits Universal Applications; Some Adaptation May Be Required
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 300 LPH delivers up to 625 horsepower support with reliable fuel flow at 45 PSI and a maximum pressure of 125 PSI. It is designed for street and strip applications, providing efficient fuel delivery for gasoline, diesel, methanol, and ethanol. This pump operates with high efficiency to reduce current draw and noise, making it a vital component in high-performance fuel systems.
Construction and Appearance. The pump features a compact and lightweight billet aluminum housing with an anodized finish meeting MIL-A-8625 Type II standards for durability. It uses advanced fluorosilicone static seals compatible with multiple fuel types and includes two billet aluminum mounting brackets for secure installation. The motor employs high flux density neodymium rare earth magnets in a brushless design, which eliminates brush wear and corrosion issues typical of traditional motors. The wet motor design removes dynamic shaft seals that can wear out, enhancing durability.
Installation. Installation of this fuel pump is straightforward due to its compact size and included mounting brackets, requiring minimal modifications. No extensive drilling is typically needed, making it suitable for various custom fuel system setups.
Warranty. This fuel pump is backed by a limited lifetime warranty, offering long-term reliability and peace of mind to users.
Application. Fits universal applications with some adaptation required depending on the specific vehicle setup.
Fuelab 47411
