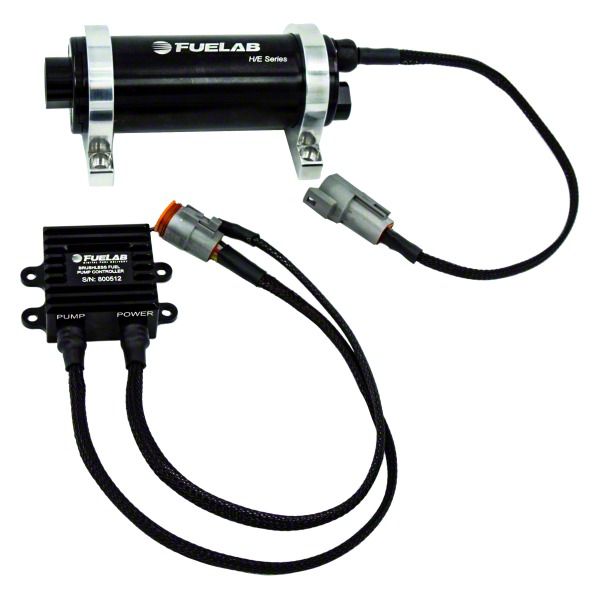

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item CV28817
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- High Efficiency EFI In Line Fuel Pump, Rated Up To 1500HP, Street/Strip, Twin Screw DC Brushless Driven Fuel Pump
- Limited Lifetime Warranty
- 625 LPH @ 45PSI, 125PSI Max
- 13.5v Operating Voltage
- Compatible With Gasoline, Diesel, Methanol, And Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- 1500HP Power Support At Continuous Speed
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation (Vapor Lock)
- Lightweight Super-Efficient DC Brushless Motor
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
- 12 To 16 Volt Vehicle Electrical System Compatibility
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control
- Continuous Duty Motor Speed
- Compact, Lightweight Design, Less Than 3lbs
- Overall Length 7.13 Inches, Diameter 2.0 Inches
- Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II
- Includes Two Billet Aluminum Mounting Brackets
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Fits Universal; Some Adaptation May Be Required
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH is designed to provide reliable, high-capacity fuel delivery for vehicles up to 1500 horsepower. It efficiently pumps gasoline, diesel, methanol, and ethanol, making it ideal for both street and strip applications. Its twin screw brushless mechanism ensures consistent flow and superior resistance to vapor lock, which is crucial for maintaining engine performance under demanding conditions.
CONSTRUCTION AND APPEARANCE. This fuel pump features a compact, lightweight billet aluminum housing anodized to MIL-A-8625 Type II standards, ensuring durability and corrosion resistance. The pump incorporates multi-fuel compatible fluorosilicone static seals and utilizes powerful neodymium rare earth magnets within a wet brushless motor design, eliminating brush wear and corrosion issues common in conventional motors.
INSTALLATION. Installation of this pump is straightforward with included billet aluminum mounting brackets and standard or port style -8AN fittings. Minimal modifications may be required, making it suitable for both professional and experienced DIY installations.
WARRANTY. This product is backed by a limited lifetime warranty, providing peace of mind through long-term coverage.
APPLICATION. Fits universal; some adaptation may be required.
Fuelab 47414
