Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)
Item CV28798
Our Price
$1,574.00
Military, Medical & First Responders
$78.70 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features

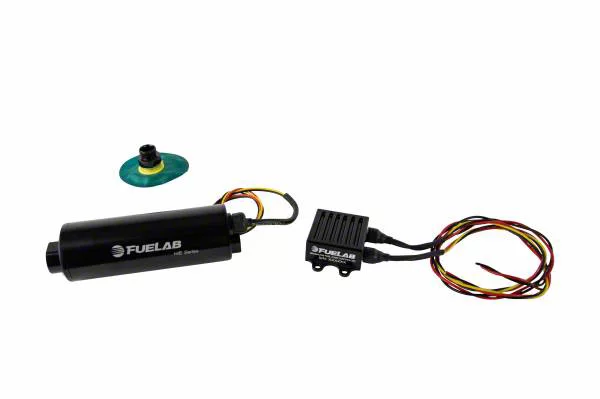

- In-Tank Fuel Pump Kit Contains 1100LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter
- Limited Lifetime Warranty
- To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger
- Compatible With Gasoline, Diesel, Methanol, and Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125 PSI Max Operating Pressure
- Supports Up to 2800HP at Continuous Speed in Naturally Aspirated Pump Gas Applications
- Higher Efficiency Means Less Current Draw and Reduced Noise
- Superior Priming Capabilities
- Greater Resistance to Cavitation and Vapor Lock
- Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes to Wear Out or Corrode; Compatible With Low-Sulfur Diesel
- Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out
- 12 to 16 Volt Vehicle Electrical System Compatibility
- Model 72006 Pump Controller Included for Full-Speed or PWM Input Speed Control
- Continuous Duty Motor Speed
- Compact, Lightweight Design Weighing Less Than 3 lbs
- Billet Aluminum Construction with Anodize per MIL-A-8625 Type II
- Long Life Multifuel Compatible Fluorosilicone Static Seals
- Accepts Standard or Port Style -8AN Fittings
- Compatible With Most Aftermarket ECUs With PWM Output Frequency From 100Hz to 5000Hz, Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, and Megasquirt
- Fits Universal; Some Adaptation May Be Required
Description
High-Performance Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit (-8AN, 1100 LPH) provides exceptional fuel flow capacity of 1100 liters per hour, designed to meet the demands of high-horsepower engines up to 2800HP in naturally aspirated configurations. This kit includes a twin screw rotor pump that delivers smooth, consistent pressure up to 125 PSI, suitable for gasoline, diesel, methanol, and ethanol fuels. Its advanced brushless motor technology ensures efficient operation with reduced electrical draw and quieter performance.
Construction and Appearance. Crafted with a billet aluminum housing anodized according to MIL-A-8625 Type II standards, the pump offers durability and corrosion resistance. The unit is lightweight, weighing less than 3 pounds, and features long-life fluorosilicone static seals compatible with multiple fuel types. The compact design incorporates advanced wet motor technology without dynamic shaft seals, enhancing the pump’s longevity and reliability.
Installation. Installation of this fuel pump kit is straightforward and typically does not require drilling modifications. Designed for compatibility with 12 to 16-volt vehicle electrical systems, it includes a remote-mount PWM controller allowing precise speed regulation and integration with most aftermarket ECUs.
Warranty. This product is backed by a limited lifetime warranty, providing assurance of its build quality and durability.
Application. Fits universal applications; some adaptation may be required to integrate with specific fuel systems or chassis configurations.
Fuelab 20815
