Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 400 LPH (Universal; Some Adaptation May Be Required)
Item CV28795
Our Price
$1,206.00 kit
Military, Medical & First Responders
$60.30 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- In-Tank Fuel Pump Kit Contains 400 LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter
- Compatible With Gasoline, Diesel, Methanol, and Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125 PSI Max Operating Pressure
- Supports Up to 850 HP at Continuous Speed (Pump Gas Naturally Aspirated)
- Higher Efficiency Means Less Current Draw and Reduced Noise
- Superior Priming Capabilities
- Greater Resistance to Cavitation and Vapor Lock
- Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes to Wear Out or Corrode, Compatible with Low-Sulfur Diesel
- Wet Motor Design with No Dynamic Shaft Seals to Wear Out
- Compatible with 12 to 16 Volt Vehicle Electrical Systems
- Model 72004 Pump Controller Included, Supports Full Speed PWM or 0-5V Input Speed Control
- Continuous Duty Motor Speed
- Compact Lightweight Design, Weighs Less Than 3 lbs
- Billet Aluminum Construction with MIL-A-8625 Type II Anodize for Durability
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard or Port Style -8AN Fittings
- Compatible with Most Aftermarket ECUs With PWM Output Frequency from 100 Hz to 5000 Hz
- Fits Universal Applications; Some Adaptation May Be Required
Description

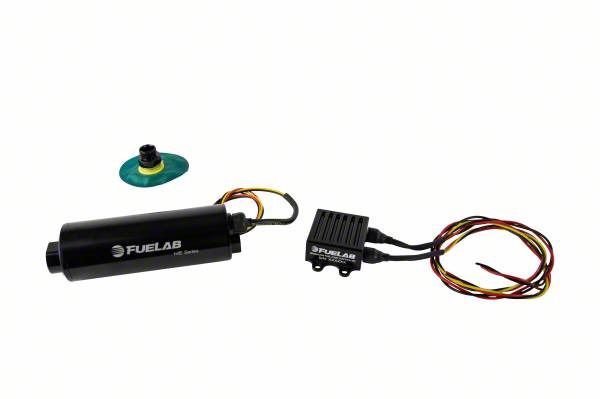

High-Performance Fuel Pump Kit. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 400 LPH is engineered to deliver reliable and efficient fuel delivery for automotive applications. This kit includes the pump, a remote PWM controller, and a fine straining filter to ensure clean, consistent fuel flow suitable for gasoline, diesel, methanol, and ethanol fuels. It supports up to 850 horsepower continuously for naturally aspirated engines, making it ideal for high-performance and multi-fuel setups.
Construction and Appearance. The pump features a compact, lightweight design under 3 pounds, with a billet aluminum housing finished with a MIL-A-8625 Type II anodize for corrosion resistance and durability. It uses high flux density neodymium rare earth magnets in a brushless DC motor, combined with long-life fluorosilicone static seals for longevity and excellent multi-fuel compatibility.
Installation. Installation of this fuel pump kit is straightforward and designed to fit universal applications with some adaptation. It requires no complex modifications or drilling and is compatible with most aftermarket ECUs that provide PWM control signals.
Warranty. This fuel pump kit is backed by a limited lifetime warranty for added peace of mind. Application. Fits universal applications; some adaptation may be required.
Fuelab 20812
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Fuel Pump Kit
