- (4) Wheels
- (4) Center Caps
- (4) Tires
- Hardware included:
- None Required
Add Road Hazard Protection
Add FREE Nitrogen Fill
Add TPMS Sensor Kit (recommended for 2007+)
Add TPMS Sync Tool

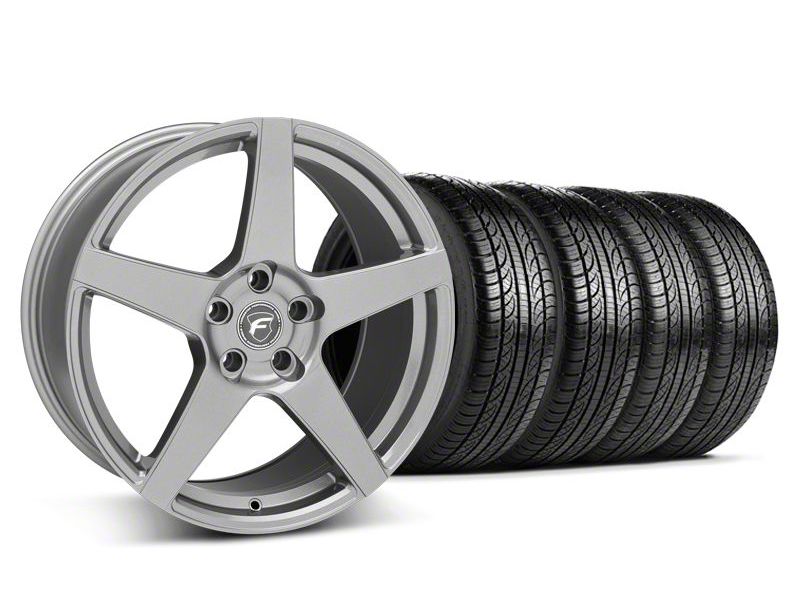

Hi I’m Justin with AmericanMuscle.com, and I have with me Forgestar’s CF5 monoblock wheels available in your choice of either gunmetal, piano black, matte black, and silver, fitting all 2005 and newer Mustangs. The CF5 features a timeline concave 5 spoke wheel design which never seems to go out of style, and looks good on pretty much every generation of Mustang both new and old. These monoblock or one piece aluminum wheels go through an advanced process during production, called rotary forging, what this does is greatly improve the strength of the barrel of the wheel, while managing to keep the overall weight down, you’re going to be looking at a very lightweight, very strong combination. The CF5’s are offered in a couple of different sizing options, we have an 18” version shown here in gunmetal, and a 19” diameter shown in Piano black. The wheels are also offered in both 9 and 10 inch widths, and because of the different width options, you can easily achieve that staggered fitment, by sticking the wider 10” wheels in the rear, and the 9’s up front. On the other hand you can go with the standard fitment, which will give you the same width wheels on all 4 corners, maintaining the ability to properly rotate your tires. Chances are if you’re picking up new wheels, you’re going to need new tires, we do offer a couple of pre built tire and wheels combinations, where we pair your new CF5’s up with some of the top tires on the market today, in sizes that are guaranteed to fit your Mustang without rubbing, even if you’re lowered an inch or two. On top of that you get to take advantage of our free mounting and balancing, and free shipping and handling, and finally all Forgestar wheels are backed by a lifetime warranty. When it does come time to install your new wheels and tires, just grab a floor jack and some basic hand tools. You’ll want to crack the lugs loose first with the car still on the ground, once you’ve done that simply jack the car up and swap all the wheels and tires, it doesn’t get much easier than this, but since there is a little work involved, we’ll call it an hour from start to finish just to be on the safe side. So if you dig the look of a classic 5 spoke wheel design and you want the sizing and strength benefits of the CF5’s, you might want to check out these quality, lightweight aluminum wheels from Forgestar, available right here at AmericanMuscle.com
Road Hazard Protection. AmericanMuscle is proud to offer an optional Road Hazard Tire Protection program to our customers who purchase a Wheel and Tire Package from us. With this program, you will receive a 3-Year/36 Month protection plan for changing of flat tires and flat tire repair.
36 Months of Protection. The Road Hazard Protection Program is good for 3-Years (36 Months) from the purchase date printed on the program certificate or until any part of the tire tread that comes in contact with the road has a tread depth of 2/32” or less, whichever comes first.
Flat Tire Changing Assistance. Enrolled customers are eligible for reimbursement of up to $75 for roadside flat changing assistance provided by a licensed service provider. This is limited to the roadside installation of the customer’s own usable spare tire. Customer must have a spare tire. The customer would pay the service provider for flat tire changing and then be reimbursed.
Flat Tire Repair. Enrolled customers are eligible for Flat Tire Repair up to $20 per tire. This repair would include labor and patch. Reimbursement is limited to two flat tire repair claims during the coverage terms of 3-Years/36 months. The customer would pay the service provider for flat tire repair and then be reimbursed.
Note: The stock lug nuts (13/16”) prove to be too large when used in conjunction with these wheels. Please take a look at the Lug Nut Ordering Options above for some compatible options.
Fitment: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Details
Mounting & Balancing: AmericanMuscle offers professional mounting and balancing on all wheels and tires when purchased together on the same order for an additional fee. This will allow you to swap out your old wheels for your new set when they arrive. We even offer Free Nitrogen tire fill.
What is TPMS? The Tire Pressure Monitoring System (TPMS for short) is a factory installed safety feature on all 2007 and newer Ford Mustangs that alerts you when your tire pressure drops to an unsafe limit.
How do I keep my TPMS feature? Aftermarket wheels do not come with TPMS sensors. However, if you select 'Add TPMS Sensor Kit' and your specific year range from the options listed above, we'll install the TPMS Sensors in your new wheels free of charge!
Difficulty Level:Simple installation for anyone
|Size:||19x9 / 10||Finish:||Gunmetal|
|Placement:||Front and Rear||Centercap Size:||Included|
|Back Spacing:||6.4" (163mm) 7.1" (181mm)||Offset:||+35mm (1.4") +42mm (1.7")|
|Bolt Pattern:||5x4.5" (5x114.3mm)||Weight:|
|Material:||Aluminum||Lip Size :||N/A|
|Best Tire :||Included||Year/Model:||2005-2014 V6, GT, Bullitt & Shelby GT500|
KEY: 10-8.6 Oh Yeah!, 8.5-6.6 Above Average, 6.5-4.6 Average, 4.5-2.6 Acceptable, 2.5-0 Unacceptable
I wanted a square set up and the 19x10 works well with 285/35/19 on all four. It took quite a bit of research to see if the 19x10 would clear the Brembo calipers up front. Fitment is great with room to ... spare. Had one of the wheels show up with a bent lip and AM stepped up above and beyond to help get a new wheel. Good service. Must have been dropped in the shipping process. The wheels are light and price point is fair for what you get. The concave look on all four is sweet and with the 285's the car just looks nasty!
These are very high quality wheels for the price. The tires look mean and perform well. It is super convenient to have a set of wheels and tires come already mounted, balanced and ready to install. They ... arrived very quickly after ordering, nicely packaged as to avoid any damage in transit. I couldn't be happier with the purchase and the new look of my car.
Can I use the stock tpms sensors with these wheels if I have the new valve stems that the sensors screw onto that the 10-14's use?
You will be able to use your stock TPMS sensors as long as they can screw into the valve stem.
wheel color is it gloss gunmetal or textured gunmetal ?
Wheel Weight? What is the weight of these wheels individually and the weight of the wheel when the tires are mounted? Thanks!
Hello, to answer your question regarding the Staggered Forgestar CF5 Gunmetal Wheel & Sumitomo Tire Kit - 19x9/10 (05-14 All) we looked for the listed weight in our system. The wheels and tires are weighted as such: 19x9 Gunmetal CF5 Wheels: 30.8lbs 19x10 Gunmetal CF5 Wheels: 31.5lbs Sumitomo High Performance HTR Z III Tire - 245/45-19: 25lbs Sumitomo High Performance HTR Z III Tire - 275/40-19: 30lbs So your fronts will weigh 55.8lbs and your backs will weigh 61.5lbs, this is without considering the balancing weights of course.
Installation Time:Full Day
Installation Time: Less than 1 Hour
November 09, 2014
Review from Forgestar CF5 Monoblock Gunmetal Wheel - 19x10 (05-14 All)
19x10 square setup
I wanted a square set up and the 19x10 works well with 285/35/19 on all four. It took quite a bit of research to see if the 19x10 would clear the Brembo calipers up front. Fitment is great with room to spare. Had one of the wheels show up with a bent lip and AM stepped up above and beyond to help get a new wheel. Good service. Must have been dropped in the shipping process. The wheels are light and price point is fair for what you get. The concave look on all four is sweet and with the 285's the car just looks nasty!
Bang for your Buck 4
December 15, 2015
Review from Staggered Forgestar CF5 Monoblock Gunmetal Wheel & Mickey Thompson Tire Kit - 19x9/10 (05-14 All)
These are very high quality wheels for the price. The tires look mean and perform well. It is super convenient to have a set of wheels and tires come already mounted, balanced and ready to install. They arrived very quickly after ordering, nicely packaged as to avoid any damage in transit. I couldn't be happier with the purchase and the new look of my car.
Installation Time: Shop Install
February 25, 2012
Review from Forgestar CF5 Monoblock Gunmetal Wheel - 19x10 (05-14 All)
Love the look of the Forgestar CF5's, gives the car a much more aggressive look. [IMG]http://i881.photobucket.com/albums/ac14/Biv08SS/8cccc86d.jpg[/IMG]
Bang for your Buck 5
