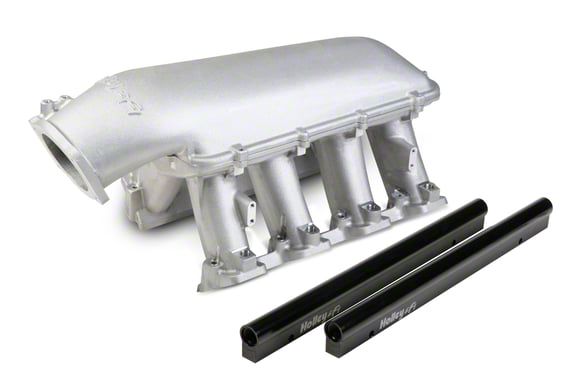

Holley Hi-Ram EFI Intake Manifold with 92mm Throttle Body Mount (98-02 5.7L Camaro)Find parts that fit my vehicle
Item CC19042
Sale
On Sale
-10% $1,060.16 each Was $1,177.95
Military, Medical & First Responders
$53.01 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Modular Design Accepts Wide Range Of Carbureted And EFI Tops
- Runner Length Of 6.58 Inches With Tapered Cross-Section From 4.25 To 2.53 Square Inches
- Single Plane Hi-Ram Manifold For Naturally Aspirated Or Forced Induction Engines
- Compatible With GM LS1/LS2/LS6 Cathedral Port Cylinder Heads
- Designed For Engines Between 6.0 To 7.0+ Liter Displacement
- Max Power Potential At 7000-8000+ RPM Operating Range
- Cast Aluminum Construction For Durability
- EFI Fuel Rails Machined For -8AN O-Ring Fittings To Support High Fuel Flow
- Total Height With 92mm EFI Plenum Top Is 12.32 Inches From Engine Block Lifter Valley Cover Flange
- Port Dimensions Are 2.49 Inches In Height By 1.21 Inches Wide
- Mounting Flange Uses Standard Molded O-Ring Gasket Compatible With LS3
- Plenum Top Gasket Uses 3/32 Inch Round O-Ring Cord
- Throttle Body Flange Located 8.42 Inches High, 3.84 Inches Forward, At A 25 Degree Downward Angle
- Includes Fuel Rails And Gaskets But Does Not Include Throttle Body Or Injectors
- Includes Vacuum Ports For Additional Connections
- Recommended For Performance Use In Forced Induction Applications
- Removable Top/Lid For Easy Access; Runners Are Not Removable
- Standard 92mm Throttle Body Bore Diameter
- Single Plane Manifold Type
- Natural Cast Finish
- Manufacturer’s Limited 90 Day Warranty
Description
High-Performance Intake Manifold. The Holley Hi-Ram EFI Intake Manifold with 92mm Throttle Body Mount is engineered to provide a modular and versatile induction solution for high-output GM LS1, LS2, and LS6 engines. It’s designed to optimize airflow for naturally aspirated and forced induction setups, helping maximize horsepower and torque in racing applications where superior airflow and tunability are desired.
Construction and Appearance. Constructed from cast aluminum, this intake manifold features a natural finish that highlights its durable and race-inspired design. The EFI fuel rails are machined for -8AN O-ring fittings, ensuring reliable fuel delivery while reducing pressure pulsations. The tapered runner cross-section supports optimal airflow across a wide RPM range.
Installation. Installation requires a moderate level of mechanical skill but does not require drilling or other major modifications. It mounts using standard LS3 style molded o-ring gaskets and includes all necessary gaskets for a proper seal, simplifying installation on compatible engines.
Warranty. This product comes with a manufacturer’s limited 90 day warranty covering defects in materials and workmanship.
Application. This intake manifold is compatible with GM LS1, LS2, and LS6 cathedral port cylinder heads and designed for engines between 6.0 to 7.0+ liters displacement. It is recommended primarily for performance and racing use, including forced induction applications. Specific vehicle fitment such as the 1998-2002 5.7L Camaro is not guaranteed and should be independently verified to ensure compatibility.
Holley 300-122
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Intake Manifold
- (1) Throttle Body Mount
- Gaskets
- Hardware
- Instruction Manual
4.9
Reviews of Holley Intake Products (8)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Camaro
- Z28 - 98, 99, 00, 01, 02
- Z28 SS - 98, 99, 00, 01, 02
