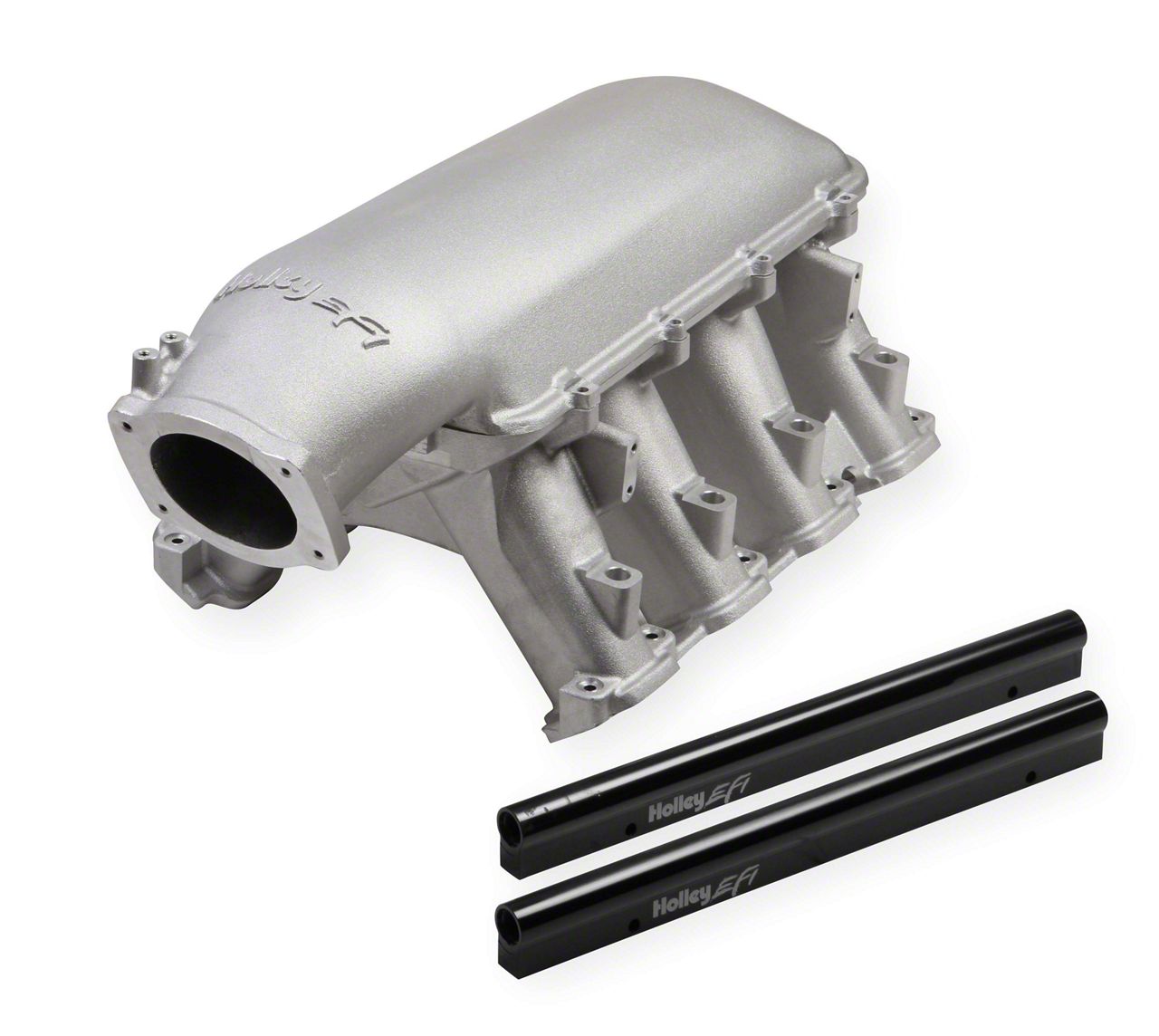

Holley Corvette Gen V LT1 Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount, Port EFI Provisions and Fuel Rails 300-141 (14-17 Corvette C7, Excluding Z06)

Name: Holley Gen V LT1 Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount, Port EFI Provisions and Fuel Rails (14-17 Corvette C7, Excluding Z06)
Brand: Holley
SKU: CV5179
Price: 1349.95 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Product Information

Features, Description, Reviews, Q&A, Specs & Installation

Features

GM Gen V LT1 Hi-Ram, 1 x 92mm LS Throttle Body Longitudinal Mount with Port EFI Provisions and Fuel Rails
Port Size: 2.06” High x 1.53” Wide
Overall Height: 13.34” with EFI Top 95mm or 105mm
O-Ring Seals at Cylinder Heads and Plenum Top
Available with or without Injector Ports in the Runners
Rear of Plenum Machined for MAP and Three Vacuum Ports
Increased Runner Wall Thickness for Custom Porting at the Plenum-to-Runner Entry on Each Runner
Head Flange Has Clearance for Fuel Supply to High-Pressure Pump
Several Top Options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or Blank Flange for Custom Throttle Bodies
Height at Plenum Flange: 9.44”
Intakes with Injector Ports Include Fuel Rails with Dual Mounting Length Options of 1.48” or 2.56” O-Ring to O-Ring Injector Length
Easy Assembly with Top-Mounted Screws on Plenum Top, All Except Front Two Screws
Modular Design with Removable Top for Versatility
Large Plenum Volume of 549 Cubic Inches with 1 x 95mm or 1 x 105mm Throttle Body Top
A-B Height: 12.10” with Carb Style Top 2 x 4150 or 2 x 4500
Fuel Rails are Anodized, Laser Etched, and Machined for 8AN O-Ring Fittings at Each End
3500-8000+ RPM Power Band
Runner Length Approximately 6.5”
Fits 2014-2017 Corvette C7 Models, Excluding Z06

Description

Performance Intake Manifold. The Holley Gen V LT1 Hi-Ram Intake Manifold features a 92mm LS throttle body mount, port EFI provisions, and fuel rails to optimize airflow for GM Gen V 6.2L LT1 engines. It is engineered to enhance engine breathing and support high RPM power bands, making it suitable for racing and high-performance applications.

Construction and Appearance. Made from cast aluminum with a natural finish, this manifold includes O-ring seals for a secure fit. The design features increased runner wall thickness to facilitate custom porting, and a modular removable top for ease of disassembly and adaptability to different induction setups.

Installation. The intake manifold is designed for direct bolt-on fitment with GM LT1 engines that utilize 92mm throttle bodies. Its modular top and top-mounted screws enable straightforward installation without the need for drilling or extensive modifications.

Warranty. This product is backed by a manufacturer’s limited 90-day warranty.

Application. Specifically designed to fit 2014-2017 Corvette C7 models, excluding the Z06 variant.

Holley 300-141
