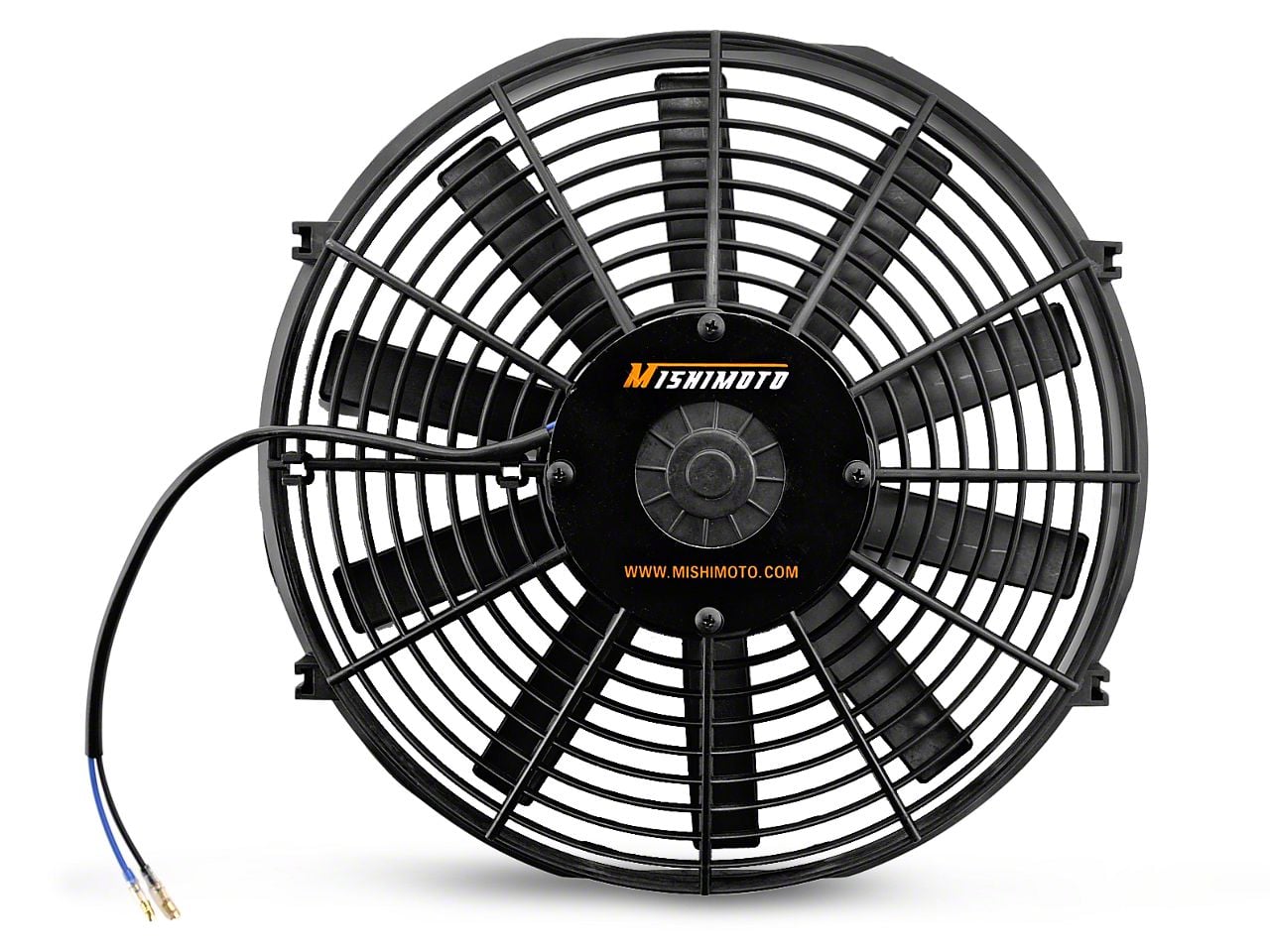

Replace or Upgrade. Whether you're replacing a broken stock fan or upgrading, this 14" Slim Mishimoto High Performance Fan will increase your cooling capacity. Its slim fit is the answer to fitment problems with other aftermarket products and if you need more space for major mods.
Keep Cool. If you have serious mods or let your Pony stretch its legs on the track or strip, it's critical to keep engine temps down to prevent expensive problems. Even daily driven 'Stangs can overheat if the conditions are tough, like in bumper-to-bumper traffic, causing permanent engine damage. Protect your investment with this high performance Mishimoto slim radiator fan.
Ultra Slim Design. Unlike your bulky stock fan, which takes up a lot of room, the Mishimoto slim radiator fan can be easily installed flush against your radiator leaving lots of room for other performance parts.
Application. Thanks to the Universal Fan Mounting Kit, the Mishimoto fan can be mounted to any radiator. It can also be mounted in the most convenient position to allow room for other aftermarket parts.
Mishimoto's "No Questions Asked" Limited Lifetime Warranty
Fitment: 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
October 27, 2019
Not the greatest
After installing it, it wouldn't stay tight with the clips that were sent with it. Was really loose and I didn't trust it was safe for engine. so after finding out that no one sells a shroud that will work with it, had to buy the 16 inch fan that comes with a shroud. If a shroud is wanted, and in my opinion it's needed, will have to purchase a fan with shroud to safely cool if is in a daily driver.Helpful (0)
August 04, 2019
Would make a great secondary or puller fan
Don't be an idiot like me and expect this little guy to cool your 302. The fan worked great mechanically. Never any issues there. But she's just tooo small without the cfm to back it up. Wire it backwards and use it as a puller, as this little fan couldnt keep a ice cube cold on the North poleHelpful (0)
March 30, 2019
Great slim fan
Easy install and so far works great! Very quiet and pulls alot of air through the radiator...Helpful (0)
July 10, 2018
Don’t buy. Does not cool the car sufficiently. Was forced to buy a stock doorman replacement to properly cool my vehicleHelpful (2)
June 29, 2018
Noticed ac issue with it not cooling consistently. Found my stock fan not working,put this 14 inch mishimoto fan easily in about hour and a half. Air conditioner now cooling great!Helpful (2)
June 22, 2018
Very nice fan
Fan itself is great. Slimmer. Lighter. Does a great job cooling. My oem fan died. No more overheating. That's Mishi! However the hardware is terrible. Would suggest glueing the tabs in. And be gentle with the zip ties. They strip easy. Can now run the a/c all the time no issue! Don't get past r in normal!Helpful (2)
March 20, 2018
Fast shipping works great.. I recommend this to anyone doing upgrades.Helpful (1)
March 08, 2018
I see people saying that the car is still running hot? We’ll try to switch the black and blue wires around and it’ll solve the problem! I have a manual fan switch and it has my 97 GT running SUPER cool now.Helpful (3)
January 23, 2018
Great fit and easy install
It took me 10 minutes to set up the fan and another 20 to wire it.Helpful (2)
November 29, 2017
Decent fan bad hardware
Fan looks nice but hardware is junk. One of the zip ties wouldn’t secure. Contacted AM and they told me they’d send me a replacement. Checked email today and saw they want me to return the already installed kit for an exchange. I need 1 tie. I’m not ruining my fan or radiator to return some junk parts. And this is a daily. Shopping with late model from now on.Helpful (3)
I need to know if this will work! My 03 V6 stangs fan went bad i think. The fan made a loud bang then started making a loud clicking sound. the fan will still spin but wobbles, and it makes a loud clicking sound everytime it kicks on. so i unpluged it and run the heat on high and suffer. im wanting to go on a road trip here soon and need to know if this will work, also does it come with a motor?
This fan has a motor incorporated to the fan, and it will just use a power and ground to turn on, so this will work without any difficulties.
will this work as an accessory fan? I have an '09 mustang, i live in florida and i noticed that after driving for a while the engine bay gets really hot. would adding this fan on the front side of the radiator and wiring it up to be a pusher rather than a puller help cool down the engine bay ad get the heat out?
Reversing the polarity on the Mishimoto 14 in. Performance Slim Electric Radiator Fan will help reduce coolant temperature when combined with a primary fan, however, it is not designed to reduce the temperature under the hood. If you were looking to reduce overall under hood temperatures, we would recommend header wrap, and heat extractors or hood spacers to assist the removal of hot air.
Will this one cool better then the 2 12in fans from Mishimoto?
A single 14" Mishimoto fan will outperform a single 12" fan, however twin 12" fans will outperform a single 14" due to their higher combined airflow and larger surface area of the radiator covered.
How loud is it? i have a set already of electric fans but I'm looking for a quieter better set up, I can hear them over the engine.
Due to its nature as a single speed fan, the Mishimoto 14 in. Performance Slim Electric Radiator Fan will be fairly loud.
What are the fans dimensions ?
Unfortunately, the only dimensions we list for this fan is the diameter, the diameter of this fan is 328mm.
The Mishimoto 14 in. Performance Slim Electric Radiator Fan will not provide enough clearance for the OEM fan clutch and fan. A fan clutch functions thermostatically, mechanically locking the fan to the clutch at a specific temperature. There is no way to change this to operate electronically with the OEM fan clutch.
To fit two of these onto a radiator, you would need at least 28 inches across to allow these to clear, though 30 Inches would be preferred to allow adequate spacing.
The dimensions of this are 27x19x4.
You can wire the hot off of the battery with a 30A fuse and a relay which is grounded directly to the radiator support. The ignition trigger wire can be run through any 12V accessory wire.
There are multiple different ways that you can wire this fan. You can wire it to the inside of the car so that you can have control of when it comes on and turns off. Or you can connect it to the existing wire from the old fan. Below is a link to a Customer Submitted Installation Guide. This can help give you an idea of which way you would like to wire this fan. http://1.cdn.lib.americanmuscle.com/files/mishimoto-14in-slim-radiator-fan-install.pdf
