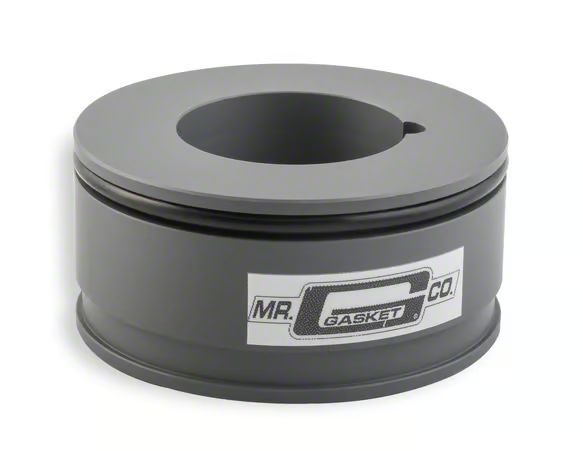

Mr. Gasket Timing Cover Alignment Tool (97-13 Corvette C5 & C6 w/o Seal in Cover)

Find parts that fit my vehicle Item CV10891
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Q&A, Specs & Installation

    Features & Specs

    • Fits GM LS Engines
    • Use Without Front Seal In Timing Cover
    • Legal For Sale Or Use On Emissions Controlled Vehicles, Uncontrolled Vehicles, And Racing Use Only Vehicles
    • Centers Front Timing Cover On Crankshaft
    • Prevents Front Damper Seal And Rear Main Seal Leaks
    • Can Be Used To Install Seal With Rubber Mallet
    • Plastic Construction With O-Rings
    • Made In The USA
    • Fits 97-13 Corvette C5 & C6 Without Seal In Cover

    Description

    Precision Alignment Tool. The Mr. Gasket Timing Cover Alignment Tool centers the front timing cover on GM LS series engines to the crankshaft centerline, eliminating common issues with seal leaks. Its use ensures proper alignment during installation and allows for easy seal placement by tapping the tool with a rubber mallet, safeguarding against improper seal fitment and leakage.

    Construction and Appearance. Manufactured from durable plastic with integrated O-rings, this tool is designed for precise fitment and effective sealing. Its lightweight construction aids ease of handling while maintaining the rigidity necessary for accurate alignment, and the materials ensure long-lasting performance without wear to engine components.

    Installation. Installing the tool is straightforward, requiring no drilling or modification to the engine. It fits directly into the timing cover opening, making the alignment and seal installation process simple even for moderately experienced technicians.

    Warranty. This product carries a manufacturer’s limited 90-day warranty against defects in materials and workmanship.

    Application. Designed specifically for GM LS engines, including 1997-2013 Corvette C5 and C6 models when used without the front seal in the timing cover, ensuring accurate alignment and preventing leaks in these applications.

    Mr. Gasket LSTC1

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 30 Minutes

    Difficulty Level:

    Simple installation for anyone.

    Installation Guides

      No guide available for this part yet.

    What's in the Box

    • (1) Timing Cover Alignment Tool

    Questions & Answers

    No questions about this product yet. Ask the First Question
