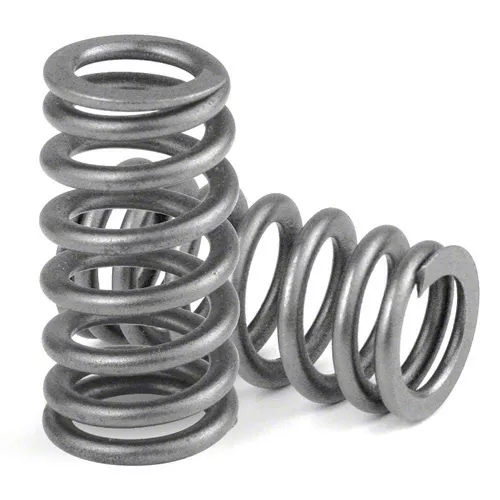

Comp Cams Valve Springs Kit Beehive (96-04 Cobra; 03-04 Mach 1)

Market Price $442.99 You Save 12% ($52.02)
Our Price

$390.97

FREE Shipping
  • Item 30126
  • MPN# 26123-32

Out of Stock Notify Me Choose options to add to cart

Features & Details

  • Turn More RPM.
  • OEM Type Durability.
  • Lighter Weight.
  • Superior Quality.
  • Set of 32 Springs.
  • Fits 96-04 Cobra & Mach 1.
Make More Power. To get the most power from your new camshafts, you need to add some high performance valve springs. The Comp Cams Beehive™ springs are a unique design that reduces valvetrain weight, allowing your engine to achieve higher peak rpm and allowing you to use higher-lift, more aggressive camshafts without sacrificing reliability.

Reliable and Durable. If you want to upgrade your Mustang to a hot cam but are concerned about long term reliability, Comp Cam's Beehive springs are the perfect addition to your Pony. These unique springs will keep your upgraded valvetrain in line, while delivering the power you want.

Application. These Comp Cams Beehive springs are designed for the 1996-2004 four valve V8 Mustangs. They are sold as a complete set of 32 springs.

Fitment: 1996 1997 1998 1999 2001 2003 2004 Details

What's in the Box
  • (32) Valve Springs
Installation Info
Tech Specs
Specifications:
  • Fits 1996-2004 4.6 4 valve V8 Mustangs
  • Sold as a set of 32 springs
  • OD: Top .959" Bottom 1.061"
  • ID: Top .636" Bottom .738"
  • Seat Pressure: 93 lbs @ 1.570''
  • Open Pressure: 198 lbs @ 1.020''
  • Coil Bind: .952"
  • Spring Rate: 191 lbs/in
Will it fit my Mustang?
  • Cobra - 96, 97, 98, 99, 01, 03, 04
  • Mach 1 - 03, 04

People Who Bought This Item Also Bought

Most Helpful Reviews

5/5
Must Have

First off I installed Comp 106400 (XE270BH-114) Cams in my Mach 1. these springs are not required in all camshaft swaps but for the price.....why not ? Then installation was no fun, you must have a spring ...

Read More
Helpful (1)

5/5
Beehive springs

Worked great with my stage 3 cams. The springs are noticeably thicker and stronger than the factory spring in my 03 cobra.

Helpful (0)

Overall Rating 5 out of 5 stars
Read All 2 Reviews

Customer Photos

You Might Also Like

1 Questions / 1 Answers

Ask a Question

What is the maximum camshaft lift these springs are good for?

Chris

  • The Comp Cams Valve Springs Kit Beehive can handle an average max lift of .51", however this will vary to slightly more or slightly less, depending on the profile of the cams you use. The Specs are as follows: Coil Bind Height 0.9in Open Height 0.97in Spring Rate 324lbs./in. Installed Pressure 90lbs Installed Height 1.47in. Open Pressure 252lbs Outside Diameter 0.943/1.105in Inside Diameter 0.580/0.742in Diameter of Outer Spring 0.58in Outside Diameter of Outer Spring 1.105in Spring Rate 324 lbs./in.

    Rob D

Helpful (0)

More Products You Might Like

Customer Reviews (2) Write a Review

Overall Rating 5.0

out of 5 stars

  • Performance Gain 5 5
  • Fit 5 5



  • 5/5

    June 05, 2011

    Must Have

    First off I installed Comp 106400 (XE270BH-114) Cams in my Mach 1. these springs are not required in all camshaft swaps but for the price.....why not ? Then installation was no fun, you must have a spring puller designed for a 4V Modular motor and this cannot be done safely without such. Great Springs at a great price and as always it had the item in hand in less than no time, thanks AM.

    Jeff K.

    Year: 2003 Submodel: Mach 1

    Helpful (1)

  • 5/5

    August 31, 2017

    Beehive springs

    Worked great with my stage 3 cams. The springs are noticeably thicker and stronger than the factory spring in my 03 cobra.

    Jesus

    Year: 2003 Submodel: Cobra

    Helpful (0)
