Features
- Bolt-in housing designed specifically for 2005-2014 Mustang models
- Strange heavy-duty Ford 9-inch housing
- Includes mounts for upper and lower control arms as well as housing ends
- Custom widths available at no additional charge
- Upper mount relocated 0.400 inch forward and 0.400 inch upward from stock position
- Usage of an aftermarket adjustable upper control arm is required due to mount relocation
- Pinion offset shifted 0.125 inch to the passenger side
- Constructed from 0.141 inch thick mild steel center housing for strength
- Durable 0.282 inch thick face plate
- Internal gussets reinforce the housing and support axle tubes
- Slot design allows for exceptional weld contact between housing and axle tubes
- Extended cover offers clearance for both 9-inch and 9.5-inch gear sets
- Fill and drain plugs simplify fluid changes and enable ring gear inspection
- Utilizes 3.250 inch outside diameter by 0.250 inch wall thickness DOM 1026 steel tubing for axle tubes
- Housing vent prevents pressure buildup inside and ensures seal integrity
- Includes heavy-duty Strange mounts for upper control arm, lower control arm, spring, shock, panhard bar, and bump stop
- Choice of forged chrome moly housing ends that accommodate 3.150 inch bearings
- Jig welded with internal and external welds for proper alignment and structural rigidity
- Fits 2005-2014 Mustang models perfectly
Description

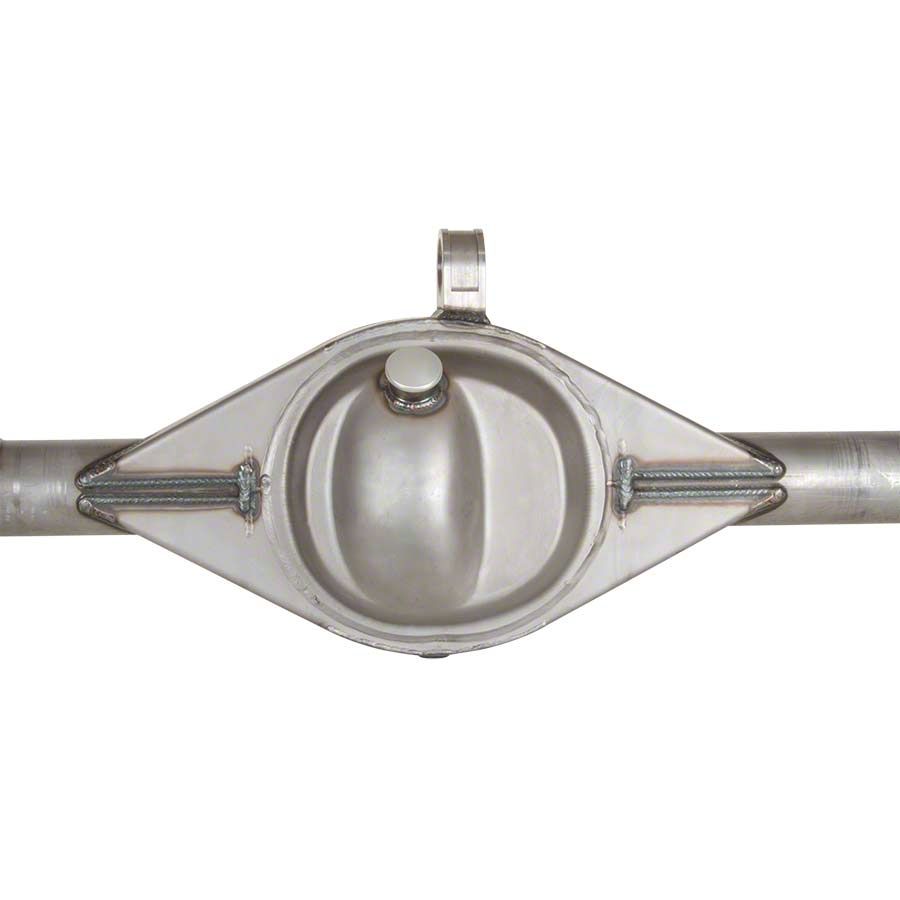

Premium Axle Housing. The HD 9-inch Ford Axle Housing with mounts and housing ends is a heavy-duty replacement designed to increase rear suspension strength and reliability. It provides secure mounting for the rear axle assembly in 2005-2014 Mustangs, enhancing chassis rigidity and supporting performance upgrades. This housing is ideal for racers and enthusiasts requiring durable, properly aligned axle support.
Construction and Appearance. Built from 0.141-inch thick mild steel center housing with a 0.282-inch face plate and reinforced internal gussets, this housing delivers exceptional strength and durability. The axle tubes are precision-formed from 3.250-inch OD by 0.250-inch wall thickness DOM 1026 steel tubing to withstand high loads. The housing is jig welded with both internal and external welds to ensure perfect alignment. High-quality forged chrome moly housing ends accepting 3.150-inch bearings provide a rugged, performance-oriented finish.
Installation. Designed as a bolt-in replacement, it installs without drilling or extensive modifications. Due to the relocated upper control arm mount, an aftermarket adjustable upper control arm must be used for proper fitment and suspension geometry.
Application. This housing is engineered specifically for the 2005-2014 Mustang, considering unique suspension mounting locations and a pinion offset of 0.125 inch to the passenger side.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Axle Housing Kit
