PLX DM-100 OBD2 Touch Multigauge (96-14 All)

Item 102108
AmericanMuscle no longer carries the PLX DM-100 OBD2 Touch Multigauge (96-14 All). Please check out Ford Mustang Gauges & Gauge Pods for an updated selection.

Features, Videos & Details

  • Multi-Gauge - Monitor Critical Systems
  • Color Organic LED Technology (OLED)
  • 4 Button Multi-Touch Screen Interface
  • Customizable Virtual Gauge Faces
  • Reads 26 OBDII Parameters
  • Reads and Clears Trouble Codes
  • Plug and Play OBDII Interface
  • Daisy Chain Up to 16 PLX Sensor Modules
  • Standard 2-1/16" (52.4mm) Size
  • Fits All 1996-2014 Mustangs

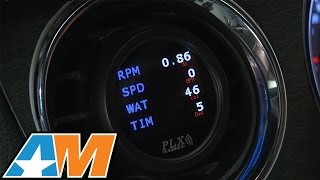

Review & Installation Video

Monitor Critical Systems. The DM-100 OBDII Touch Multi Gauge is a powerful scan tool, code reader, and performance gauge all in one. The DM-100 will allow you to monitor the critical systems of your Mustang through the onboard diagnostic OBDII port.

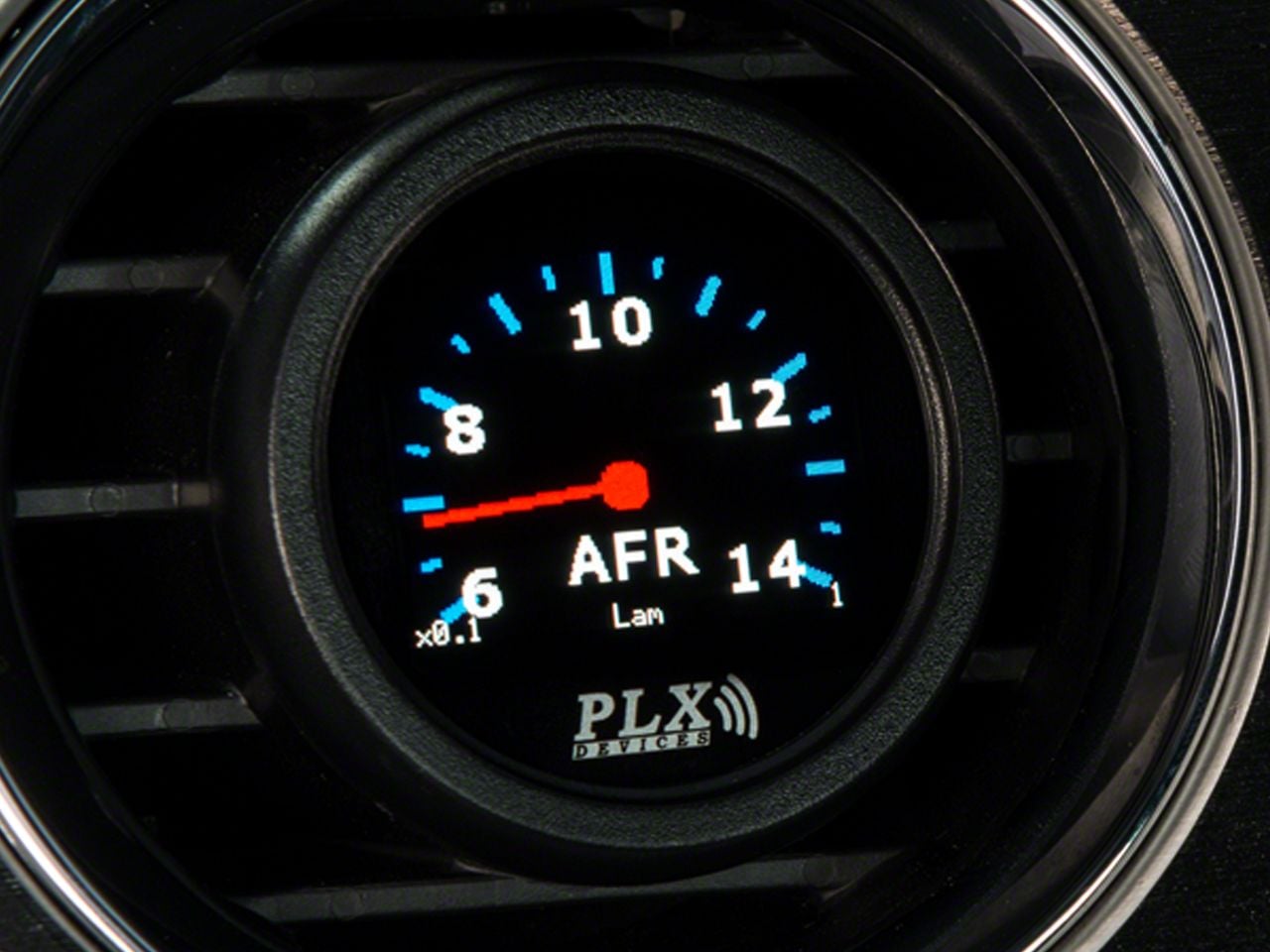

OLED Color Display. The PLX DM-100 OBDII Touch Multi Gauge is a SEMA award winner for it's ultra thin (18mm) design and its bright easy to read display that features cutting edge full color Organic LED Technology (OLED).

4 Button Interface. Featuring a 4 button multi-touch interface that is built right into the gauge (located top, bottom, right, and left) makes navigating between the 26 OBDII sensors and 15 gauge views  extremely easy.

Customizable Gauge Styles. The DM-100 Touch Multi Gauge features custom gauge faces, customizable colors and multiple gauge views, with additional faces available for download at PLX's website.

Diagnostics. The DM-100 OBDII Touch Multi Gauge not only monitors your vital systems, but can also be used as a diagnostic scan tool. Save yourself hundreds of dollars each year by reading and clearing your own trouble codes rather than paying a dealer to do the same. Its as easy as a few simple steps.

Plug-n-play Installation. Installation of the DM-100 OBDII Touch Multi Gauge is accomplished by simply plugging the supplied special proprietary connector into the OBD2 port below the steering wheel. It is literally a plug-and-play install.

Application. The DM-100 OBDII Touch Multi Gauge is specifically designed for use on 1996 to 2014 Mustangs equipped with an OBDII port, including the V6, GT, Bullitt, Mach 1, SVT Cobra, BOSS and Shelby GT500 models. The DM-100 Touch Multi Gauge is designed to fit into most aftermarket 2-1/16" (52 mm) gauge pods.

Sample OBDII parameters - Not all are supported by every vehicle:
  • RPM
  • MPH - Vehicle Speed
  • Throttle Position
  • Engine Load
  • Absolute Engine Load
  • Engine Timing
  • Air Intake Temperature
  • Coolant Temperature
  • Ambient Air Temperature
  • Intake Pressure (MAP)
  • Air Flow (MAF)
  • Fuel Pressure
  • Fuel Pressure Relative
  • Fuel Level
  • Barometric Pressure
  • Catalytic Converter Temperature
  • ECU Voltage
  • OBD Type
  • Short Term Fuel Trim (Bank 1)
  • Long Term Fuel Trim (Bank 1)
  • Short Term Fuel Trim (Bank 2)
  • Long Term Fuel Trim (Bank 2)
  • Oxygen Sensor Voltage1 (Bank 1)
  • Oxygen Sensor Voltage1 (Bank 2)
  • Oxygen Sensor Voltage2 (Bank 1)
  • Oxygen Sensor Voltage2 (Bank 2)

Technical Note. Not all parameters are supported by every vehicle. Depending on your vehicle and the application that you choose to use, sensor support will vary. However in most vehicles the above sensors are reported through the onboard diagnostic port.

Fitment: Details

CA Residents: WARNING: Cancer and Reproductive Harm -

What's in the Box
  • (1) Multi Gauge Control Module
  • (1) Gauge with Touch Screen
  • 4ft power wire with 2.1mm connector
  • 1ft Serial Cable
  • 6ft USB Cable
  • (1) Comprehensive User Guide
Installation Info
Tech Specs

    Customer Photos (2) Submit Your Photo

    View All 2 Photos

      Questions & Answers (1)

      1 Top Rated Question

      1/4 mile? Does it have a screen so you can test your 0-60 time and 1/4 mile time?

      • Yes

      Helpful (0)
      Post Your Question

        Customer Reviews (1) Write a Review

        Overall Rating 2

        out of 5 stars

        • 2/5

          June 23, 2014

          Looks great, feels cheap and in nearly all cases, soldering is required.

          For me they felt cheap and some of the male and female adapters weren't designed together. For instance, the RCA plug needs to be pressed into the female end so hard just so the side screws can get any thread contact, that it feels like your going to bend or break the female end. Clearly the screws aren't long enough. When daisy-chaining a DM-6 on this with every sensor aside from boost, you need to splice and solder in an 8v regulator. I don't mind soldering, just not on a product claiming "plug and play" installation. I wasn't expecting to finish building the product after opening it. It seems like there are a handful of that should have been ironed out before they released it.


          Year: 2014 Submodel: GT Philadelphia, PA

          Helpful (11)
