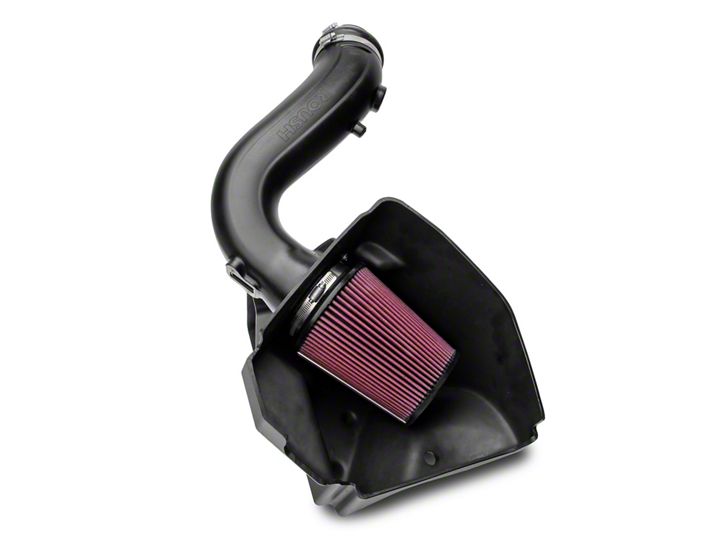

How to Install a Roush Cold Air Intake on your 2011-2014 Mustang V6

Installation Time

1 hours

Tools Required
  • 5/32” Allen Wrench
  • 3/32” Allen Wrench
  • 1/4” Drive Socket and Short Extension
  • 5/16” 1/4” Drive Socket
  • 10MM 1/4” Drive Socket
American Muscle
Shop Parts in this Guide

Included Parts:

Hump Hose
1/4" NPT Fitting
Qty

Desciption
2

1/4" 20 x 1/2” Button Head Bolt
2

1/4" Flat Washer
2

#8-32 x 3/8” Button Head Bolt
1
#48 Hose Clamp
1

#64 Hose Clamp
1

1

5/8” Aluminum Fitting
1

5/8” Grommet
1

1/4” NPT Plug
1

1

#20 Torx Bit
1

Weatherstrip

BEFORE:


1. Disconnect battery.
2. Loosen factory hose clamps.


3. Disconnect Mass Air Flow sensor. The picture below shows the underside of the harness (detached). Use a flat head screw driver to pull the red tab and the harness pulls off easily.


4. Remove the bolt that’s attached to the left fender (save bolt for later use) and remove the stock air box


5. Remove the factory air box grommets and install into the new Cold Air Dam.


6. The new Cold Air Dam is now ready to be installed into the factory location. Using the old bolt, fasten the new Air Dam to the left fender.


7. Remove the mass air sensor from the factory air box using the supplied #20 Torx Bit. Reinstall on the new intake tube using the supplied 8-32 Button Head Bolts. Note the position of the arrow on the mass air sensor.


8. On the other end of the new intake tube install the supplied 5/8” Grommet and 5/8” Aluminum Fitting as well as the plastic 1/4” Fitting (Automatic Transmissions) or 1/4” plastic Plug (Manual Transmission).


9. Install the supplied Hump Hose to the throttle body using the #48 Hose clamp. Then insert the new intake tube to the other side of the Hump hose using the #64 Hose clamp.


10. The other end of the new intake tube will attach to the new air dam with the supplied 2 1/4" 20 x 1/2” Button Head Bolts and 1/4" Flat Washers.


11. Install the new Air filter to the intake hose.


12. Tighten all your clamps down securely. Reinstall the mass air flow harness to the mass air flow sensor. Lastly, install the weather stripping around the new airbox and add your Roush decal.

AFTER:


This guide applies to Vehicle years: 2011, 2012, 2013, 2014 and Submodels: V6
