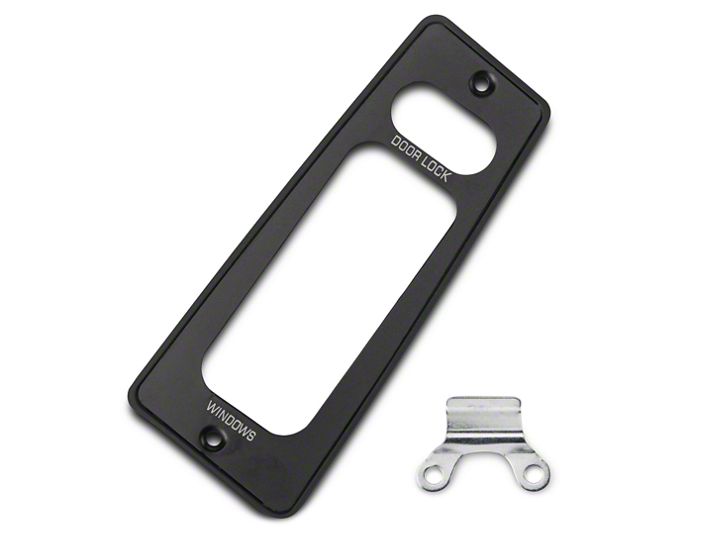

How To Install a Driver Side Window Switch Bezel - Convertible on your 1987-1993 Mustang

Installation Time

15 minutes

Tools Required
  • Phillips screwdriver
American Muscle
Shop Parts in this Guide

TOOLS REQUIRED: Phillips screwdriver


BEFORE


AFTER


REMOVAL PROCEDURE:

1. Remove the Phillips screws at the top and bottom of the switch bezel and set them aside. Lift assembly up, and out, from the top.


  1. The switch assembly is held to the back of the switch bezel by two Phillips screws. Remove them and set them aside.



  1. The switch assembly is simply lifted away from the bezel


4. The power lock switch and window switches are simply pulled off the connector with your fingers. You will probably have to wiggle the switch bases a little bit to get them to come loose.



INSTALLATION PROCEDURE:

1. With your fingers, simply plug the new switch into the connector plate. A little pressure will be required, but it is a perfect fit.



NOTE:

The door lock switch has a red tab at its upper left that corresponds with an opening in the switch plate. The window switch has a rectangular tab at its bottom that corresponds with an opening in the switch plate.



2. Use the original Phillips screws to reattach the connector plate to the switch bezel. The screw receptacles on the new parts are not threaded, so the screws will create the threads as they are fastened down.



3. Place the reassembled switch bezel back into the opening in the door panel. (No force is necessary, it should simply slip in.)


(Tip: The black finish had been worn off the original bezel screws in my Mustang. I took the original screw to my friendly local Ford dealer. Apparently these screws have been used for many years and are an in-stock item. The new screw restores the original factory finish look.)

Installation Guide Submitted by AmericanMuscle Customer Randy Hamrick on 10.27.15
