ZEX Mustang Blackout Nitrous System 82023B (86-04 V8)

ZEX Blackout Nitrous System (86-04 V8)

5 Reviews 10 Answers

Market Price $673.99 You Save 12% ($78.02)

Our Price

$595.97

FREE Shipping

Item 30140

Will this fit your Vehicle?

Ship to: Ashburn - 20149

Sorry, please enter a valid US or CA postal code

We're sorry, zip can't be updated at this time.

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

Buy Together

Current Item:
ZEX Blackout Nitrous System (86-04 V8)

Qty: 1

$595.97

MSD Digital Window Switch (96-14 All)

+$176.95
ZEX Nitrous Bottle Pressure Gauge (79-19 All)

+$43.49
ZEX Nitrous Dual Outlet Purge Kit (79-19 All)

+$136.99

Total Price with All Options:

Add All to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

Features & Details

Blackout Kit
Wet System
Gain Up to 125 HP
Advanced, Precise Electronic Controls
Throttle Position Sensor Activated
Works with Stock Fuel Rails
Includes 75, 100, and 125 Jets
Fits 1986-2004 V8 Mustangs

Product Resources

Customer Photo (1) Customer Reviews (5) Questions (9) & Answers (10)

Zex Blackout. Is the standard "Purple" Zex kit a little to flashy for your taste? Well then checkout the Zex Blackout Nitrous System available from AmericanMuscle. The Zex Blackout System delivers the same exact power as before just with a subtle new look. The kit features a black powder-coated bottle, plate, fittings and carbon fiber-style hoses for an unprecedented new look.

Gain Up to 125HP. ZEX Wet Injected Nitrous Systems include 75, 100, and 125 shot jets that will get your Pony flying down the track faster than you ever thought possible for less money than you'd believe. It doesn't get cheaper to add that much power to your Mustang.

Advanced Electronic Control. ZEX's Wet Injected Nitrous system uses patented "Active Fuel Control" that automatically adjusts nitrous fuel enrichment with bottle pressure. The result is that your engine never runs too rich or too lean, preventing engine damage. Unlike other less expensive systems, the ZEX "Wet" nitrous systems activate at wide-open throttle using advanced electronics that monitor your engine's throttle position sensor voltage to ensure activation at precisely the right time. This makes using your nitrous system very easy and reliable.

Better Nitrous Delivery. Unlike "dry" nitrous systems which inject nitrous directly, ZEX Wet Nitrous Systems connect to your fuel system and controls the amounts of fuel and nitrous using their management unit. The result is better control, complete fuel atomization, and more power.

Application. This Zex Blackout Nitrous Kit is designed for use on the 1986-2004 5.0 and 4.6 V8 Mustangs with the stock fuel rails. System requires a minimum fuel pressure of 40 PSI.

Technical Notes. Professional Installation recommended. Requires fuel pressure of 40 PSI.

Shipping Notes. This item ships ground only, expedite shipping is not available for this item

Fitment: 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details

MPN# 82023B

CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

What's in the Box

Hardware included:

(1) Nitrous Management Unit

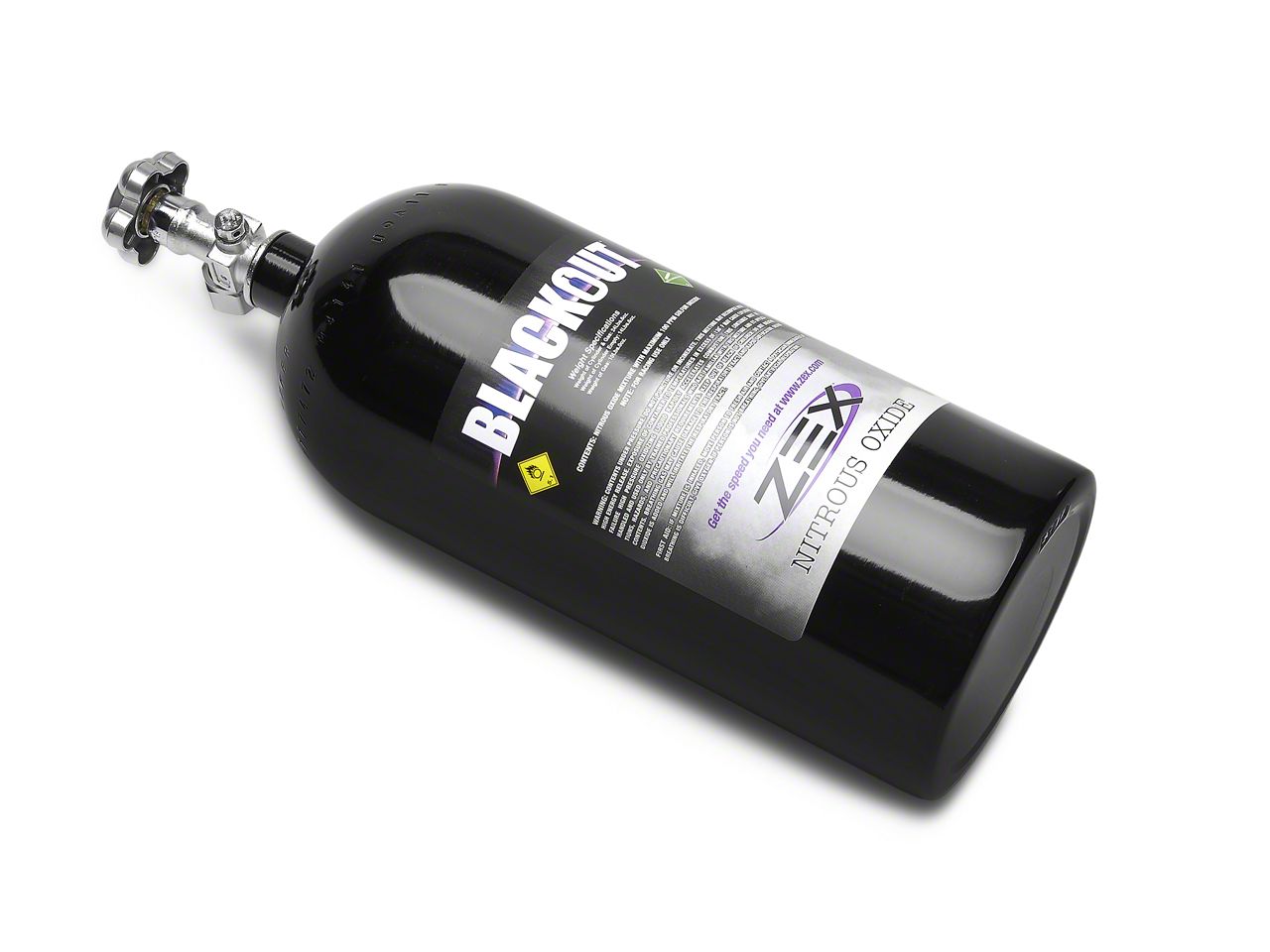

(1) 10 lb. Nitrous Supply Bottle (unfilled)
(1) Bottle Clamp (Short)
(1) Bottle Clamp (Long)
(2) Wet Nitrous Nozzle
(1) 24" -3AN Braid Hose Assembly
(1) 36" -4AN Hose Assembly
(1) 16' -4AN Braid Hose Assembly
(1) .026 N20 Fuel Jet
(1) .030 N20 Fuel Jet
(1) .034 N20 Fuel Jet
(1) .040 N20 Fuel Jet
(1) .046 N20 Fuel Jet
(1) .054 N20 Fuel Jet
(1) Arming Switch Wire Harness
(1) 10 ft. Red 18 Ga. Wire
(1) Switch Cover
(4) 5/16-18x1" Bolt
(4) 5/16-18 Nut
(4) 5/16 Flat Washer
(6) 8x1/2" Drill Tip/Phil Head
(1) 1/8-28 NPT Right Hand Tap
(1) 90 Degree -4AN Swivel Adapter
(1) 1/8 NPT Bulkhead Fitting
(1) Bulkhead Fitting Nut
(1) Fuel Tee Fitting
(1) -4AN to 1/8 NPT 90 Degree Fitting
(1) -4AN to 1/16 NPT Fitting
(1) Schrader Valve Core Tool
(2) Hose Clamp

Installation Info

Installation Time: (approx) 4 Hours

Difficulty Level:Light to Moderate mechanical skill required.

Installation Guides:

Manufacturer:
How to install a Zex Blackout Nitrous System on your 1986-2004 Mustang

Tech Specs

Nitrous Kit Specifications

Year/Model:	86-04 V8	Manufacturer:	Zex
Wet or Dry:	Wet	Included Jet Sizes:	75-125
Delivery System:	Nozzle	Bottle Size Included:	10lbs

Tech Guides:

Mustang Nitrous Systems Overview: Differences Between Wet and Dry Kits

Will it fit my Mustang?

Bullitt - 01
Cobra - 93, 94, 95, 96, 97, 98, 99, 00, 01, 03, 04
Cobra R - 93, 95, 00
GT - 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04
LX - 87, 88, 89, 90, 91, 92, 93
Mach 1 - 03, 04
Other - 86

Fits V8's Only

Questions & Answers (9)

5 Top Rated Questions

I have a 95 Gt goin with afr 165 heads custom cam for blower.d1 sc/ juice what kit would be good for my combo a wet kit like this one or a dry

A wet kit like the ZEX Blackout Nitrous System would be ideal. We do not typically recommend dry nitrous kits, as a wet kit adds its own fuel to accommodate for the nitrous, whereas a dry kit does not, making it very difficult to tune a car using a dry kit to run safely.

Helpful (1)

Will be adding this kit with your 262 comp cams along with my bolt ons. When I order a programmer can u write a custom time for the nitrous and also without spray? Also what fuel pump do u recommend running with this kit to ensure proper fuel pressure?

Our Bama department offers Custom tunes and can certainly do so for up to a 100 shot. When it comes to fuel components it is best to speak with the tuner involved with the build as the answer to that question is entirely dependent on the tunes written for your vehicle. I will lend Bama's customer service line below: 1-888-226-9764

Helpful (0)

92 GT do I need bigger injectors or any other supporting mods besides a tune?

The ZEX Blackout Nitrous System is a wet system, meaning it injects its own fuel, so injectors are not required. You will need to go with spark plugs of a colder heat range when using the nitrous kit, as well as a tune.

Helpful (0)

Fuel Injectors Will this only work with stock injectors. I have 40lb injectors and a 70 mm throttle body with trickflow intake. will i be ok? Im new to Nitrous .

The ZEX Blackout Nitrous System (86-04 V8) will be perfectly fine with your set up. You will have no issues using this nitrous kit.

Helpful (0)

Using SCT Chip My 1991 LX 5.0 is running the SCT Chip and needs it to run and idle properly. Do I need to send the chip to BAMA for a new nitrous tune if I use this system?

It would be best to have your Mustang tuned after installing the Nitrous System. You would need to send back the chip to be re-flashed/updated. Our Bama team can add a tune for up to a 100 shot. If you install this and need the updated tunes, please give our Bama team a call first, so they can get your order set up properly for the re-flash and give you all the necessary information. Hope this helps!

Helpful (0)

Not finding an answer? Ask your question! Post Your Question

4 More Questions

Stock Fuel Rails??? This kit says it is designed to work with the stock fuel rails. I have upgraded to BBK high flow fuel rails. Will this kit still work for my application? 1 answer

The ZEX Blackout Nitrous System (86-04 V8) is compatible with with your fuel rail application.

Helpful (0)

MAF I have the other upgrades necessary to put nitrous in my car bigger pump, injectors, ect. do I need to upgrade my mass air flow sensor as well to compensate for the extra air being pushed into the engine 1 answer

No, unless its a built engine and you are planning to go beyond 150 shot...

Helpful (0)

fuel presure the description says that you need 40 psi in your fuel system to use this kit is that a normal presure for a 02 gt or do i need to get a fuel booster or a bigger fuel pump i also have 24 lb injectors would change the presure in the lines 1 answer

Yes, 40 lbs. is normal pressure and what you should be running at right now unless you've added an adjustable fuel pressure regulator.

Helpful (0)

everything here? does this kit have everything needed to bolt on and go? or is there more to buy to get this hooked up and ready to start spraying? besides tuning of course. 2 answers

This will get you started as a basic kit, but I would recommend a bottle warmer and remote valve opener too.
Should have pretty much everything you need but check the instructions for suggested tools required and any misc items that could be either required or optional such as nylon tie downs to neatly anchor tubing & keep it away from other components...

Helpful (0) Show 1 more answer

Recommended For You

Customer Reviews (5) Write a Review

Overall Rating

4.8

out of 5 stars

Installation Time:Full Day

Installation Cost:$500-$1000

Performance Gain 4.75 4.8
Fit 4.75 4.8

no one in the world ever gets what they want, and that is beautiful

Sort By
Filter By

5/5

Installation Time: Full Day

February 14, 2018

Awesome!

First nitrous kit and Im hooked! Power gains are great for the money. Install took about 6 hours including bottle heater and pillar pressure guage. Only thing I didn't like was I bought the expensive autometer guage for the bottle pressure and the nitrous kit didn't have a fitting for it. For the money spent a $10 guage adapter should be standard. Plus American muscle doesn't carry the adapter for the guage.

AaronS

Year: 2003 Submodel: Mach 1

Helpful (8) Thanks for your input!
- Performance Gain 5
  5
- Fit 5
  5
5/5

Installation Time: Afternoon

August 29, 2017

Great setup

Zex black out is the way to go for more horsepower. Starting off with the 100 shot and feel is amazing. Just make sure you swap out the fuel pump so the engine gets the fuel it's needee

mikes99gt

Year: 1999 Submodel: GT

Helpful (8) Thanks for your input!
- Performance Gain 5
  5
- Fit 5
  5
5/5

Installation Time: Shop Install

Installation Cost: $500-$1000

June 26, 2017

Work great

Works great as advertised nothing bad to say can't beat the bang for your buck

AugustinP

Year: 2003 Submodel: GT

Helpful (8) Thanks for your input!
- Performance Gain 5
  5
- Fit 5
  5
4/5

Installation Time: Afternoon

September 15, 2015

Good bang for your buck

Install was pretty simple as long as you have some skill, the blackout kit looks great the only problem I had was the wet nozzle and fitting were never sent in my kit so Im not sure who to blame

Yas

Year: 2000 Submodel: GT Tampa,Fl

Helpful (11) Thanks for your input!
- Performance Gain 4
  4
- Fit 4
  4
- Bang for your Buck 5
  5
5/5

Installation Time: Afternoon

December 23, 2014

Awesome Nitrous kit!

The Zex blackout kit is awesome if you like the regular version and want more of a slick look then this kit is for you! Same thing just looks better has the carbon fiber look hoses which is my favorite part! Awesome hp gainer with little cash! ZEX nitrous kit is the way to go!

John99gt

Year: 1999 Submodel: GT Casa Grande, AZ, USA

Helpful (11) Thanks for your input!
