Aeromotive High Flow Fuel Rail Kit (96-98 GT)

AmericanMuscle no longer carries the Aeromotive High Flow Fuel Rail Kit (96-98 GT). Please check out 1994-1998 Mustang Fuel Delivery & Injectors for an updated selection.
$527.99
Market Price $917.29 You Save 42% ($389.30)
Clearance Price

Sold out

FREE Shipping

  • Item 33052

Will this fit your Vehicle?

    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Ultra-High Flow Fuel Rails Capable of Supporting Up to 2000 Hp
    • Billet Aluminum Construction
    • CNC-Machined
    • Red Anodized Finish
    • Stainless Steel Braided Fuel Lines Included
    • Fits 1996-1998 GT
    Ultra High Flow. Aeromotive High Flow Aluminum Fuel Rails replace those skinny stock fuel rails to reliably flow more fuel to your high performance engine. These Aeromotive fuel rails have a 5/8" inner diameter through-hole, providing better flow which is capable of supporting up to 2,000 horsepower in racing applications.

    Quality Construction. CNC machined to precise tolerances from lightweight billet aluminum each fuel rail is completed in a red anodized finish for corrosion resistance and features -8 AN high pressure ports. Required fuel lines are provided, made of 100% AN style stainless steel for maximum flow and safety.

    Application. This Aeromotive High Flow Fuel Rail Kit is specifically designed for use on the 1996 to 1998 GT Mustangs equipped with the 2 Valve SOHC 4.6L modular engine.

    Fitment: 1996 1997 1998 Details

    MPN# 14125

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

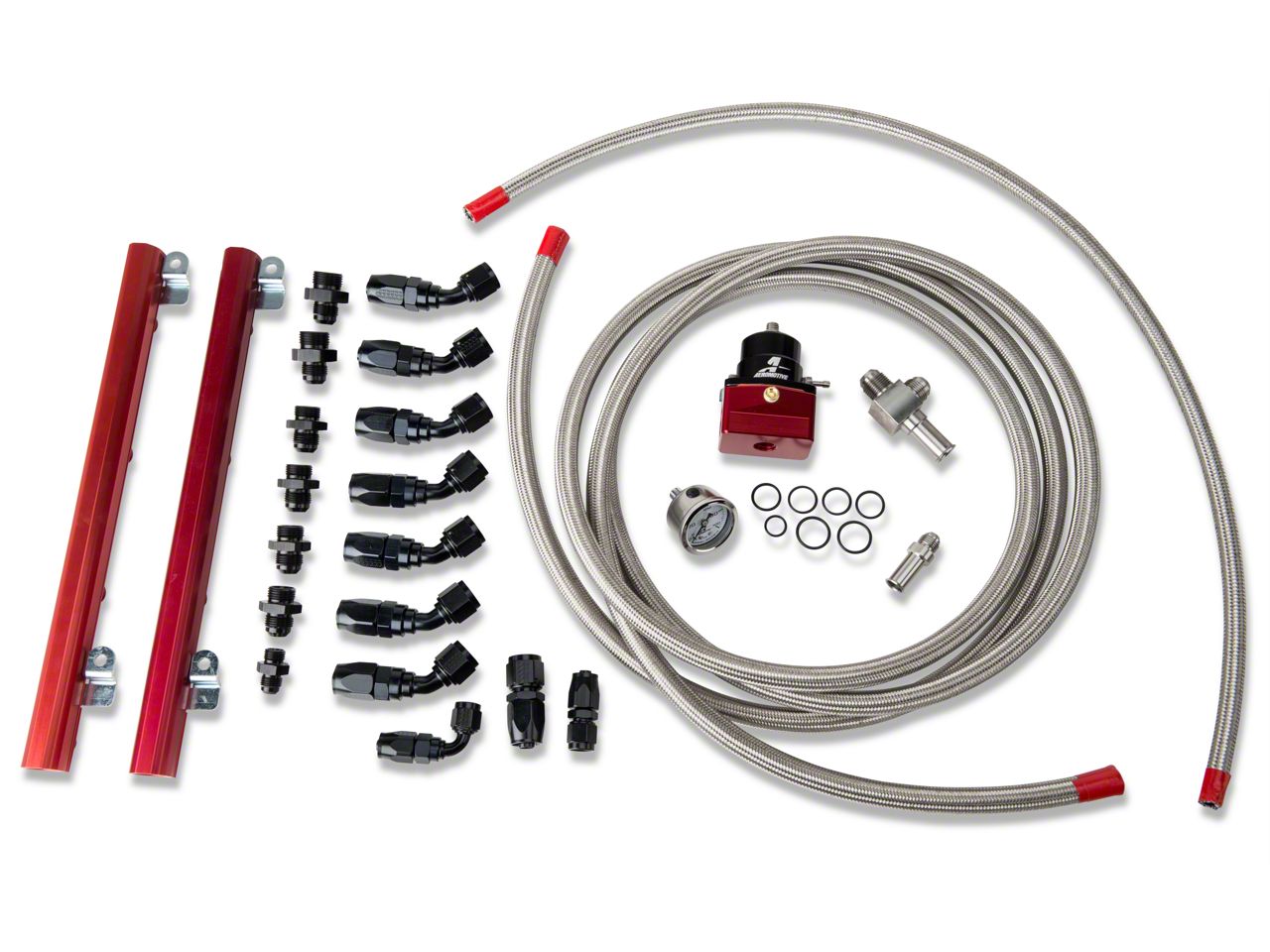

    What's in the Box
    • (1) Driver side Fuel Rail
    • (1) Passenger side fuel rail
    • (1) Supply Adapter Tee Fitting
    • (1) Return Adapter Fitting
    • (1) A1000 Injected Bypass Regulator
    • (4) –8/-8AN Cutoff Tapered Flare Fitting
    • (2) –10/-8AN Cutoff Tapered Flare Fitting
    • (1) –6/-6AN Cutoff Tapered Flare Fitting
    • (1) –6 Straight Hose End
    • (1) –6 90-Deg Hose End
    • (1) –8 Straight Hose End
    • (7) -8 90-Deg Hose End
    • 3ft of –6 Stainless Steel Braided Fuel Line
    • 12ft of –8 Stainless Steel Braided Fuel Line
    • (1) AN-06 O-Ring
    • (4) AN-08 O-Ring
    • (2) AN-10 O-Ring
    Installation Info
    Tech Specs
    Will it fit my Mustang?

      Customer Photos

        Questions & Answers (3)

        3 Top Rated Questions

        Will this system work if I have PI heads?

        • This system will not work with the PI heads since these have fitment for only 1996-1998 GT model Mustangs.

        Helpful (2)

        I installed the Aeromotive electric fuel pressure gauge in my Mustang. The lines go to a sensor which screws into the Schrader valve in the stock chrome fuel rail. I don't want to lose this gauge! Is there a place in this kit to attach my sensor like I have now?

        • The Aeromotive High Flow Fuel Rail Kit will not have a schrader valve, instead using a thread in fuel pressure gauge. If you were to source a thread in schrader valve, this could be installed in place of the mechanical gauge to allow you to connect your existing gauge.

        Helpful (0)

        The picture shows all fittings required and a fuel pressure gauge but does not list the fuel pressure gauge as a component in the box. Are all fittings and the gauge included?

        • The Aeromotive High Flow Fuel Rail Kit will not contain a gauge. Per Aeromotive: This kit contains the following parts:1ea p/n 14103 Ford 4.6L SOHC Fuel Rails 1ea p/n 15102 Supply Adapter Tee Fitting 1ea p/n 15101 Return Adapter Fitting 1ea p/n 13101 A1000 Injected Bypass Regulator 4ea p/n 15607 ORB-08/AN-08 Port Fitting 2ea p/n 15610 ORB-10/AN-08AN Port Fitting 1ea p/n 15606 ORB–06/AN-06 Port Fitting 1ea p/n 15650 AN–06 Straight Hose End 1ea p/n 15652 AN–06 90-Deg Hose End 1ea p/n 15653 AN–08 Straight Hose End 7ea p/n 15655 AN-08 90-Deg Hose End 3ft –6 Stainless Steel Braided Fuel Line 12ft –8 Stainless Steel Braided Fuel Line 1ea ORB-06 O-Ring 4ea ORB-08 O-Ring 2ea ORB-10 O-Ring https://www.aeromotiveinc.com/wp-content/uploads/2014/09/141-2504-0revB.pdf

        Helpful (0)
        Post Your Question

          Customer Reviews (2) Write a Review

          Overall Rating 4.5

          out of 5 stars

          Installation Time:Weekend

          Installation Cost:0-$100

          • Performance Gain 4.5 4.5
          • Fit 5 5



          • 5/5

            Installation Time: Afternoon

            February 21, 2017

            Aeromotive Fuel Rail

            This is a good quality product. There were no leaks after following the installation instructions. I can really notice the difference. I coupled this install with a Trickflow Top End re-build kit on my 1996 Ford Mustang GT 4.6L 2 valve.

            JimKid

            Year: 1996 Submodel: GT

            Helpful (13)

          • 4/5

            Installation Time: Shop Install

            Installation Cost: 0-$100

            May 04, 2016

            Worth The Price!

            It provides an noticeable difference performance wise an I personally would recommend this product to anyone who's trying to get to that next level.

            DJDAB

            Year: 2002 Submodel: GT

            Helpful (13)
