Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems (Universal; Some Adaptation May Be Required)
Item 465409
Our Price
$930.09
Military, Medical & First Responders
$46.50 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Works With All Brushed Type Fuel Pumps
- Typical Power Reduction To The Pump(s) Of 45-75% During Idle And Cruise Results In Reduced Heat Generation
- Includes A Stand-Alone MAP Sensor For Pump Speed Control
- All Pumps Are Under PWM Control
- Plumb The Fuel System Using Traditional Regulators, Filters, And Return Lines
- Developed For In-Cell Use Where The Primary Output Feeds A Lift And Pressure Pump, And The Secondary Output Controls The Third And Fourth Pumps, But It Works With Any Two, Three, Or Four Pump System
- For Forced Induction Systems Only; Contact Aeromotive For Naturally Aspirated Applications
- Reduces Fuel Pump Heat And Mitigates Vapor Lock Risk
- Primary And Secondary PWM Controller Outputs Allow Smooth Ramp-Up Of Pumps Without Relays Or Switches
- Includes 2.5bar Stand-Alone MAP Sensor Compatible With Supercharged Applications
- 110A Minimum Continuous Power Rating In A Compact Package
- Over-Temperature Shutdown With Automatic Reset
- Short Circuit Output Protection
- OEM Delphi/Aptiv Electrical Connections
- Cross-Linked Polyethylene Wiring And UL94 Rated Components Used Throughout
- Integrates With OE ECM To Maintain Safety System Functionality
- Operates Between 10-18v, Shutting Down Below 10v To Protect Against Lean AFR Conditions
- Easy Primary Pump Speed Adjustment For Idle/Cruise
- #3/#4 Pumps Ramp Automatically Without User Adjustments
- Significant Reduction In Average Fuel Pump Power Requirement Prolongs Pump Life
- Compatible With Standard Return-Type Plumbing Systems
- Recommended Fuel Pressure Around 43psi At Idle For Supercharged Applications
- Fuel Lines Should Be Sized AN8 Minimum Up To 1200hp, AN10 Above
- Fits Universal; Some Adaptation May Be Required. Designed Primarily For Forced Induction Systems With Up To Four Brushed Fuel Pumps.
Description

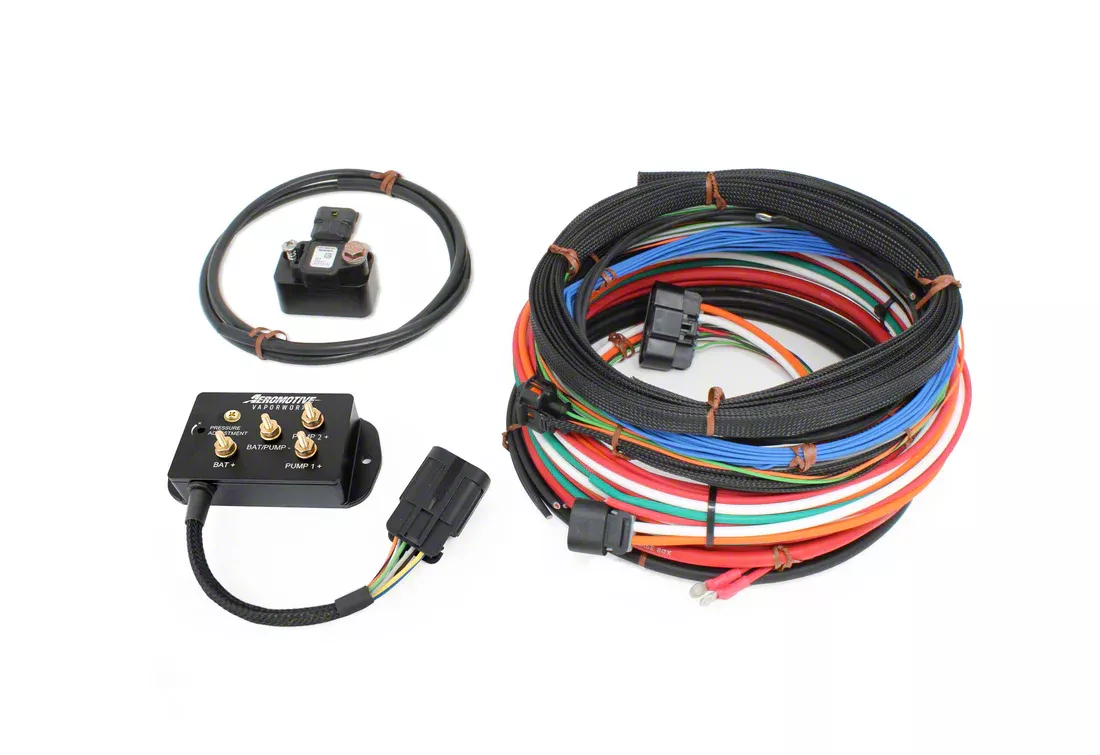

Advanced Fuel Pump Control. The Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems offers comprehensive pulse width modulation (PWM) control for up to four high-power brushed fuel pumps. It optimizes pump speed based on load demand using a built-in MAP sensor, effectively reducing heat generation and mitigating vapor lock in high-performance forced induction setups. This system ensures smooth pump ramp-up and integrates well into traditional return-style fuel plumbing setups.
Construction and Appearance. Constructed with automotive-grade materials, the FourX controller features robust cross-linked polyethylene wiring and UL94 rated components that promote durable and safe operation. Electrical connections utilize OEM Delphi/Aptiv terminals and seals, ensuring reliable integration with factory harnesses. The compact controller package is designed for in-cell use and built to withstand automotive environments with over-temperature and short circuit protection embedded.
Installation. The controller installs with moderate ease, requiring integration into existing fuel pump wiring and plumbing without the need for drilling. It replaces conventional relay and Hobb's switch arrangements, providing streamlined control without extensive modification.
Warranty. This product is backed by a one-year manufacturer warranty covering defects in material and workmanship.
Application. Intended universally for forced induction applications utilizing two to four brushed fuel pumps; some system adaptation may be necessary to tailor fit specific vehicle configurations and fuel system architectures.
Aeromotive 66171
