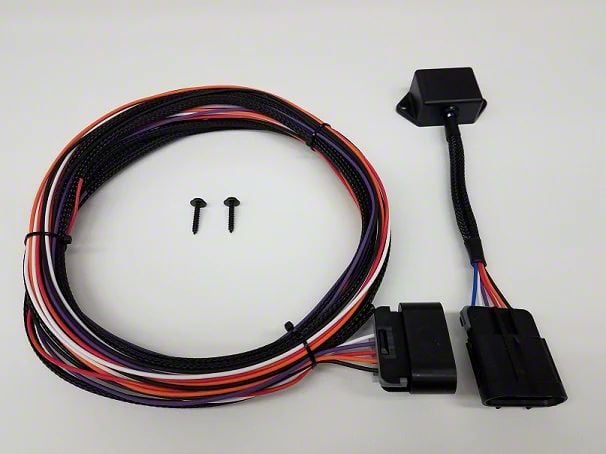

Aeromotive VaporWorx Intelligent Relay Control (Universal; Some Adaptation May Be Required)
Item 465421
Our Price
$127.30
Military, Medical & First Responders
$6.37 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Feature-Rich Upgrade To Relay Controlled Fuel Pump
- Provides Convenience And Safety Features
- Easily Adapted To New And Existing Builds
- Controls Negative Trigger Side Of Standard Automotive Relay
- Electric Fuel Pumps Usually Powered By Relay Turned On By Ignition Switch
- Fuel Pump Runs Only When Engine Tachometer Signal Is Detected
- Three-Second Initial Key-On Prime Cycle For Fuel Pump Relay
- Prime Cycle De-energizes Fuel Pump If Tachometer Signal Not Detected
- Accident Safety Shuts Off Fuel Pump Relay When Engine Shuts Down
- Manual Override By Grounding Violet Wire In Wiring Harness
- Provides Fuel Shutoff Control For Ford Racing Coyote Crate Engine ECM
- Includes Output To Activate VaporWorx PWM Control System
- Compact Size Fits Almost Anywhere
- 15 Inches Of XLPE Wire With Genuine Delphi Sealed GT150 Connector
- Includes Wire Braid For Protection
- Made In USA Using UL94 Rated Components And Assembled By VaporWorx
- Fits Universal; Some Adaptation May Be Required
Description
Intelligent Fuel Pump Control. The VaporWorx Intelligent Relay Control improves the safety and operation of electric fuel pumps by using the engine's tachometer signal to regulate when the fuel pump relay is energized. This ensures the fuel pump runs only when the engine is operating, preventing unsafe and uncontrolled fuel delivery during key-on/engine-off scenarios or accidents. The system is especially beneficial for carbureted engines and applications lacking modern ECM safety controls.
Construction and Appearance. Constructed with durable UL94 rated components, the unit features a compact design measuring approximately 1-1/2" wide by 1-1/4" deep and high, allowing installation in tight locations. It uses high-quality XLPE insulated wires terminated in a genuine Delphi sealed GT150 connector with included wire braid for added protection, ensuring reliable and long-lasting performance.
Installation. Installation is straightforward and typically involves controlling the negative trigger side of an existing automotive relay. No drilling is required, and the unit adapts easily to both new and existing fuel system builds with minimal effort.
Warranty. This product comes with a one-year warranty from the purchase date upon presentation of proof of purchase.
Application. Designed for universal use, some adaptation may be necessary depending on the specific vehicle and fuel system setup.
Aeromotive 66705
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
What's in the Box
- (1) Inline fuel filter with a 10um (micron) or smaller filtering element.
- (1) Green sealing ring.
- (1) VaporWorx supplied KPM1500 fuel pump module.
- (1) Fuel pressure sensor.
- (1) 1/8â€-NPT female fitting.
- (1) Braided loom.
- (2) 1/2†pieces of heat shrink tubing.
- (1) Three-cavity fuel pressure sensor plug.
- (1) GM LSA/LS9 3-bar MAP sensor P/N 12592525.
- (1) GT150 six-pin connector.
- (1) GT150 female connector body.
- (1) Purple cap.
- (1) Terminal position assurance clip.
- (1) “Y†connector with red wiring.
- (1) Fused link.
- (1) Ring terminals.
- (1) 8ga x 4’ black wire.
- (1) White fuel pump power plug.
- (1) Fuel pump power wiring harness.
- (1) Wire braid.
- (1) 60A fuse.
- (1) Fuel pressure gauge.
- (1) High-pressure regulator.
- (1) Pump 2+ positive bulkhead connection.
- (1) Drill bit.
- (1) Pump + label.
- (1) Pump – label.
