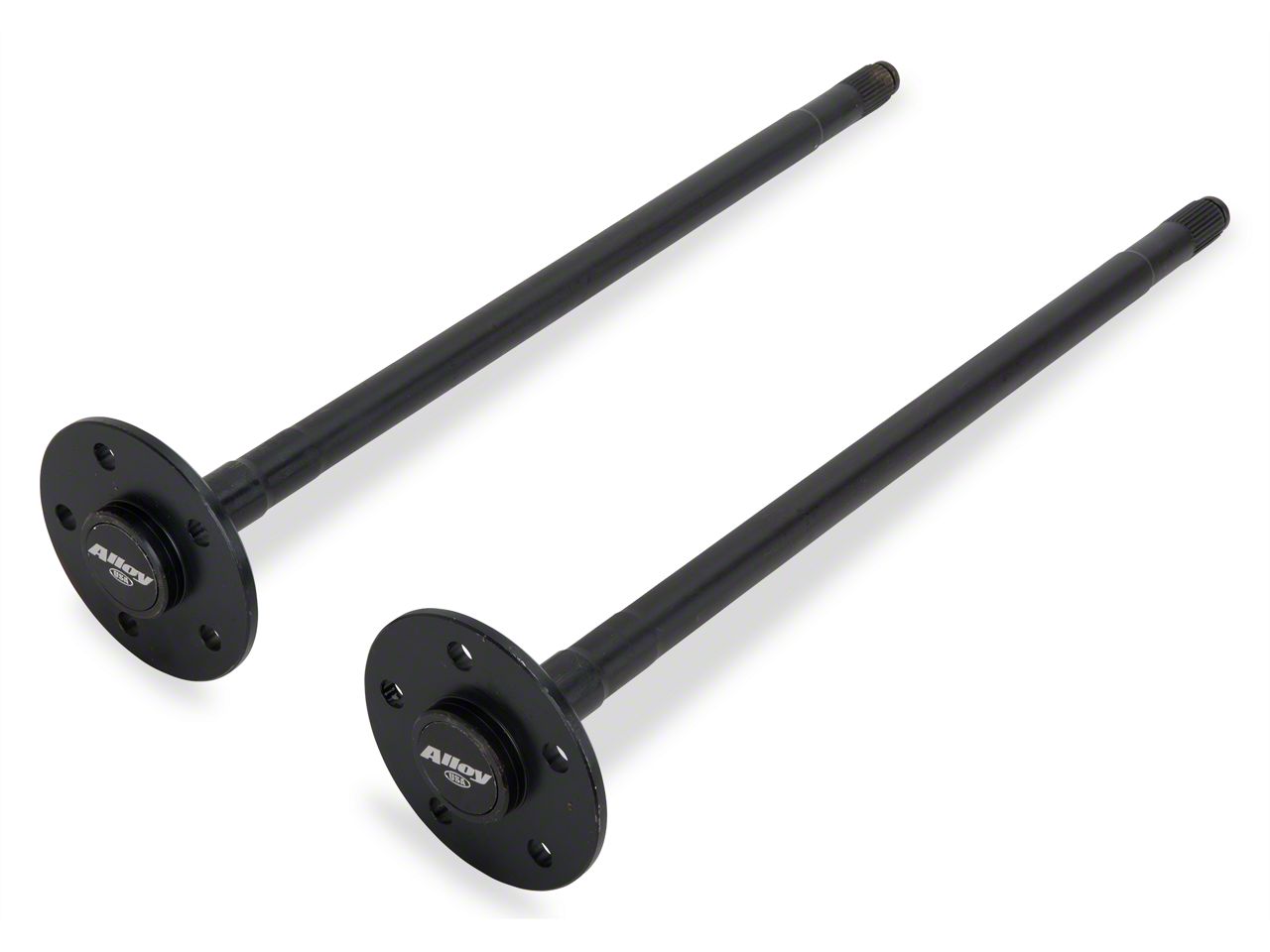

Alloy USA 8.8 Axles - 28 Spline 5 Lug (79-93 5.0L)

Item 18952
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $402.49 You Save 13% ($52.50)
Our Price

$349.99 (pair)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • 1541H Alloy Steel
    • 28 Spline
    • 5 X 4.5" - Five Lug Design
    • 10 Year Warranty!
    • Driver and Passenger Side Axles Included
    • Fits 1979-1993 5.0L Mustangs with 8.8" Rears and 5 Lug Wheels
    Performance Upgrade. If your Mustang is heavily modded or running a forced induction setup, your stock axles might be too weak to take the heat. These premium quality 1541H alloy steel axles will ensure that all the power and torque is transferred straight to the pavement - where it belongs.

    Stronger than OEM. Manufactured from high quality 1541H alloy steel using a computer controlled induction heat treatment that results in a stronger, more durable axle shaft. Alloy USA uses a cold-formed rolled spline process that produces an axle spline that is up to 35% stronger than standard cut splines.

    10 Year Warranty. These Alloy USA axles come with a 10 year limited warranty to be free of defects in material and workmanship from the date of purchase. Some limitations do apply. Please see the full Alloy USA Warranty disclosure for details.

    Application. This pair of Alloy USA 5-Lug 28 Spline Axles are specifically designed for use on 1979 to 1993 5.0L V8 Mustangs that have upgraded to 5 lug wheels with the stock 8.8" 28-spline LSD installed.

    Application Note: 1979-2004 V8 Mustangs came factory equipped with 28 spline axles, except for 2003-2004 SVT Cobras which were 31 spline. All 2005 and newer V8 Mustangs come equipped with 31 spline axles.

    Fitment: 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 Details

    MPN# 12180

    CA Residents: WARNING: Cancer and Reproductive Harm -

    What's in the Box
    • (2) 28 Spline Axles
    • (10) Wheel Studs
    • (2) Outer Axle Shaft Bearings
    • (2) Seals
    Installation Info
    Tech Specs
    • Splines: 28
    • Type: C-clip
    • Stud Pattern: 5 x 4.5"
    • Stud Type: Press in
    Will it fit my Mustang?
    • GT - 87, 88, 89, 90, 91, 92, 93
    • LX - 87, 88, 89, 90, 91, 92, 93
    • Other - 79, 80, 81, 82, 83, 84, 85, 86

    Fits 8.8" rear gears with 28 spline LSD or Spool only. Requires 5 lug wheels

      Customer Photos (1) Submit Your Photo

      View 1 Photo

        Questions & Answers (4)

        4 Top Rated Questions

        Will these axles work with a cobra brake kit on a Foxbody?

        • These Alloy USA 8.8 Axles will work with a Cobra brake kit in a Foxbody Mustang, as long as the stock Foxbody axle housing is used. If an SN95 axle housing is used, these axles will be too short

        Helpful (0)

        Is the register bore for a stock 79-93 brake setup or sn95?

        • The Alloy USA 8.8 Axles will have a hub flange designed to accept wheels with a 70.6mm hub bore.

        Helpful (0)

        Are these the same length as fox body original axles?

        • Yes, the Alloy USA 8.8 Axles are going to be the same length as the original axles just 5 lug.

        Helpful (0)

        What are the hole sizes? I would like to put ARP studs in these, but the ARP knurl is .625, so will they fit or do I need to drill/reamer them? I noticed that the Moser axles require you to put a .625 knurl size stud in (same size as the ARP).

        • Hi, These Alloy USA 8.8 Axles - 28 Spline 5 Lug are designed to use studs with a .614" knurl,i do not suggest resizing the stud holes.

        Helpful (0)
        Post Your Question

          Customer Reviews (5) Write a Review

          Overall Rating 5

          out of 5 stars

          • 5/5

            December 10, 2018

            Great quality and fitment

            Nice parts , bought on Black Friday for an awesome deal. Highly recommend these axles for a 5 lug swap.


            Year: 2012 Submodel: GT

            Helpful (3)

          • 5/5

            July 26, 2017

            Rear Axles

            Got these rear axles to do 5 lug conversion and love them


            Year: 1987 Submodel: Other

            Helpful (7)

          • 5/5

            May 18, 2015

            Nice Quality and fitment

            These axles fit perfectly and made it easy to swap to 5 lug. Installation is the same as any other axle and you should have some knowledge of how to take the rear apart before starting.


            Year: 1989 Submodel: Other Folsom, PA, USA

            Helpful (7)

          • 5/5

            March 12, 2014

            this product has great features

            very good product, no problems to install,nomodifications needed tanks american muscle.


            Year: 1991 Submodel: GT Gainesville, GA, USA

            Helpful (8)

          • 5/5

            April 19, 2013

            8.8 Axle review

            This came in a box bubble wrapped. It was hard to get to the parts but they were in perfect condition. All of the lugs pressed in well. I installed both of them in my axle and do not have any leaks or noise after putting 20k miles on them already.


            Year: 1993 Submodel: GT Nashville, TN, USA

            Helpful (9)
