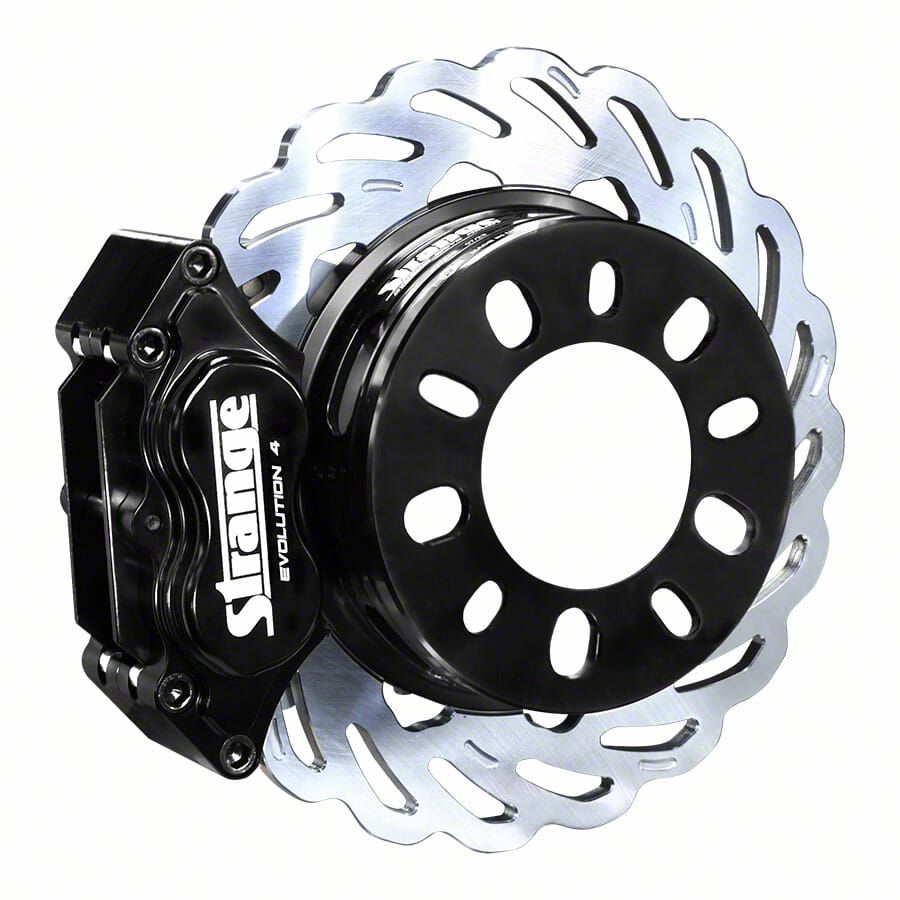

Evolution Dynamic Drive Mount 4-Piston Front Brake Kit with Slotted Rotors; Black Calipers (16-24 Camaro)

Reuses factory wheel hubs • Requires modification to knuckles ** See instruction sheet– B2798L / B2798R • Evolution S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight • DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retension designs • DDM system design is secured by an internal Spirlox, eliminating heavy bolts and hardware- further reducing rotating weight • Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity • Stainless steel Evolution S rotors are highly resistant to heat and corrosion • Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes • Scalloped design further reduces rotating weight • 11.250″ OD / .355″ thickness• Billet aluminum • Positions rotor for proper caliper alignment– B1900 • Stainless steel pistons mitigate heat transfer to brake fluid • Reverse dish pressure vessel piston maximizes stiffness • High retraction piston and O-ring design to eliminate drag during acceleration • Computer finite element analysis (FEA) optimized and field-tested calipers- Evolution 4 design improves piston retraction, pedal feel, and stiffness resulting in improved pad wear and exemplary braking efficiency • All pistons are 1.750″ for increased clamping force– B5010 • Best compound suited for front application • Excellent cold holding capabilities• Billet one piece design • Eliminates bolts, spacers & nuts that require periodic maintenanceAll Necessary Mounting HardwareCalipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fittingUse Teflon® tape or liquid on the pipe threads of the fitting Leave a few threads from the tip uncoated This will avoid depositing material inside the caliper Torque fitting to 25 ft lbs
