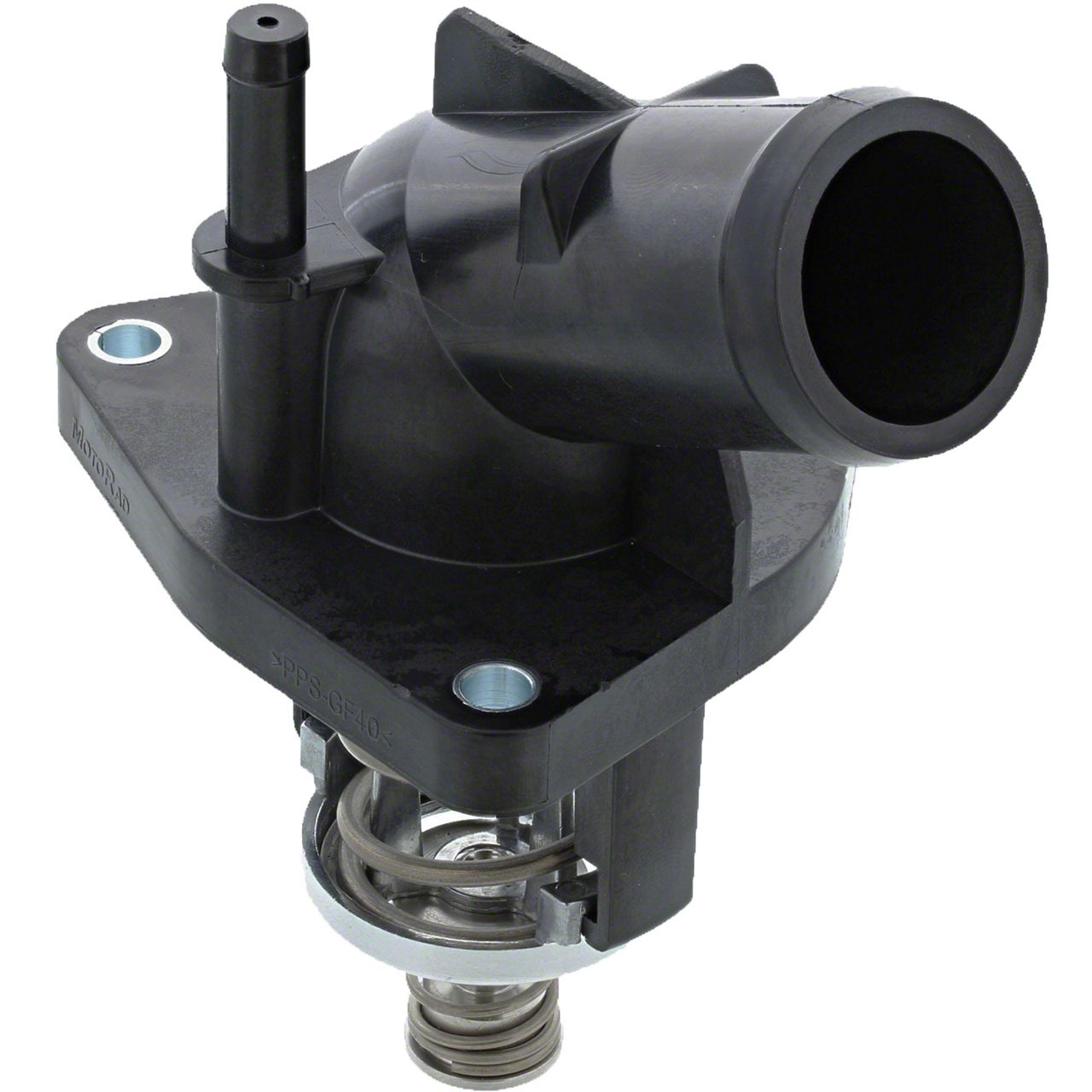

Integrated Thermostat Housing Assembly; 194-Degree (16-18 Camaro SS)Find parts that fit my vehicle
Item CC40964
Our Price
$99.99 each
Military, Medical & First Responders
$5.00 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- High Grade Stainless Steel, Copper, And Plastic Construction
- Meets Or Exceeds OEM Standards
- Consistent And Precise Response To Cooling System Needs
- 100% Tested And Calibrated
- Gasket Or Seal Material Rubber
- Seal Quantity 1
- Gasket Or Seal Included Yes
- Start To Open Temperature 194 Deg. F
- Start To Open Temperature 90.00 Deg. C
- Outlet Port Quantity 2
- Mounting Hardware Included No
- Mounting Hole Quantity 3
- Gasket Or Seal Required Yes
- Grade Type Standard Replacement
- Material Plastic, Steel, Copper
- Includes Sensor No
- Valve Type Disk
- Bleeder Hole No
- Gasket Type O-Ring
- Outlet Port Outside Diameter 0.31 In, 7.87 Mm, 1.75 In, 44.45 Mm
- Actuator Type Mechanical
- Bypass Quantity 1
- Inlet Hose Connection Type Bolt On
- Inlet Inside Diameter 2.07 In, 52.58 Mm
- Outlet Port Length 1.23 In, 31.24 Mm
- Outlet Port Inside Diameter 1.07 In, 27.18 Mm
- Terminal Quantity 0
- Inlet Quantity 1
- Flange Width 3.40 In, 86.36 Mm
- Bypass Outside Diameter 0.35 In, 8.89 Mm
- Outlet Hose Connection Type Barbed
- Bypass Hose Connection Type Barbed
- Bypass Length 0.97 In, 24.64 Mm
- Inlet Outside Diameter 2.61 In, 66.29 Mm
- Flange Length 3.38 In, 85.85 Mm
- Bolt Hole Center To Bolt Hole Center 2.80 In, 71.12 Mm, 3.02 In, 76.71 Mm
- Flange Thickness 0.41 In, 10.41 Mm
- Mounting Hole Diameter 0.25 In, 6.35 Mm
- Bypass Inside Diameter 0.08 In, 2.03 Mm
- Fits 16-18 Camaro SS
Description
Precision Cooling Component. The Integrated Thermostat Housing Assembly with a 194-degree opening temperature regulates engine temperature by controlling coolant flow based on heat levels, ensuring optimal engine performance and preventing overheating. It is a key component in maintaining the cooling system's functionality and reliability.
Construction and Appearance. Crafted from high-grade stainless steel, copper, and durable plastic materials, this assembly combines strength and resistance to corrosion for long-lasting use. It features black color components and includes an O-ring type gasket, designed with a mechanical disk valve for precise temperature regulation.
Installation. Installation is straightforward and offers a direct OEM fit replacement. The assembly includes necessary seals but does not come with mounting hardware.
Application. Designed specifically to fit the 2016-2018 Camaro SS, offering perfect compatibility with the vehicle’s cooling system without modifications or exclusions.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Thermostat Housing Assembly
