Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Switchable Front or Rear Parking System (Universal; Some Adaptation May Be Required)
Item CC16407
Our Price
$224.99 kit
Military, Medical & First Responders
$11.25 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Designed for compatibility with steel or plastic bumpers on all vehicle types
- 4-sensor system compatible with vehicles having a wheelbase of 17 feet or less
- Includes both visual and audible alerts
- Low-profile sensors come black out of the box and can be customized with automotive paint
- Adjustable volume options for audible and visual alerts
- Interchangeable for front or rear mounting
- Compatible with most vehicle types, including passenger vehicles and pick-up trucks
- ECU working voltage: 9V-16V
- ECU rated voltage/current: 12V / 1Amp
- ECU operating temperature range: -20°C to +80°C
- ECU storage temperature range: -40°C to +80°C
- Sensor operating temperature range: -20°C to +80°C
- Sensor storage temperature range: -40°C to +80°C
- Sensor detection distance: 120 cm
- Sensor waterproof rating: IP68
- Sensor mounting location: front or rear bumper
- Sensor hole size: 16 mm or 22 mm
- Buzzer mounting options: 3M tape or screws
- Buzzer volume: greater than 85db
- Buzzer volume adjustable at high, medium, and low settings

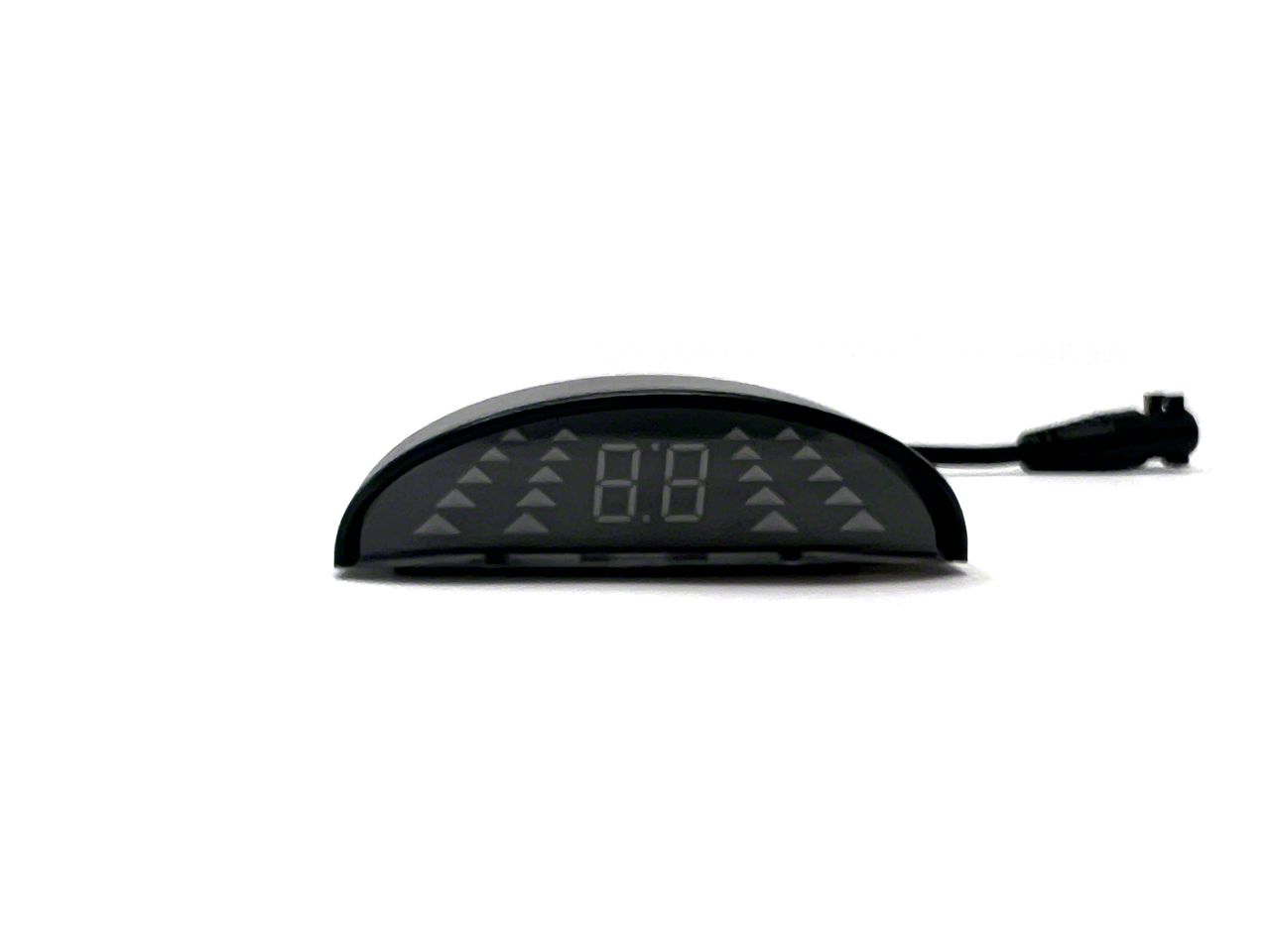

- Display mounting options: 3M tape or screws
- Display measures distance up to 120 cm
- Display brightness is fixed (non-adjustable)
- Various harness lengths included for sensors, switch, speaker, ECU, and display
- Fits universal; some vehicle-specific adaptation may be required
Description
Switchable Front Or Rear System. The Switchable Front or Rear Parking System enhances vehicle safety by providing reliable proximity detection for both front and rear bumpers. It alerts drivers with visual and audible warnings to prevent collisions while parking or maneuvering in tight spaces. This system ensures peace of mind and easier vehicle handling across a variety of vehicle types.
Construction And Appearance. The system features low-profile flush-mount sensors with a durable black finish that is customizable with automotive paint to seamlessly blend with any bumper. Sensors offer IP68 waterproof protection, ensuring reliability in all weather conditions. The ECU, buzzer, and display components are designed with robust materials to withstand harsh automotive environments and temperature extremes.
Installation. Installation involves mounting the sensors flush into a 16mm or 22mm hole on the front or rear bumper, requiring some drilling. The process is straightforward with included harnesses and mounting options such as 3M tape or screws for the buzzer and display.
Warranty. The product includes a manufacturer's warranty to ensure long-term reliability and customer satisfaction. Application. Fits universal; some adaptation may be required to accommodate varying vehicle dimensions and bumper materials.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (4) Sensors for Front or Rear Installation
- Adaptors for Changing Sensor Angles
- Installation Hardware
- Wiring Harness
- Installation Instructions
