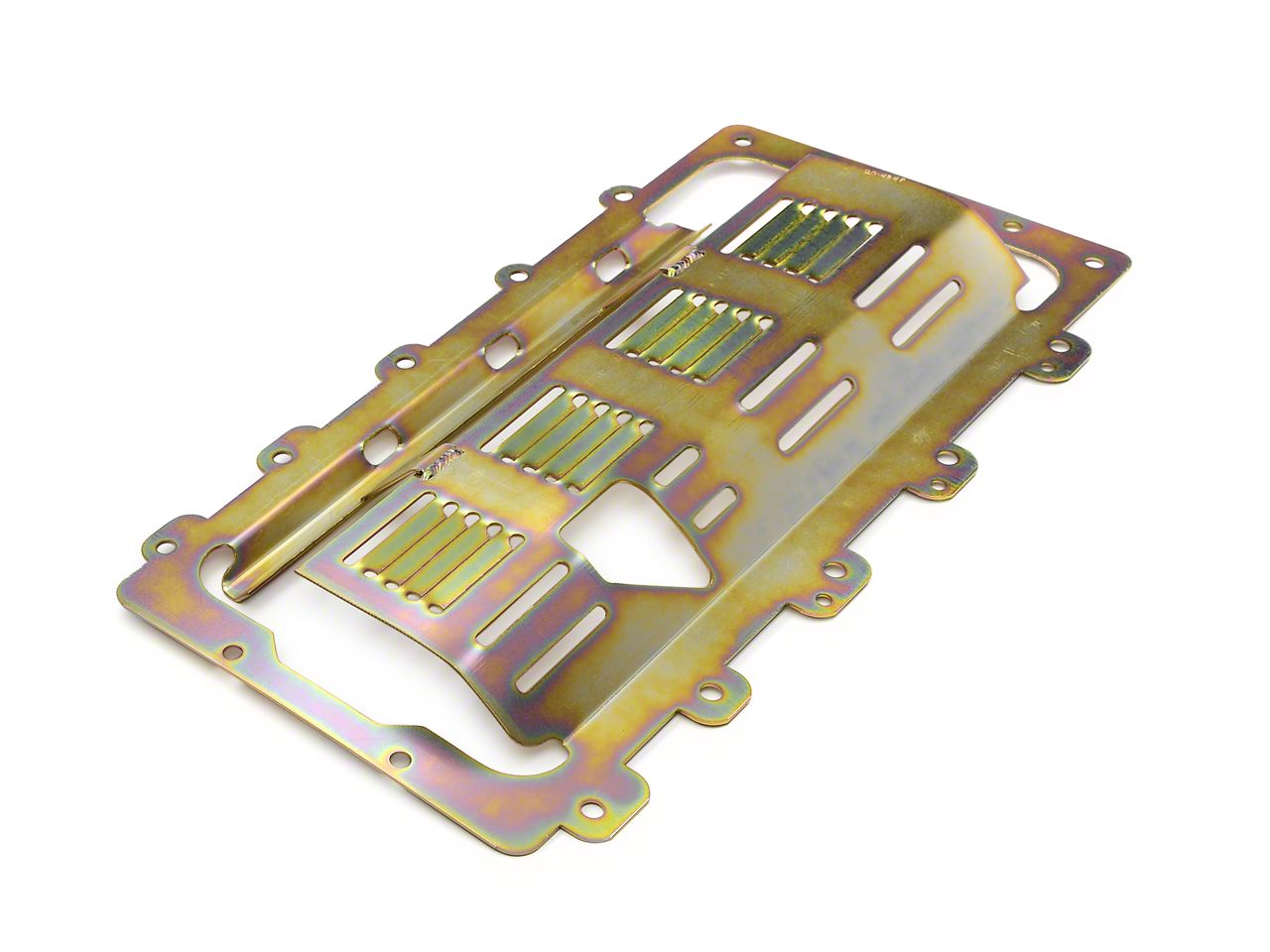

Canton Louver Windage Tray (96-10 V8)

Item 14707
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $99.60 You Save 17% ($16.60)
Our Price


FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation


      • Reduces Windage to Increase Power
      • Louvered Design Allows Oil to Drain Into the Sump
      • Gold Iridited Coated Steel Construction
      • Installs Between the Engine Block and Oil Pan
      • Fits Stock and Aftermarket Oil Pans
      • Fits 1996-2010 4.6L and 5.4L Engines


      Reduce Windage. Windage happens when oil splashes out of the sump onto a spinning crankshaft which in turn creates a swirling cloud of oil mist that causes parasitic drag on the engine. By installing a Canton Windage Tray on your modular V8 engine you can reduce windage and reclaim lost horsepower.

      Superior Design And Construction. Constructed from durable gold iridited coated steel, the Canton Windage Tray features a louvered design that allows oil thrown from the rotating assembly to drain back into the sump without splashing back on the crank.

      Application. This Canton Louvered Windage Tray is designed to fit on the 1996 to 2010 V8 Mustangs equipped with either the 4.6L or 5.4L modular engine, including the GT, Bullitt, Mach 1, SVT Cobra, and Shelby GT500 models.Technical Note. When using with a stock 4 valve Mustang pickup, the scraper on pickup must be removed for proper clearance.

      Fitment: 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 Details

      MPN# 20-939P

      CA Residents: WARNING: Cancer and Reproductive Harm -


      Customer Reviews (6)

      Write a Review

      Ratings Summary

      4.3 out of 5 overall rating from 6 customers

      • May 01, 2017

        4 2000 GT - ThePunisher

        Seems like good quailty

        Only complaint is that it wasn't flat on the block. I had to do quite a bit of bending on it to get it as close to flat as I could.

        Helpful (11)
      • January 17, 2017

        5 1999 GT - Bluegt

        Canton tray

        Great product, installed very easy! Well made and good instructions!

        Helpful (12)
      • August 19, 2016

        4 2001 Cobra - WildxHorses

        Factory oil pan modification.

        I have a 2001 Cobra with the factory Teksid. Like others have stated; modification to the pickup is necessary. I did find something possibly overlooked for my particular year cobra. In the front of the oil pan (the higher end) there are 2 factory and most likely useless crank scrapers that I had to modify to make the tray fit due to interference. I simply beat them down flat with autobody hammers on a flat vice after cutting them down the middle. GREAT PIECE FOR THE PRICE AND ALL THE NEW HARDWARE IS A MAJOR BONUS I THOUGHT!

        Helpful (12)
      • January 18, 2016

        5 2002 GT - Yoder3

        Canton Windage Tray

        Good quality piece. A little cutting on the pick-up tube is required like AM states in the product description. You'll need two oil pan gaskets. One gasket between block/tray, and one gasket between tray/pan.

        Helpful (11)
      • September 25, 2012

        3 1996 GT - VictorE

        Needed to modify

        To install this i had to cut an extra slot in the tray so that i could fit properly. The spot i cut on the tray was for an ebb on the passenger side on the block. I hate it when after market products don't just bolt up, but modifying is the name of the game, so if ur game i recommend this product.

        Helpful (12)
      • May 27, 2012

        5 2008 GT - Gil08

        Allow the oil to stay in bottom of oil pan, does not allow oil spray which causes power loss.

        The canton louver wind age tray is a great addition to my car. My supercharger causes a lot on oil splashing which in the long run robs you of horsepower. The wind age tray allows for the oil to remain in the sump and not splash up into your crankshaft, causing a drag on the motor which in return robs you of horsepower. I want all my power to go to the rear wheels, and with this product I will accomplish this. Thank you.

        Helpful (15)

      Questions & Answers (1 answers)

      1 Top Rated Question

      Differnce between this and the Moroso brand? Is this ok to use with the Moroso Oil Pan? Or should I use the Moroso Windage tray? Any differences?

      • This will fit with both aftermarket and stock oil pans. The differences will be in terms of materials used as well as the construction of the product but both will offer the same application.

      Helpful (0)
      Post Your Question

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Windage Tray
        Hardware included:
      • (16) Studs
      • (16) Nuts

      Will It Fit My Mustang

      • Bullitt - 01, 08, 09
      • Cobra - 96, 97, 98, 99, 01, 03, 04
      • GT - 96, 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10
      • GT500 - 07, 08, 09, 10
      • Mach 1 - 03, 04
