Comp Cams XFI XE-R 238/240 Hydraulic Roller Camshaft K-Kit (05-13 Corvette C6)Find parts that fit my vehicle

Item CV5418
Our Price

$1,254.95 kit

Military, Medical & First Responders $62.75 Available in AM Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • XFI Xtreme Energy-R 238/240 Hydraulic Roller Cam K-Kit For GM LS Gen III/IV
      • Xtreme Energy XE-R Designed For Larger Cubic Inch LS6 And LS1 Engines
      • Race-Only Applications
      • RPM Operating Range: 2,800-7,200
      • Cam Type: Hydraulic Roller
      • Camshaft Series: XFI XE-R
      • Usage: Street/Performance
      • Advertised Intake Duration: 287
      • Advertised Exhaust Duration: 289
      • Intake Duration at .050 Inch Lift: 238
      • Exhaust Duration at .050 Inch Lift: 240
      • Intake Valve Lift: 0.605
      • Exhaust Valve Lift: 0.609
      • Lobe Separation Angle: 112
      • Engine Family: GM LS Gen III/IV 3-Bolt 8 Cylinder 1997-2015
      • Lifter Type: Hydraulic Roller
      • Warranty: 12 Months
      • Fits 2005-2013 Corvette C6

      Description

      HIGH-PERFORMANCE HYDRAULIC CAMSHAFT. The Comp Cams XFI XE-R 238/240 Hydraulic Roller Camshaft K-Kit delivers precise valve timing and enhanced engine output designed specifically for performance LS Gen III/IV engines. This cam is optimized for larger cubic inch builds such as LS6 and LS1, primarily intended for race applications where maximizing power and responsiveness is critical.

      CONSTRUCTION AND APPEARANCE. Crafted from durable materials suited for high-stress operation, this camshaft features a hydraulic roller design that ensures efficient valvetrain operation. It is precision-ground for a smooth surface finish and reliable performance under demanding conditions.

      INSTALLATION. Installation requires moderate mechanical skill with no need for additional drilling or modifications to engine components, allowing for a straightforward upgrade on compatible LS Gen III/IV engines.

      WARRANTY. This product is backed by a 12-month manufacturer's warranty covering defects in materials and workmanship.

      APPLICATION. Specifically designed to fit 2005-2013 Corvette C6 models equipped with the GM LS Gen III/IV 3-Bolt 8 Cylinder engine, ensuring optimal performance for this vehicle generation.

      Comp Cams K54-448-11

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

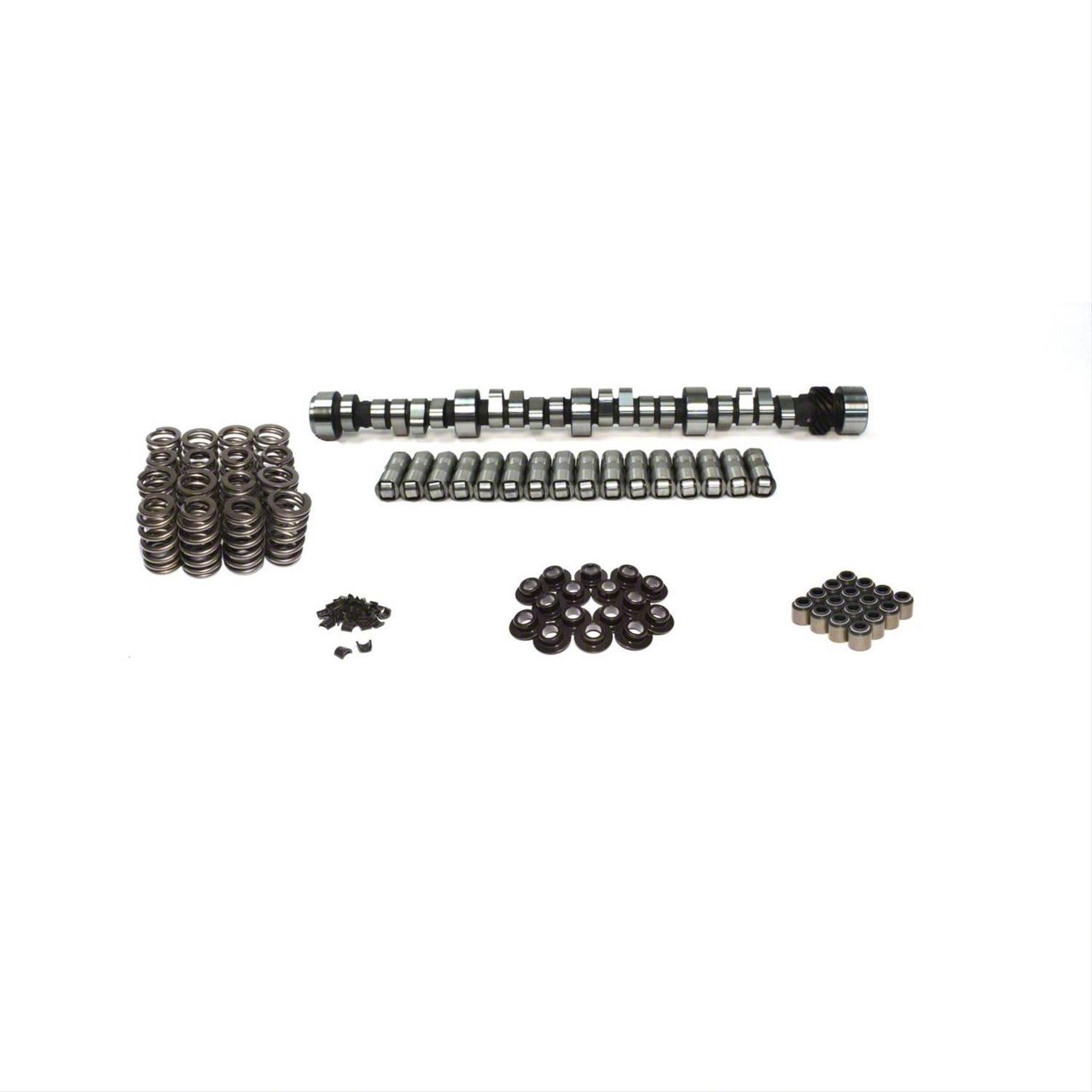

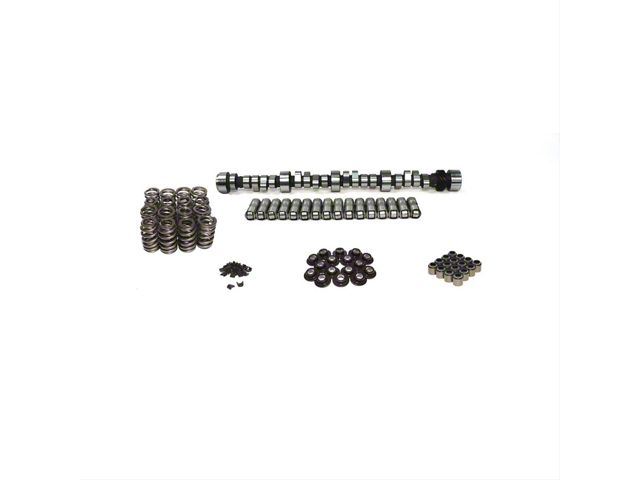

      What's in the Box

      • (1) Camshaft
      • Lifters
      • Valve Springs
      • Retainers
      • Locks
      • Valve Stem Seals
