(approx) 4 Hours
Mechanical expertise or professional installation required.
$151.37 (each)FREE Shipping

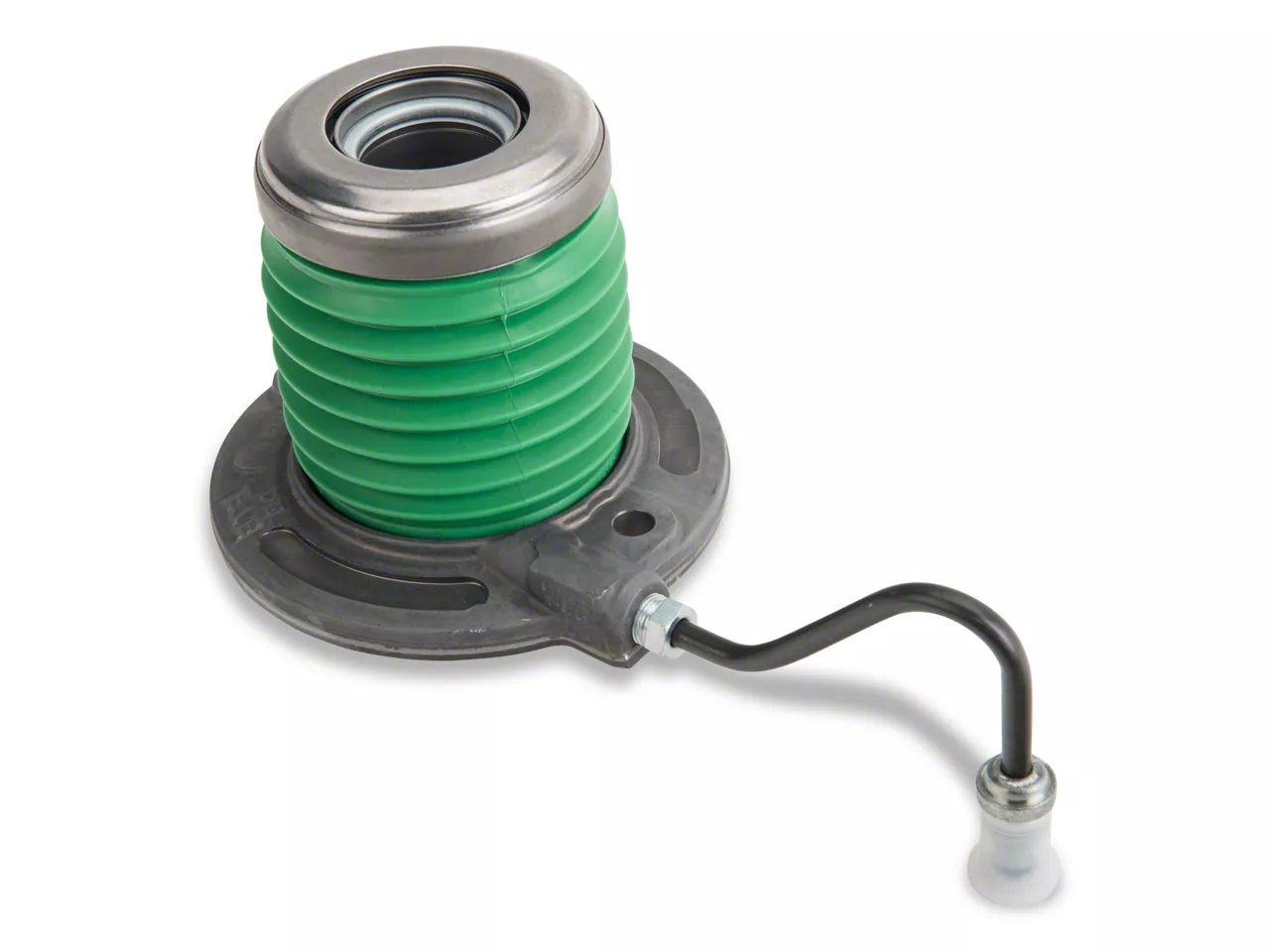

What's going on guys? Adam here with AmericanMuscle.com, and today I'm bringing you my detailed review of the Exedy Hydraulic Throwout Bearing and Slave Cylinder fitting all 11-16 GT and V6 engines. The Exedy Hydraulic Throwout Bearing and Slave Cylinder is going to be for all 11-16 GT and V6 owners who are looking to replace their old factory clutch with a new upgraded after-market clutch kit, or if you're experiencing some difficulties and wear on your current throwout bearing that are causing some issues with your gear engagement. Now, before you can look into buying a new hydraulic throwout bearing and slave cylinder, especially like this one from Exedy, it really helps to understand its function. The hydraulic throwout bearing and slave cylinder is a huge part of the clutch engagement. You can kind of say it's the whole heart of the operation. In a nutshell, when you press on the clutch pedal the throwout bearing presses in the pressure plates release fingers, disengaging the clutch, allowing you to change gears. You'll know it's time for a new throwout bearing or slave cylinder for your 11-16 GT or V6 when you're having trouble changing gears, if you're hearing a squealing noise coming from your transmission, or if you're noticing the one you currently have is leaking fluid or has an air leak. Another time it's highly recommended to upgrade your throwout bearing and slave cylinder is when upgrading from the OEM clutch to a new after-market clutch kit. Now at that point, you would want to upgrade to something like the Exedy throwout bearing and slave cylinder, because it's built to handle the extra force needed to operate the upgraded clutch. Now, if you decide not to upgrade your throwout bearing and slave cylinder when you upgrade to a new after-market clutch, you'll realize after a while you'll have rough clutch engagements and even eventually complete failure of your stock throwout bearing, at which point you'll have to drop your transmission and upgrade the whole new throwout bearing. The Exedy Hydraulic throwout bearing and slave cylinder I have here today is a more heavy duty application built to handle the upgraded clutch and flywheels for your vehicle, in which case you don't have to worry about it failing with a tougher clutch applications, and overall it's more reliable part. Now, since the market isn't exactly full of hydraulic throwout bearing and slave cylinder options, and since Exedy pretty much eats, sleeps and breathes everything clutch related, the $180 you'd be paying for this is pretty reasonable. The installation for this part is going to be pretty extensive and will require mechanical expertise. It will require you to drop the transmission, so if it's not something you're comfortable with I'd highly recommend you taking it to a professional, just to get it done safely. Now, if you are the kind of pony owner that likes to do everything hands on, you can expect to be spending a few hours doing this, especially if you decide to swap out your clutch and flywheel while you've got your trans out. It's always recommended. For this installation, swapping the hydraulic throwout bearing and slave cylinder out with this Exedy one is only going to take a couple of minutes. It's dropping the trans that's going to be difficult and time-consuming. With that said, I definitely give it three out of three wrenches on the difficulty scale, leaving this task for one of the pros. Just to quickly wrap things up guys, if you're an 11-16 GT or V6 owner experiencing some difficulties with your throwout bearing, or if you want to just swap yours out while doing the clutch and flywheel, this here Exedy hydraulic throwout bearing and slave cylinder is available right here at AmericanMuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 4 Hours
Mechanical expertise or professional installation required.
What's in the Box
March 29, 2020
Throw out bearing
Ordered the throw out bearing and clutch a head of time so I could make sure the boot wasn’t ripped on it, had it installed and haven’t had a problem with itHelpful (3)
March 28, 2020
We installed this part and after couple days of the part being installed the part broke into piecesHelpful (4)
January 28, 2020
Working as should
Seems to be working as it should. Wish I done it soonerHelpful (3)
December 23, 2019
Came with tear
Unfortunately the boot came with a tear in it. Disappointed, first time let down by AM. Easy to install only two bolts.Helpful (3)
September 08, 2019
Needed this when my clutch was burnt out. Really great for the price I had it for. Great fit easy installHelpful (3)
August 14, 2019
Came with a tear in the boot.
Product came with a tear in the boot. Felt cheap. Noticed a noise from the transmission after install. Not sure if it's a bad throw out bearing or input shaft bearing. I would of contacted AM but I didn't notice until 6 months later. I didn't get the chance to install it until then.Helpful (4)
May 18, 2019
Very similar to the stock one but gets the job done hopefully it last longHelpful (3)
February 19, 2019
Bought this item with the exedy clutch. Paired it up with mchleod flywheel. Only problem was it does not fit 18-19 gt. I swapped out my 18 tranny for a 17 gt manual do to 18 transmission problems on 2018 gt. Item holds up good power and will recommend if pushing serious whp.Helpful (4)
January 11, 2019
Ordered slave cylinder
Arrived quick and it was very inexpensive. Everything looks good!Helpful (7)
August 21, 2018
Had to return for a replacement
Got a brand new throw out bearing and had a tear in the rubber...Helpful (8)
Will this work with a T56 Magnum XL?
The Exedy Hydraulic Throwout Bearing/Slave Cylinder was designed for use with the MT82 Transmission. Depending on how your T56 conversion was done, this may be compatible. If you are using a stock or stock style throw out bearing, you should have no issues, however if any changes were made for clutch actuation with the swap, this will not be compatible.
Does this item fit the mustang ecoboost The clutch Is stage five from SPEC
Hello! I do apologize but this Exedy Hydraulic Throwout Bearing/Slave Cylinder only is compatible with V6 and GT model mustangs, it is not compatible with the ecoboost.
Will the excedy throw out work with the spec stage 3, 6 puck? Or should i go with the mcloid t/o bearing?
Hi, This throw out bearing is compatible with any clutch with the original factory specifications.
Hello, could you tell me what master cylinder they request you use for this?(bore and stroke) I building a 89 mustang with a gen 2 coyote and mt82 trans. And need to make a clutch pedal for this. I’m planning on using wilwood master cylinder and clutch pedal. Thanks for any help
Just to re-confirm , Will the Exedy Throwout Bearing\Slave Cylinder fit on a 2018-2019 Mustang GT ?
The Exedy Hydraulic Throwout Bearing/Slave Cylinder is not an OEM Ford replacement part. However, this Slave Cylinder/Throwout Bearing will function and perform almost identically to the original Ford equipment.
This hydraulic throwout bearing will fit all 11-18 GT/11-17 V6 Mustang models with an exedy clutch or factory clutch installed.
The instructions for bench bleeding the Exedy Hydraulic Throwout Bearing/Slave Cylinder can also be found on Exedy's website, linked below: http://www.exedyusa.com/tech-support-faqs/tech-sheet-inserts/Tech-Sheet-Insert-CSC-Bench-Bleed/
Hi, This Exedy Hydraulic Throwout Bearing/Slave Cylinder can be used with a SPEC stage 2 clutch and most clutch kits unless otherwise specified by the clutch manufacturer.
In most cases with transmission pieces it is recommended to stick with the same manufacturer however, the Exedy Hydraulic Throwout Bearing/Slave Cylinder (11-17 GT, V6) will be able to work with the Spec Stage 2 Clutch (11-14 GT) item #60036 (www.americanmuscle.com/spec-stage2-clutch-1112gt.html).
Yes, this is a direct replacement. This product is a must have when replacing your clutch and flywheel. I would also recomend replacing the pilot bearing with a Ford Racing one.
Exedy is the manufacturer of the stock throwout for Ford, so this will work. Trust me I've bought both and stock has Exedy stamp
Fits Manual Mustangs only
