(approx) 4 Hours
Mechanical expertise or professional installation required.
- Customer Submitted:
- Ford Racing Mustang C-Springs Installation Guide (1979-2004)
Hey, what's going on guys? Adam here with americanmuscle.com. Today I'm bringing you a detailed overview and installation of the Ford Performance Lowering C-Spring, which is available for all '79 to '04 GT, V6, and Mach 1s, as well as all '93 to '98 Cobras, both Coupe and Convertible. So in this video, I'll be going over the drop you can expect when adding these lowering springs to your Mustang, as well as all the performance benefits as far as handling is concerned when you do get them installed. I'll top the video off with that installation which I'll let you know upfront here, gets a two out of three wrenches on our difficulty meter. Not the hardest job in the world, but it does take a little bit of know-how to get done, and of course, caution and patience.So, the Ford Performance Lowering C-Springs will be for any '79 to '04 Mustang owner who is really looking to get a more aggressive stance as far as drop is concerned. This obviously doesn't give you the biggest drop in the world, which I'll touch on in just a second, but it's, more importantly, to pick up the aggressive standard suspension handling performance that goes along with the C-Spring from Ford Performance. Now, of course, there are a number of benefits that come along with lowering your Mustang. Now, of course, when you lower the center of gravity, you're greatly improving the handling performance and suspension performance on your Mustang, while also getting a more aggressive stance, a more muscle car look, depending on how low you go.Now, this particular set we have here from Ford Performance, the C-Springs doesn't give you the lowest drop in the world, but you do get a slightly more aggressive stance with it. So, the first thing I wanna touch on here, of course, is going to be how low exactly are you taking your Mustang when adding the C-Springs to your own Fox Body? Now, the Fox Body, the SN95, and the New Edges all have different drops depending on which body style you have. So, the first thing I wanna touch on of course is the Fox Body. Now, from '79 to 1993, you can expect a seven-eighths of an inch drop in the front and a half inch drop in the rear. Not the biggest drop in the world, but it does lower the center of gravity just a little bit, so of course it will improve the suspension and handling performance of your Mustang. So, next up, of course, is going to be the SN95 and the New Edge Mustangs. For those body styles, you can expect to be getting one and one-eighth's of an inch drop in the front, and three-quarters of an inch in the rear. Again, also not the biggest drop. It's a little bit more than the Fox Bodies of course, but either way, no matter what body style you have, you can rest easy knowing that this will all clear all the factory wheels, and of course aftermarket wheel and tire combos, you would have gotten on the American Muscle website. So, when you're shopping around for lowering springs for your own Mustang on the AM website, you'll notice Ford Performance has a couple of different options as far as the letters are concerned. We have C-Springs here, but they also offer B-Springs and G-Springs on the AM site, and although they have slight differences, they might not be so obvious when you're shopping around for yourself. So, I'm gonna give you an explanation here just to clarify things a little bit further. So, I'll start with the G-Spring simply because they are the easiest to differentiate. Now, the G-Springs from Ford Performance will give you a half-inch drop in all four corners, whereas the C-Springs and B-Springs will give you exactly what I mentioned earlier in this video.Now, the C and B-Springs from Ford Performance are only gonna be differentiated simply off of the spring rate. Now, the spring rate for the C-Springs we have here will be standard, and the B-Springs that are offered on the website will be a progressive spring rate. Now, although the C-Springs and the B- Springs from Ford Performance had the same ride height drop, they will react differently in different driving situations. So, the B-Springs that Ford performance offers has that progressive spring rate which basically means, under normal driving conditions they'll be a very comfortable ride, nothing too crazy, something perfect for a daily driver, or a commute to work. Now with that said, it will also react very differently under hard driving situations. Once you take a hard turn or something like that, it'll compress and stiffen up to adapt to that situation. Progressive spring rates are typically really used for daily drivers and weekend warriors, and something of a light strip usage as well. You might not be taking it to the track very often, in which case progressive springs might be for you. Now, on the other hand, the C-Springs we have here have a standard spring rate. Standard spring rate it's basically linear, so it doesn't adapt to the different situations, it stays the same throughout all driving conditions. Now, although this is a very good for the street, it's really geared more for the track or harder driving situations which allows a driver to accurately or more accurately predict how the springs will react in certain driving situations. Honestly, it all just comes down to how you want your springs to react whether you want it to be predictable like the standard spring rate, or if you'd like it to adapt a little bit further like the progressive. Now that you've got a little bit more of an understanding on the progressive spring, the standard spring, the B, the C, the G, all the other options that Ford Performance offers, let's talk about the price tag because it definitely comes into play when you're picking out your lowering springs. Now, the Ford Performance C-Springs that we have here with the standard spring rate come in just north of the $150 mark. My personal opinion, a more affordable option there for your ride. Not too much of a drop, so there really isn't too big of a price tag there.Now, the B-Springs come in with the progressive spring rate, just a little bit higher at the $200 mark and the G-Springs if you wanted to go with that to get the bigger drop that will come in a little bit higher at the $220 mark. Altogether, it comes down to what you expect in ride height, and ride comfortability as far as spring rate, so you wanna make sure you're checking it out when you're looking on the site. Now, the good thing about almost any spring on the market for your Mustang for at least the '79 all the way up to the 2004 Mustangs, the installation pretty much stays the same. And when we're talking about the install, it's not the hardest job in the world, but it does require a little bit more know-how, at least a little bit more caution, and if you have a helping hand on deck that will definitely make the process go smoother.As far as tools are concerned, you wanna have a ratchet and a simple socket set on deck, as well as a pry bar to get those factory springs out, which might give you a bit of a fight. And definitely, jack and jack stands, or if you have a lift, that makes it a hell of a lot easier. As far as timing is concerned, about two hours start to finish on the install, maybe a bit more if you need a little bit more time, but overall, gets a two out of three wrenches on our difficulty meter. Now to kick things off, we'll start with the rear, because it is a little bit easier, one less step to take care of. All you'll have to do is jack up the car and of course, remove one of those wheels. Now at this point, you wanna place the jack under the rear differential pumpkin, and jack that up to relieve the pressure off the shock bolts. Once you take care of that, you can undo the bottom shock bolts of course, and then slowly, and I mean slowly, lower down that pumpkin on that jack, and this will relieve the tension on the lowering spring in the back. Once that spring is out of place, you can put in the C-Spring from Ford Performance into its place, and redo that process in the opposite order, jacking up the differential, of course, re-bolting that shock, putting the wheel back on, and dropping the car on the ground.The front process is going to be extremely similar. There's only one more step involved here. So, of course, you're gonna have to jack up the front end of the car, remove the wheel, and then you wanna support, instead of the differential pumpkin, you wanna support the lower control arm. Once that's taken care of, you wanna unbolt the sway bar end link, unbolt the bottom of the shock tower, and then, of course, you're gonna have to remove that spring. Now, removing the spring, you wanna be safe and secure as just as you were in the back, slowly lowering down that lower control arm, in order to get that spring out.Again, a pry bar might be necessary, but once it's out, repeat the process in the opposite order using the C-Springs, and you'll be good to go. Overall, about two hours or so on the install, two out of three wrenches on our difficulty meter. Just to wrap things up guys, if you're the owner of a '79 to '04 Mustang, you might be looking to pick up a set of lowering springs to get a more aggressive stance on your pony, as well as improving the center of gravity or handling performance. If you're looking at a standard spring rate, you might wanna check out the Ford Performance C-Springs which I have here, which are available at americanmuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Technical Note. These springs will not fit 1999 to 2004 SVT Cobra's with Independent Rear Suspension (IRS) or GT Mustangs converted to IRS.
Fitment: 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details
Ford Performance M-5300-C
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
May 06, 2020Helpful (0)
March 19, 2020
Great kit for the price lowered my 85 about an inch all the way around . Vastly improved the ride and handling over the stock springs . Previous reviews complain about the harshness of the stiffer spring but I have had no issues paired with polyurethane isolators . I would highly recommend these for any foxbody project .Helpful (1)
January 08, 2020
96 svt cobra
El producto es muy bueno de muy buena calidad y fácil de instalar y queda perfecto el carro etcHelpful (1)
November 21, 2019
they aren't for my mustang
the website told me they would "fit" which they do but they are designed for a 5.0 not a 2.3 which is significantly lighter than the 5.0 so no i have to sell them unless american muscle is willing to take a return from months agoHelpful (3)
October 21, 2019
good for the price. lower just right. not to harshHelpful (1)
August 26, 2019
These springs are a good buy if your looking to improve ride quality. It drives like a totally different car. They really tightened everything up and makes the car hug the road alot better. However if your looking to lower your car substantially then these probably aren’t the springs for you. From my personal experience these did not noticeably lower my 04 mustang that much. While im sure it did bring the center of gravity down some, it sure doesn’t look much different. If anything it drops the wheel gap in the front to match the rear. But overall im still very happy with the ride and the look.Helpful (3)
June 19, 2019
stance is right where i wanted to be with these, ride is alot better as wellHelpful (1)
May 26, 2019
I installed these on my 89 LX and its a nice firm ride. I like the height and stance of my ride now.Helpful (2)
May 03, 2019
Very good product high quality material and built to last.Helpful (1)
March 07, 2019
Not low enough. Drop is minimal.,..............................Helpful (4)
What is difference between C and B springs from ford racing?
While C-Springs and B-Springs have the same drop, the difference between the two are their spring rates. C-Springs are Standard Rate Springs, which means they are at a constant rate and won't vary while driving. These are better suited for those looking strictly for the performance gains and don't mind a stiffer ride. B-Springs are Progressive Rate Springs, which means the spring gets firmer as it gets compressed. These springs are great for daily street driving, keeping a more comfortable ride.
Will I need to buy a aftermarket caster camber plates for these springs?
The Ford Performance Lowering C-Springs will not require caster camber plates due to their small drop they offer.
What are a good match of shocks and struts for these springs?
Most shock and strut kits will work with these springs. I generally recommend the KONI orange as they are the best bang for your buck in terms of quality: https://www.americanmuscle.com/99-04-shock-strut.html.
If I get these on my 2001 v6 can I still get it aligned ?
The Ford Performance Lowering C-Springs will lower your car, but should still allow your Mustang to come into alignment without additional components.
Will these work with BMR front control arms with standard ball joint?
These springs will work yes.
The Ford Performance Lowering C-Springs will fit a 94 Mustang GT Convertible.
Hey Dave, That eibach number seems to have been discontinued or a spring no longer available, so i do not necessarily know the spring rate or drop it gives. Usually Eibach is a more aggressive drop than Ford springs so if you are having clearance issues because the car is too low the Ford springs should remedy that for you by giving you a little extra space!
You will be perfectly fine with the wheel and tire set up with these lowering springs. You should not have any clearance issues.
These springs are only sold in a kit of 4.
These springs are only sold in a kit of 4.
These springs will improve your handling because it will lower the center of gravity. Since there is a new and lowered center of gravity, the traction of the wheels will change these springs will cause a caster/cambered stance which can be corrected with the purchase of caster/camber plates which can also be found on our website right here. (http://www.americanmuscle.com/mustang-caster-camber-plates-9904.html).
The Ford Performance Lowering C-Springs - Coupe & Convertible (79-04 GT, V6, Mach 1; 93-98 Cobra) will fit fine with the 20 inch wheels you have! I would not go anymore then a 1.25 inches with the 20 inch wheels.
The estimated drop is assuming your isolators are in good condition, if not I would recommend purchasing SR Performance Polyurethane Spring Isolators Item #56054 (http://www.americanmuscle.com/bbk-front-isolators-7904.html)
Unless the shocks and struts specify otherwise, the Ford Performance Lowering C-Springs - Coupe & Convertible (79-04 GT, V6, Mach 1; 93-98 Cobra), and any lowering spring for that matter, should be compatible with any shock and strut you may use.
Lowering the car any amount will affect camber in the front alignment. Tire wear will be noticeable in a short time so get it aligned asap!
(approx) 4 Hours
Mechanical expertise or professional installation required.

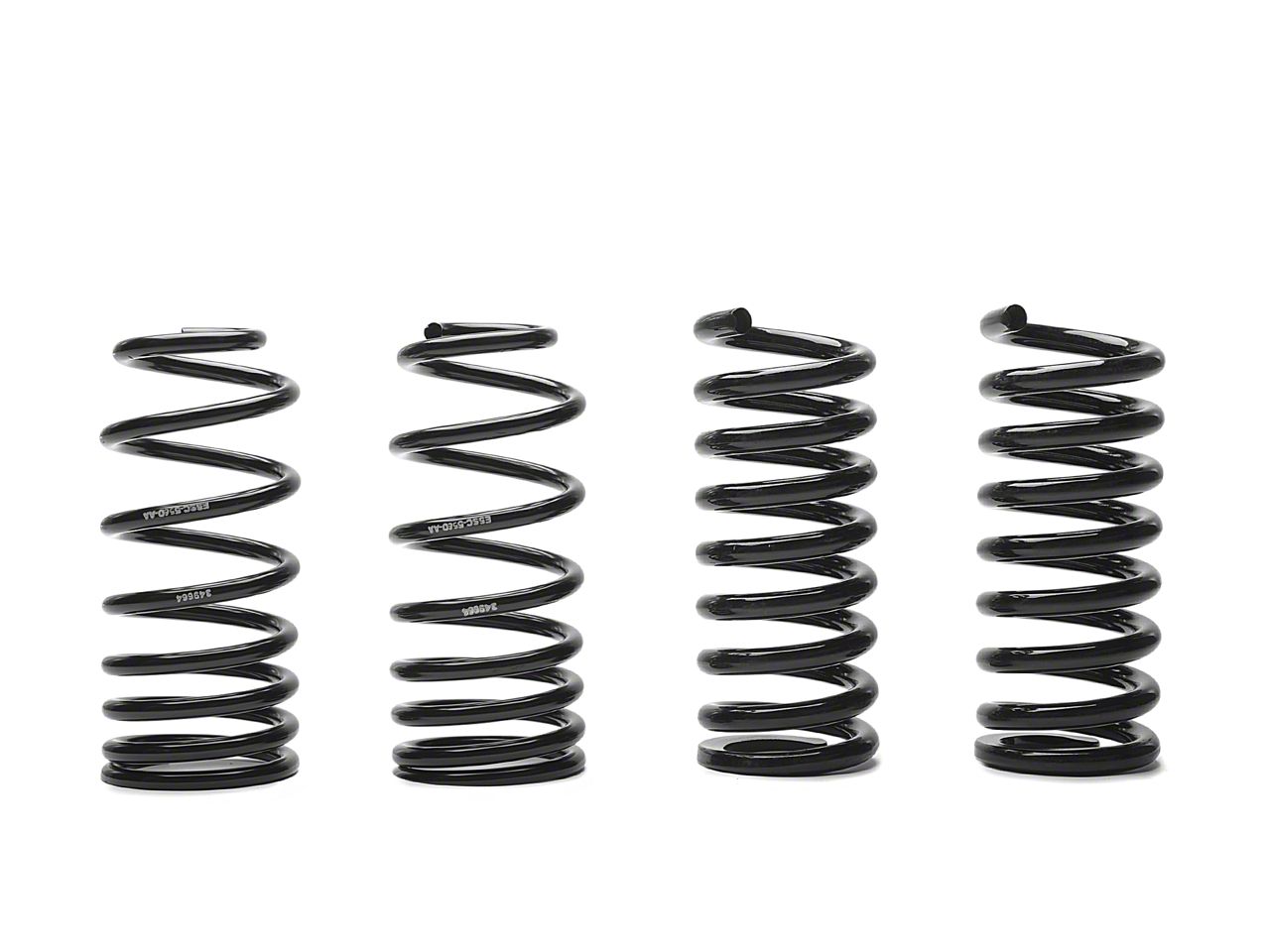

What's in the Box
|Spring Rate:||Front: 650 lb/in. |
Rear: 200-300 lb/in.
|Year:||1979-2004||Model:||All except IRS Cobra's|
|Progressive or Standard:||Standard||Estimated Drop:||1979-1993: 7/8"F / 1/2" R |
1994-2004: 1-1/8"F / 3/4" R
Does not fit 1999-2004 SVT Cobra's with Independent Rear Suspension (IRS)
